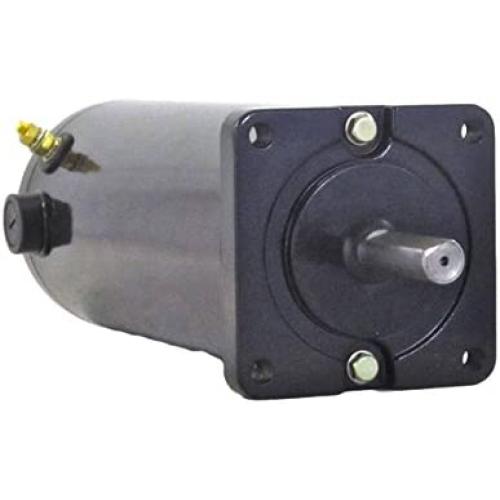

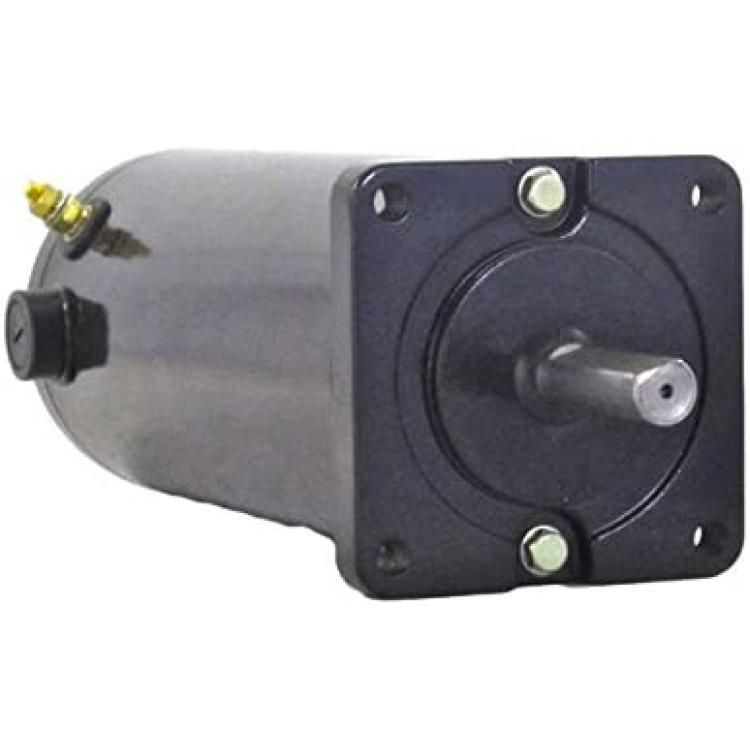

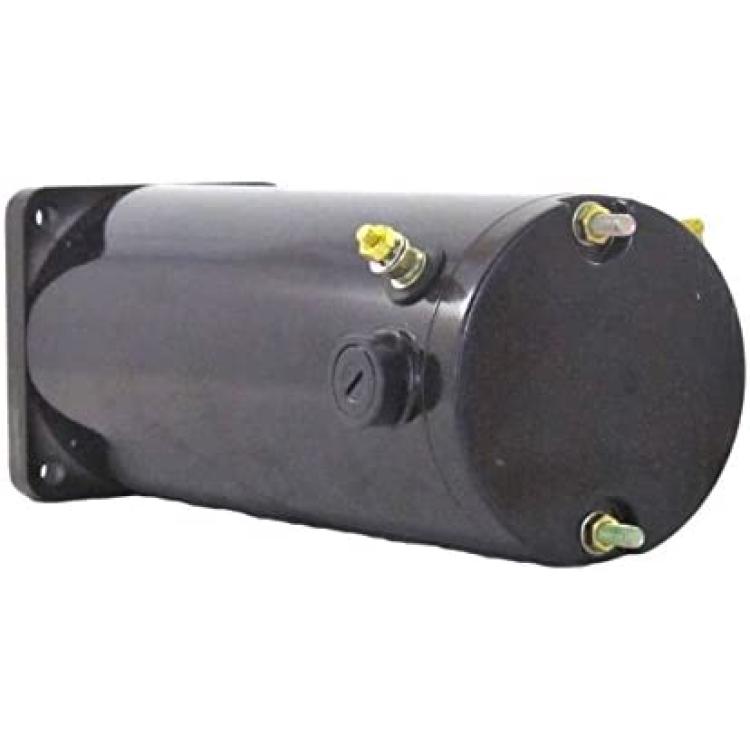

Rareelectrical New Salt Spreader Motor Compatible With Western Fisher W-8815 By Part Numbers 64953 69616787209 1220182 1220182H 1409019 3012200182 3012201820 801220182H 301220182H 3D-1220182H

RAREELECTRICAL BRAND COMPATIBLE WITH CASE, FISHER, MAN

064953, 65061, 65416, 022-064953-7-022, F9524, F9524A, 069616787209,
06961678, 054-94-1242-0434, 05494124204345061, 107974490221, 1220182, 1220182H, 1409019, 3012200182, 3012201820, 801220182H, 301220182H, 3D-1220182H, 3D1220182, 3D12201828, W-8815

VOLTAGE: 12
AMPS: 32
ROTATION: REVERSIBLE
FIELD HOUSING OD: 83MM / 3.268IN
FIELD HOUSING LENGTH: 177.5MM
END OF UNIT TO MOUNTING BRACKETS: 200MM
OVERALL LENGTH: 257MM / 10.118IN
SHAFT OD: 12.7MM / 0.500IN
SHAFT LENGTH: 1 3/4IN
SHAFT NOTES: SINGLE FLAT SIDE FOR SET SCREW
TERMINAL 1 SIZE: 10-32
TERMINAL 2 SIZE: 10-32
NEW OR REMANUFACTURED: NEW
APPROXIMATE WEIGHT: 9.9 LBS / 4.50 KG

NOTES:
(4) 5/16-18 THREADED MOUNTING HOLES, OE MOTOR RATED AT 1/3 HP-THIS MOTOR IS 1/2 HP

WITH SEALS AND 0-RING TO HELP KEEP THE WATER OUT
3 DIAMETER CASE;
PERMANENT MAGNET MOTOR

APPLICATIONS

PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.

WESTERN, FISHER SALT SPREADERS
