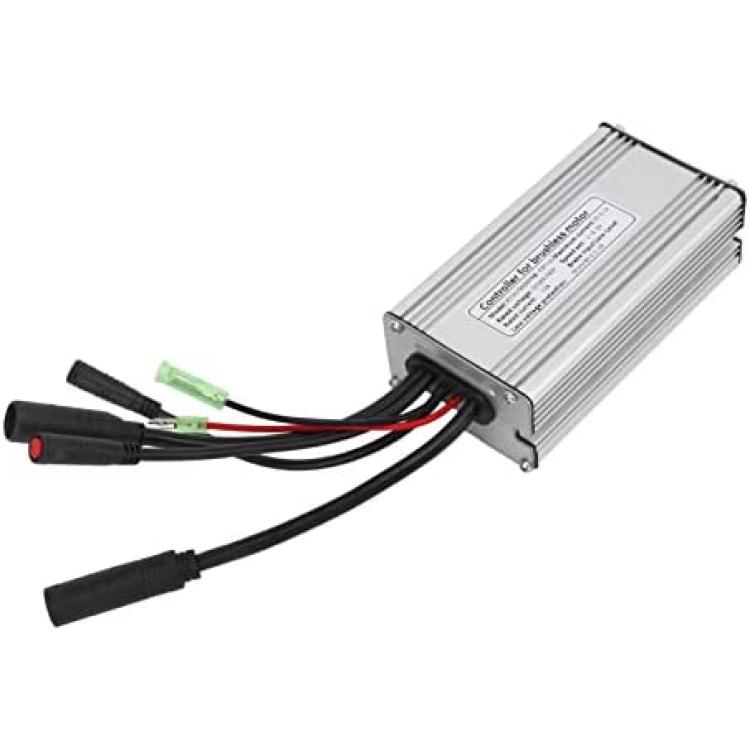

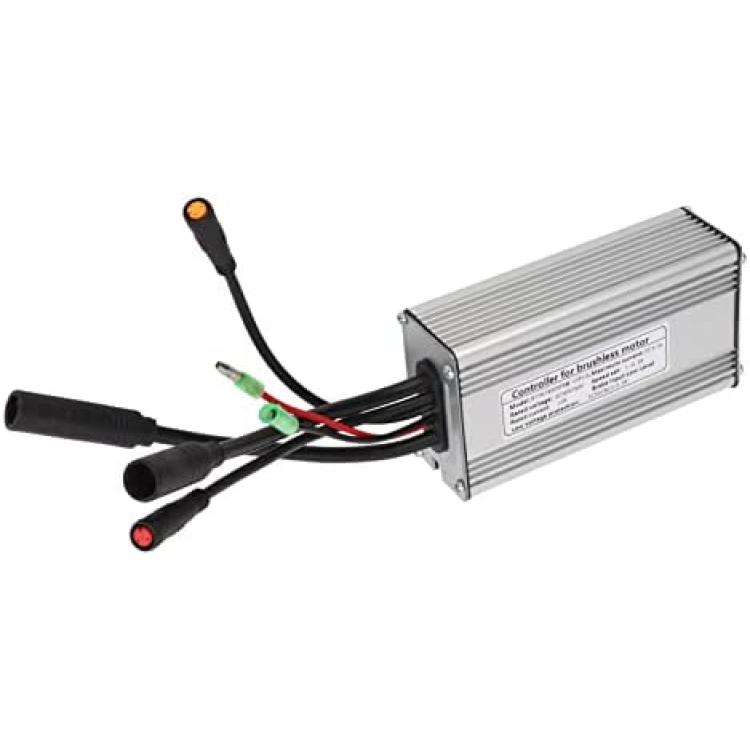

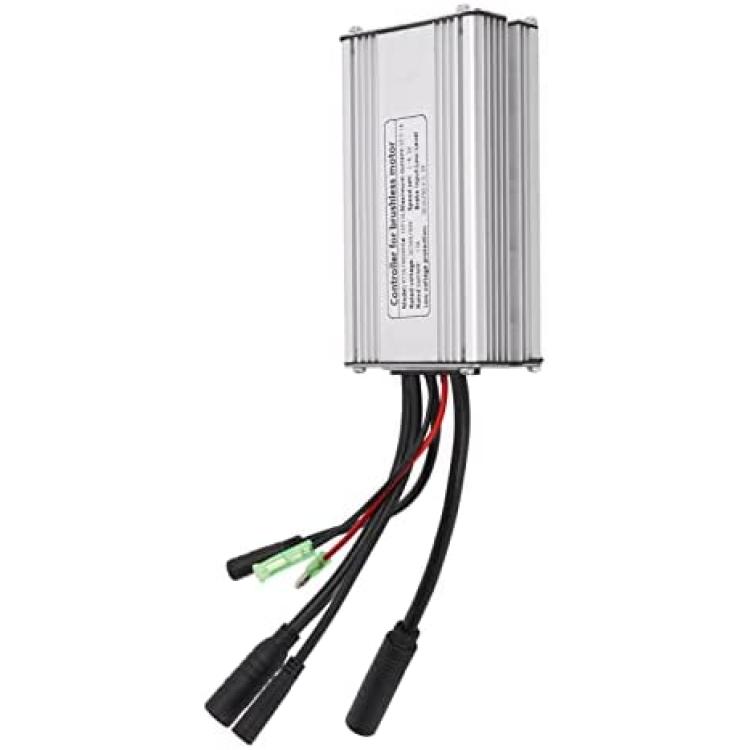

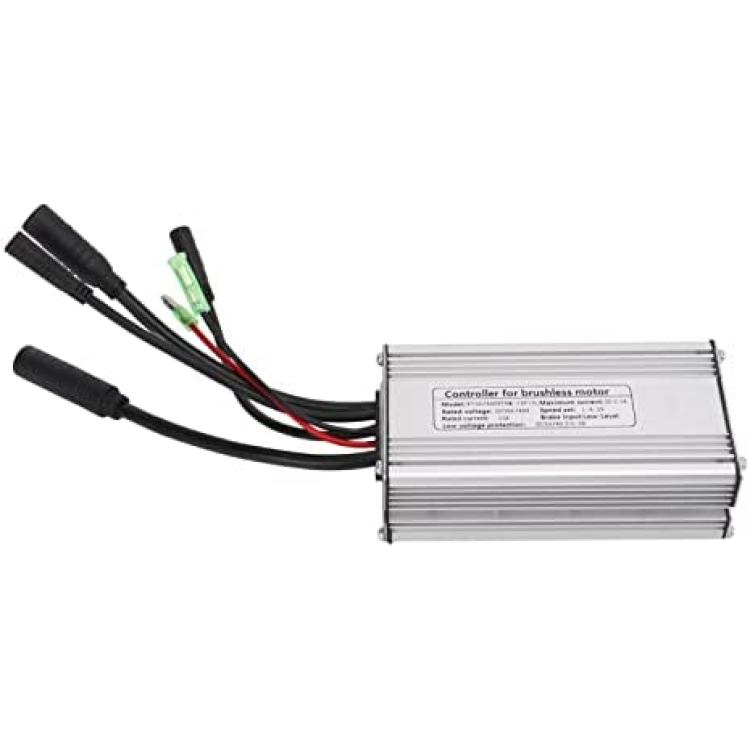

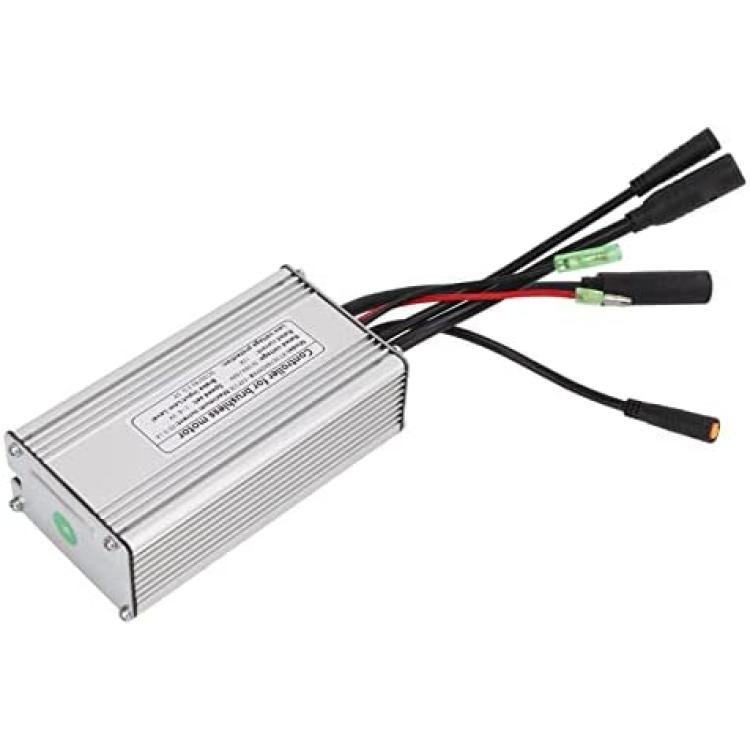

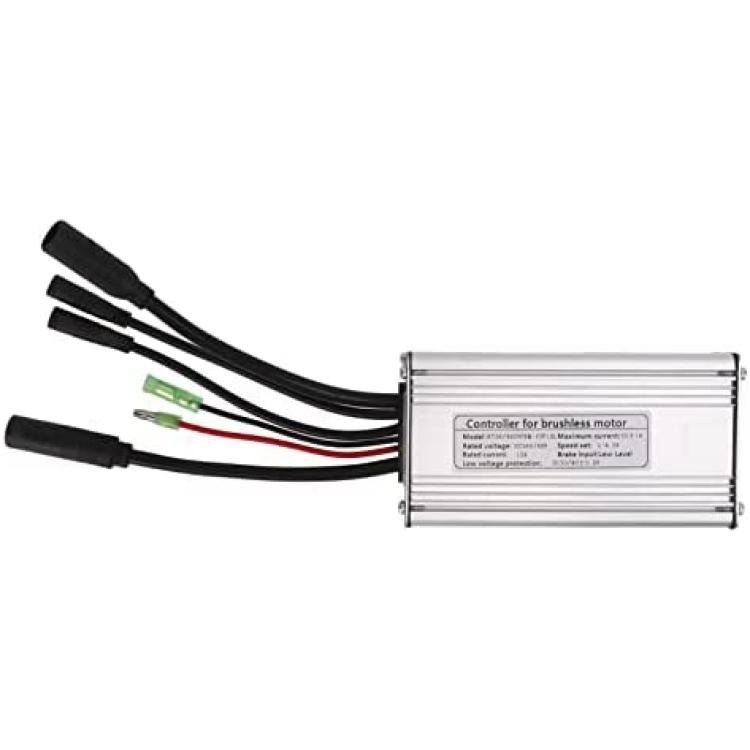

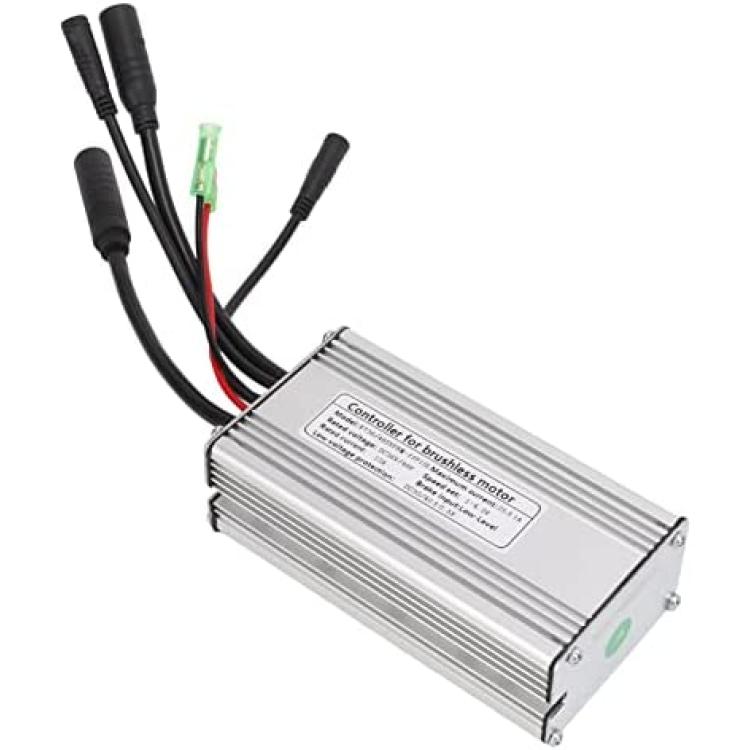

Vifemify Bike Brushless Controller,36V/48V 25A Sine Wave Controller Waterproof Electric Brushless Motor Speed Controller with Light Line for 750W Motor
About this product
*The motor controller uses high-quality materials, which are lightweight, waterproof, sturdy and durable, and can be used for a long time. It can internal circuit and facilitate heat dissipation to avoid thermal overload.
*Provide Stable Speed: The brushless motor sine wave controller can provide stable speed and sensitive braking and direction change control, providing you a good using experience.
*Waterproof Connectors: Fully waterproof connectors ensure maximum durability in any weather conditions. High performance wires and waterproof interfaces are durable, ensuring low failure rates for long term use.
*Applicable Model: Sine wave controller needs to be used in conjunction with products that are consistent with the communication protocol and is only compatible for KT series instrument products.
*If you have any questions, please contact us in time.
Description
Specification:
Item Type: Sine Wave Controller
Color: As Picture Shown

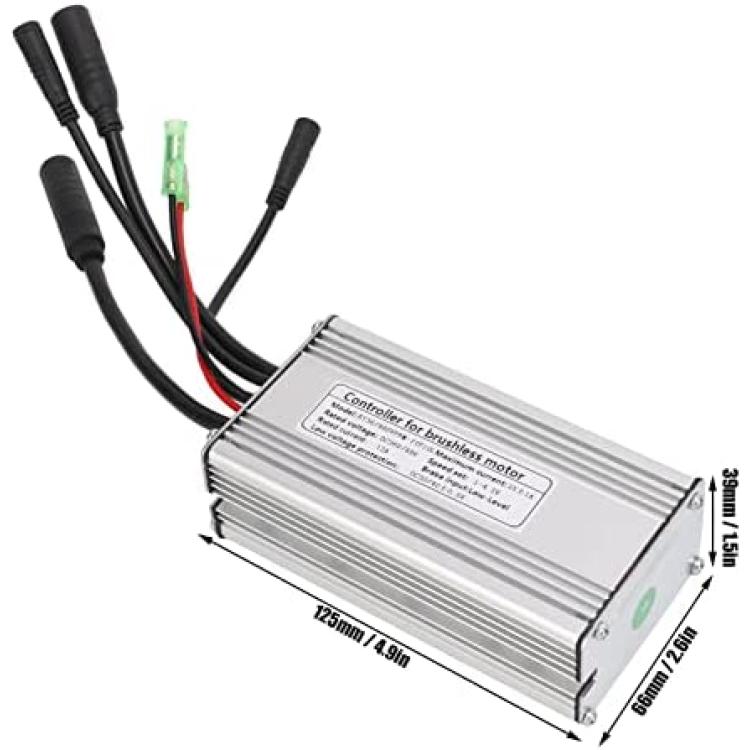

Material: Aluminum AlloyWeight: Approx. 420g / 14.8ozController Box Size: Approx. 125x66x39mm / 4.9x2.6x1.5inController Type: Sine Wave Controller
Connector Type: Waterproof Connector
Maximum Current: 25±1A
Rated Voltage: DC 36V / 48V
Speed Setting: 1-4.2V
Rated Current: 12A
Brake Input: Low Level
Low Voltage Protection: DC 30/40±0.5VApplicable Motor: Usually 750W Motor
Controller Wire Color Definition:
1. Black Long Wire: Motor Wire
2. Red and Black Single Big Wire: Power Cord3. Black Long Wire (Fine Hole): One for Four/One for Five (9 Cores)
4. Black Line and Red Head: Light Line
5. Black Wire and Yellow Head: Power Assist Sensor Wire
Package List:1 x Controller1 x ManualÂ
Note:It needs to be used in conjunction with products that are consistent with the communication protocol. It needs to be used with a sine wave brushless motor. It is only compatible for KT series instrument products. The motor does not need a brand, and the connector can be used.
