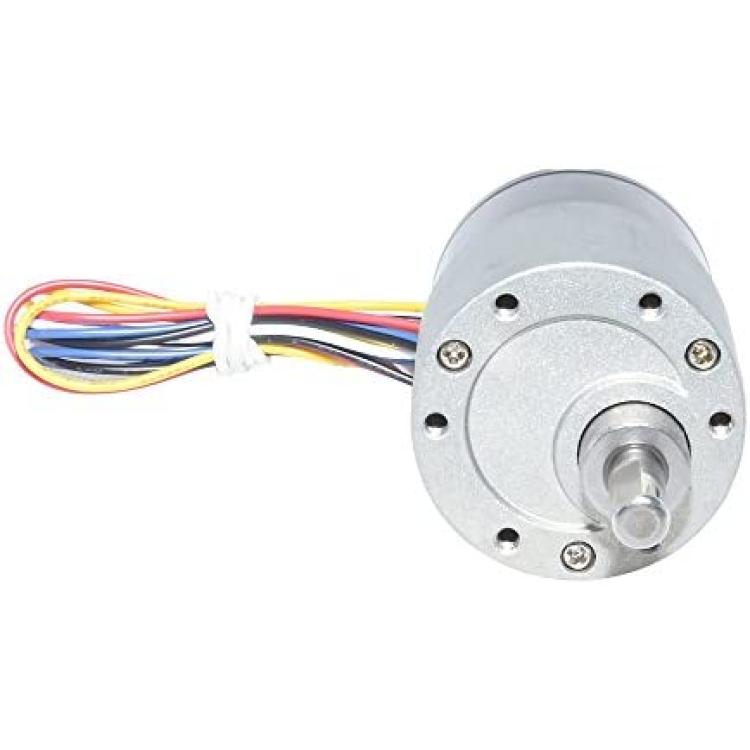

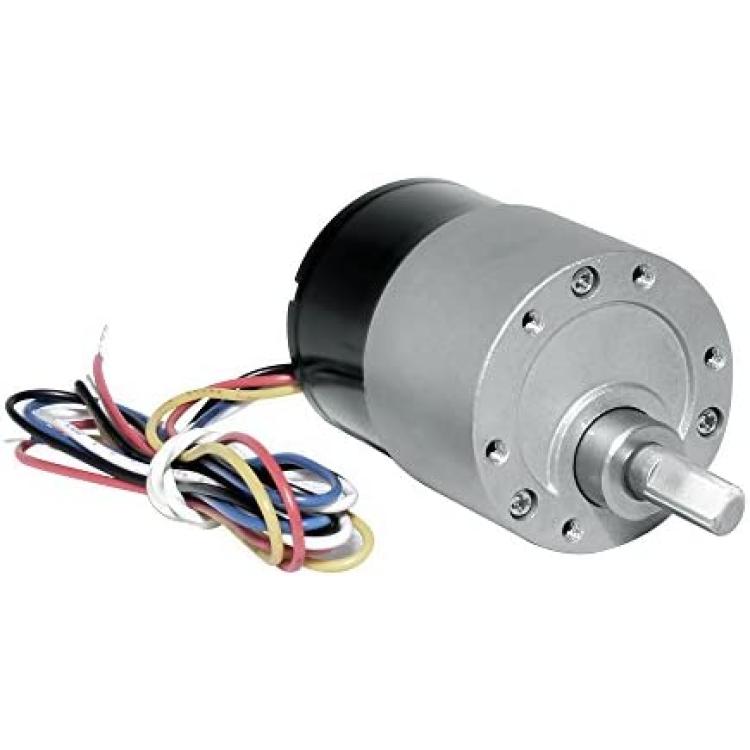

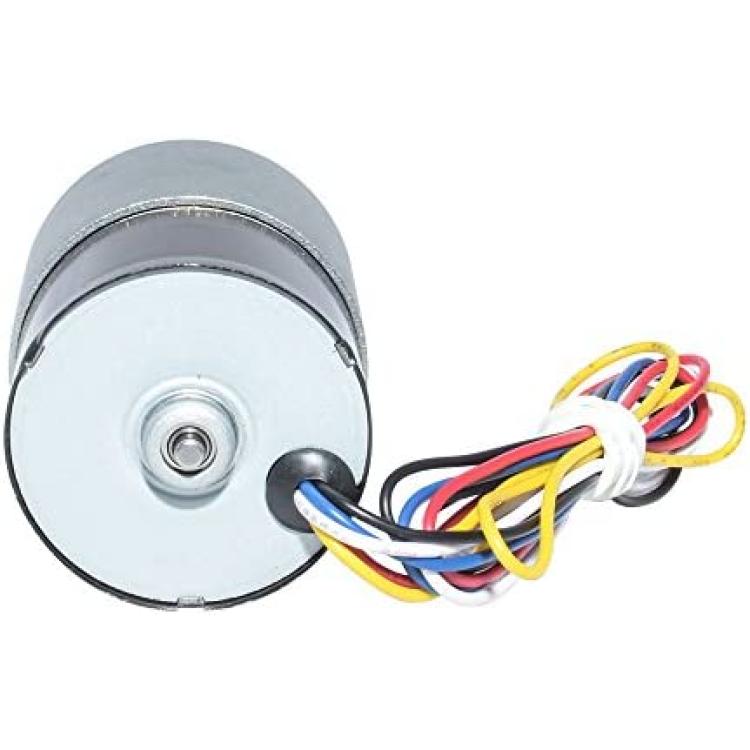

DC Brushless Gear Motor Dia 37mm 12V 35RPM with Installing Bracket
Availability: Pre-Order, Inquiry Price
About this product
*✔Product Name : Brushless DC Motor; Rated Voltage : DC 12V; No-Load Speed: 35RPM; Rated Torque: 10kg.cm; Reduction Ratio: 1:165;
*✔Super long life, the continue working time more than 30000h;CW & CCW rotation; Speed adjusted by 0-5v PWM controller; with FG Pulse signal: 9 pulse/round;
*✔Main Body Dimensions:44 x 37mm / 1.73in x 1.46in (L*D); Out Shaft Dimensions: 15.5 x 6mm / 0.61 x 0.236in (L*D) with 12 x 0.5mm / 0.472 * 0.017inches flat cut off.
*✔Small size dc gear motor with low speed and big torque, Suitable to small diameter, low noise and big torque application.

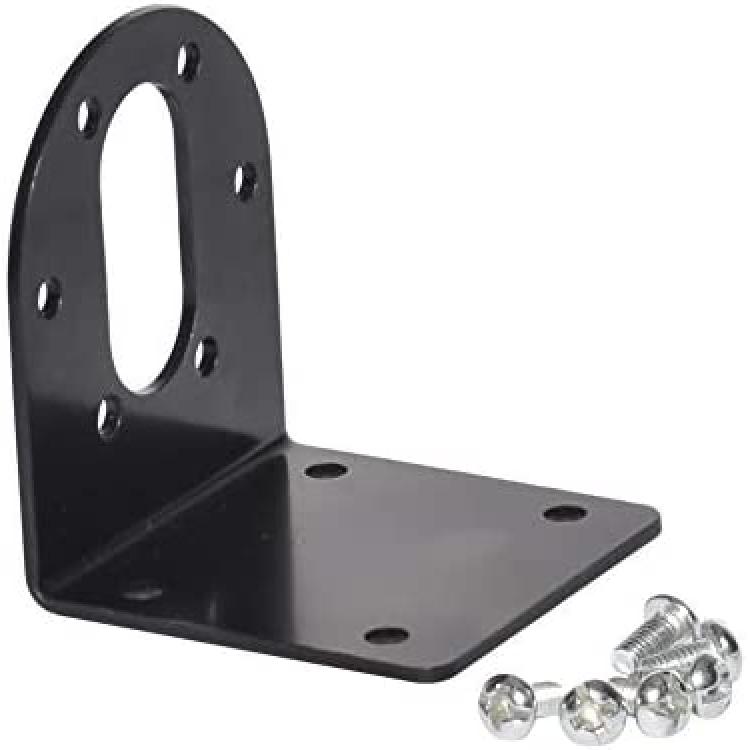

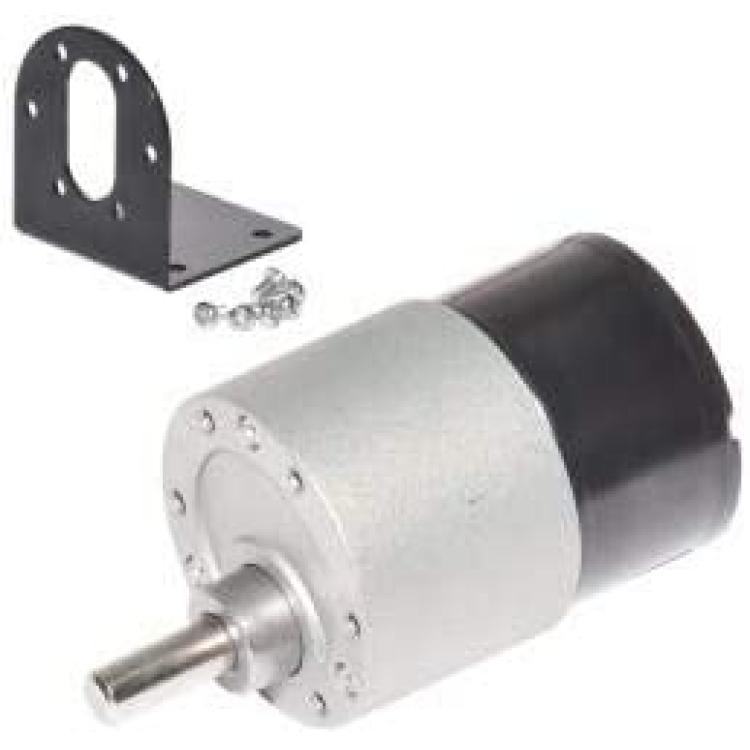

*✔Package : 1PCS x Brushless DC Geared Motor+6PCS mounting screws+1PCS bracket.
Description
Specifications:
Product type: Brushless DC Gear motor
Rated Voltage: 12V
No-Load Speed: 35RPM
No-Load Current: ? 0.18A
Rated Torque:10kg.cm
Reduction Ratio: 1/165

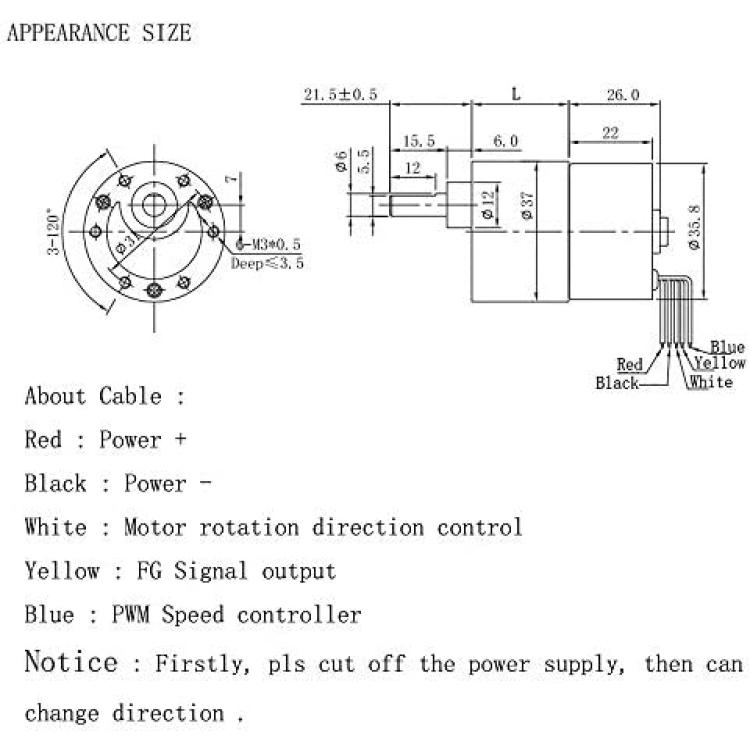

Main Body Dimensions:44 x 37mm / 1.73in x 1.46in (L*D)
Out Shaft Dimensions: 15.5 x 6mm / 0.61 x 0.236in (L*D) with 12 x 0.5mm / 0.472 * 0.017inches flat cut off
Package Listing: 1PCS x Brushless DC Geared Motor+6PCS mounting screws+1PCS bracket.

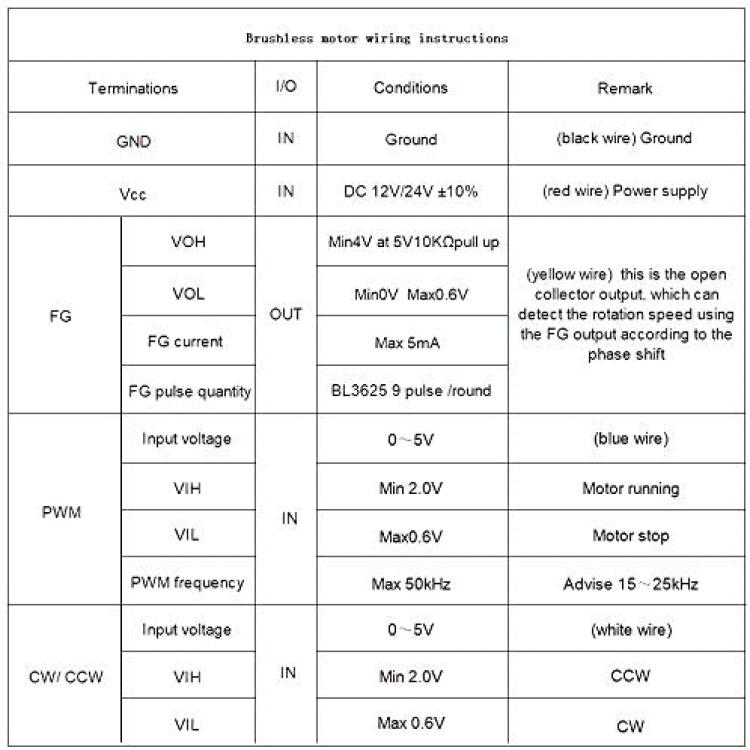

Wiring Diagram:
Red ---- Power+
Black---- Power- White----Vacancy: CCW direction; Ground
Connection(White+Black?Power-): CW direction
Yellow---FG Pulse Signal: 9Pulse/Round
Blue-----0~5V PWM Controller
Sweet Tips: 1.Be sure to keep the wiring connection correct before Working; 2.Be sure to keep the motor stopped before change the CCW/CW direction; Or the motor will be burned!!!
