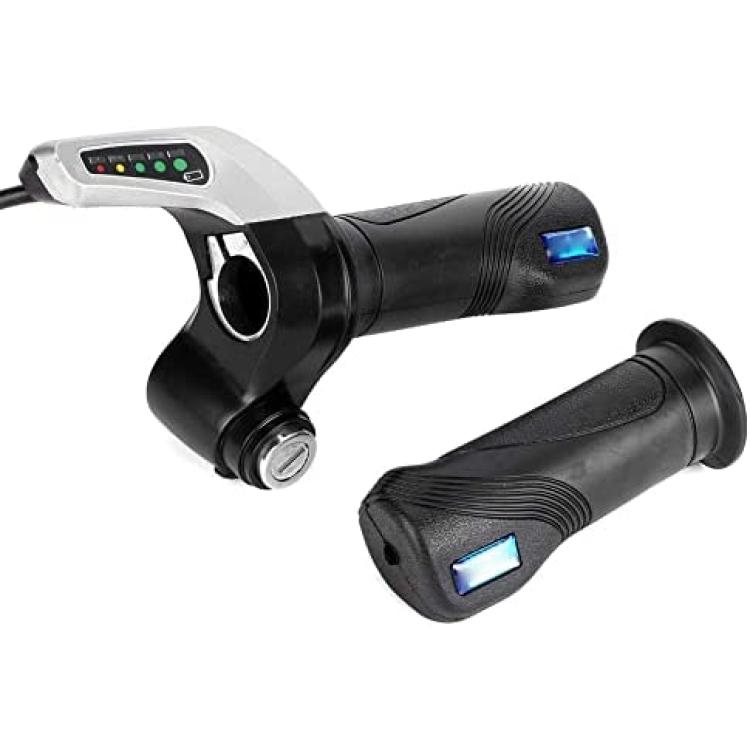

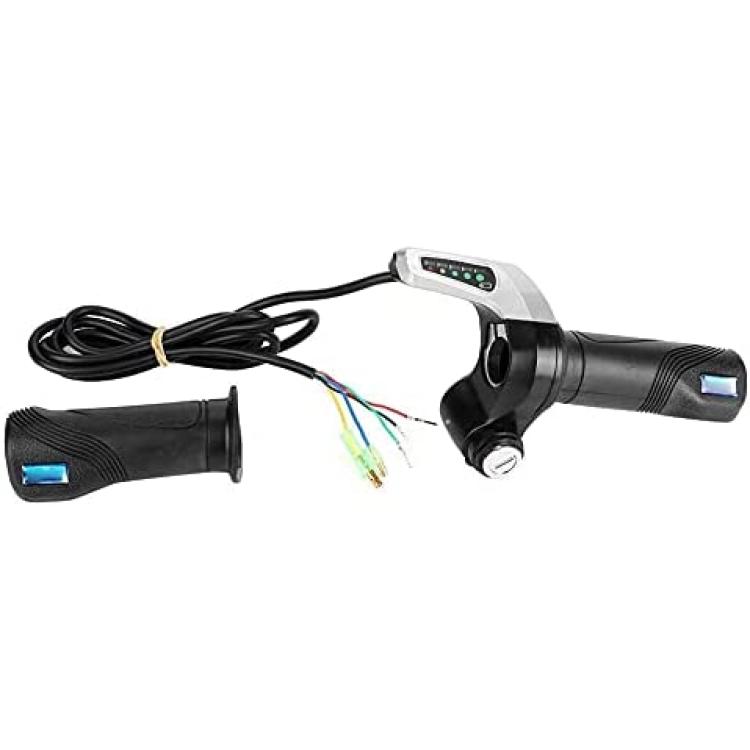

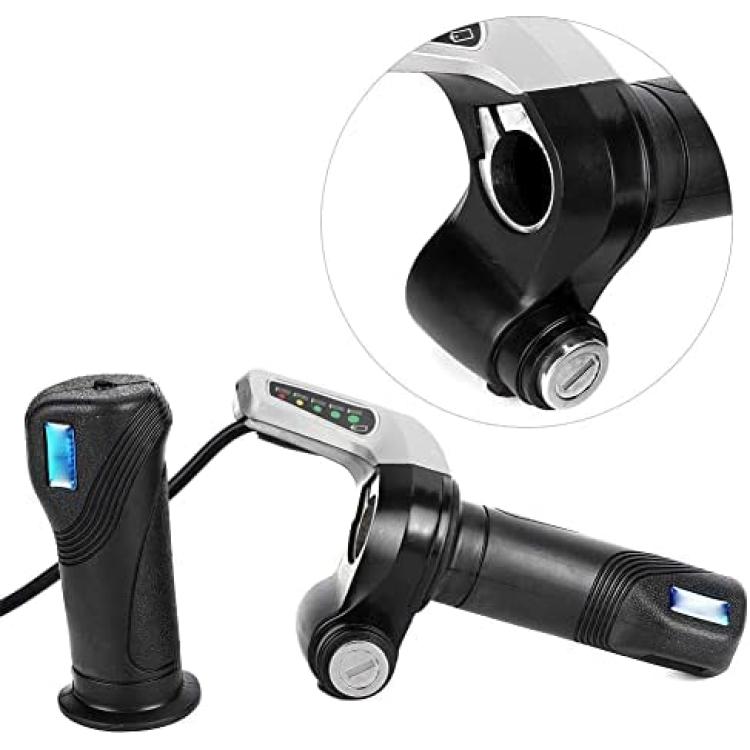

Speed Controller Throttle Grip Kit, DC 36V 32A 1000W Electric Bike Brushed Speed Box Controller Throttle Grip Kit for 7/8in Handle Bar
About this product
*Compatibility: Electric Bike Speed Controller fits to handle bars of standard 7/8 inch (22.2mm). Suitable for electric bicycles, electric tricycles, electric scooters.

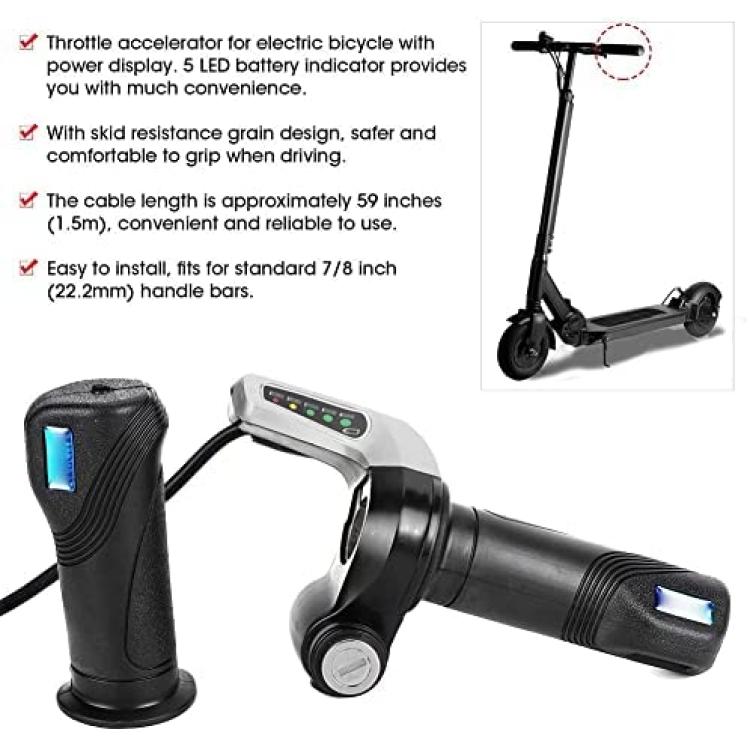

*Battery indicator: 5 LED battery indicator design, electric bicycle rotary accelerator accelerator with power display, will provide you a lot of convenience.
*High-quality Plastic Material: The Speed Controller Grip is made of Plastic material, non-slip and wear-resistant grain design, it is safer and more comfortable to grip during driving.
*Easy to use: With undervoltage protection function, the rotation angle is 0°-70°. The cable length is about 59 inches (1.5m), which provides you with a lot of convenience.
*Reliability: professional process design, not easy to damage, high reliability, fast acceleration, sensitive response, rest assured to use
Description
Specification:
Item Type: Speed controller throttle grip kit
Condition: Brand new
Material: Plastic
Color: As pictures shown
Nominal Voltage: DC 36 V
Current Limit: 32A
Rated Power: 1000 W
Undervoltage Protection: 31.5V
Motor Set: DC motor brushless
Operating Voltage of Throttle: DC5VÂ
Speed Adjustment Signal: 0.8V -4.3VÂ
Power Display Voltage: DC 36VÂ
Power Display:Â
Normal: 35V above, 3 green LEDÂ
Half: 35V-32V, yellow LEDÂ
Vacuum: 32 V or less, red LEDÂ
Angle of Rotation: 0 ° -70 °Â
Operating Temperature: -20 -+ 50
Fitment: Fits handle bars of standard 7/8 inch (22.2mm)Â
Battery Indicator: 5 LEDsÂ
Cable Length: Approx.59 inches/1.5m
Definition of Controller Cables Interface:Â
Battery: Thick black (negative power) / red thick (positive power)Â
Motor: Yellow thick (negative motor) / blue thick (positive motor)Â
Power Switch: Red slim (VDC) / blue ultra-slimÂ
Indicator: Red slim (indicator power output) / black ultra-slim (negative indicator)Â
Brake : Yellow thin (brake signal) / black slim (negative power)
Speed Regulator: Thin blue (speed handlebar signal input) / thin black (negative power) / thin red (5 V positive power)Â
Charging Port: Ultra-thin red (positive charge input power) / ultra-thin black ( negative power)Â
Brake Light: Red ultra-slim (positive power) / black ultra-slim (negative power)Â
Sport: Yellow ultra-slim / green ultra-slim(speed limit, connect the wires together)Â

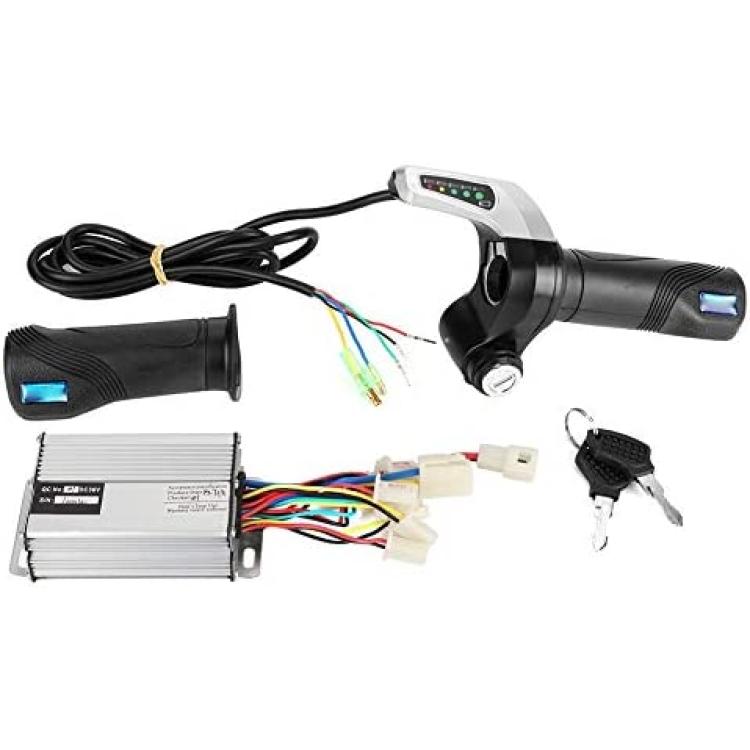

Package List:

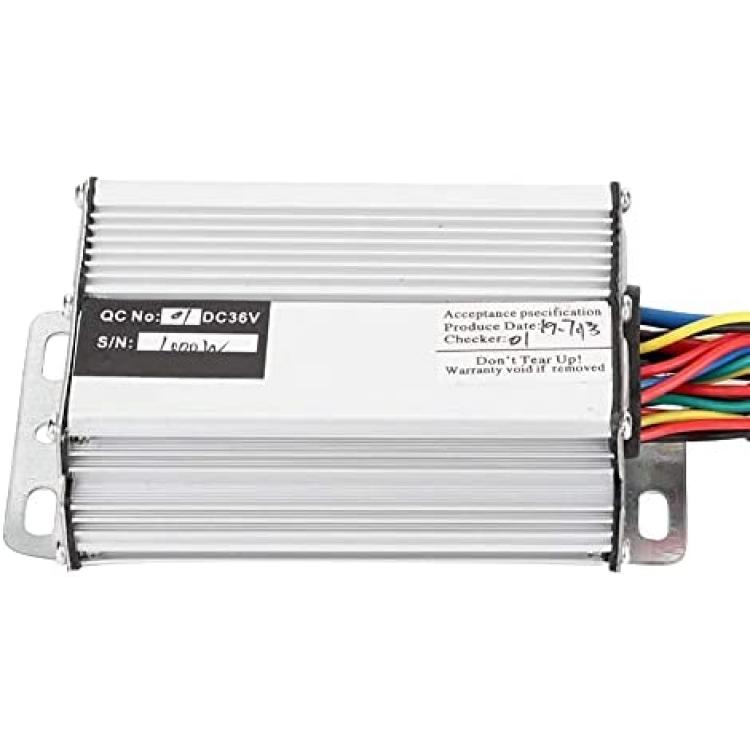

1 x Controller
1 x Accelerator
1 x Power Cord
1 x Handle
