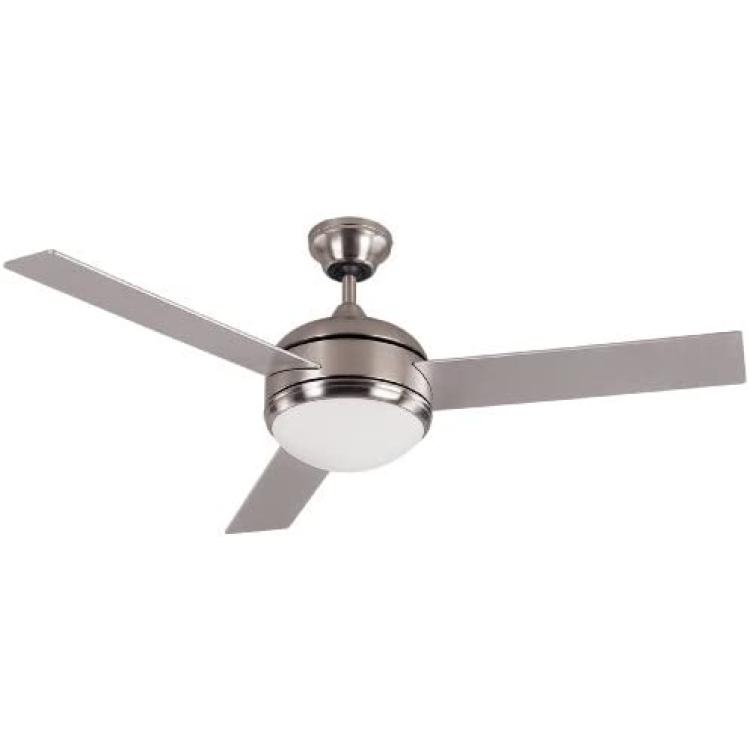

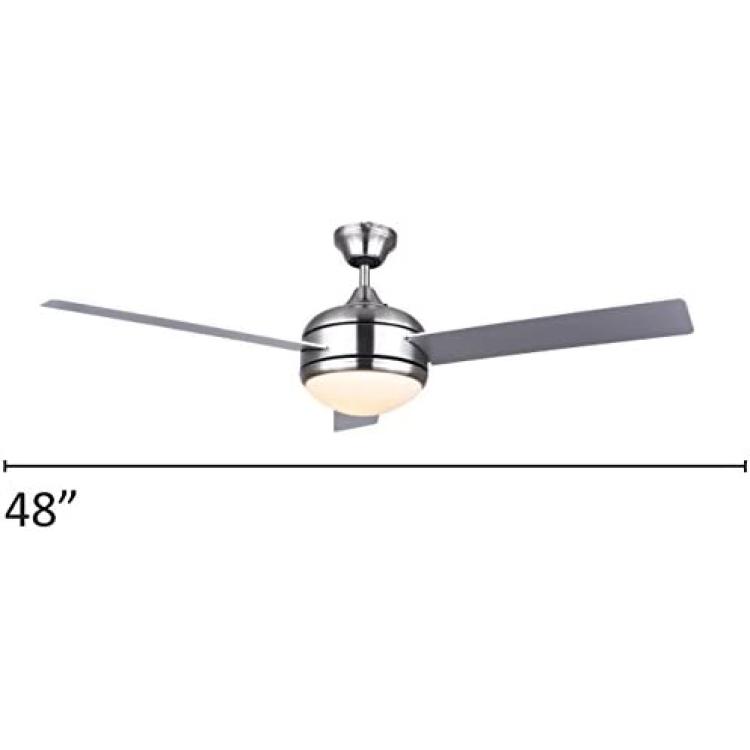

Canarm LTD Calibre BPT 48 Frosted Glass 1 Bulb Light Kit, 48-Inch Ceiling Fan with 3 Blades, Grey/White

The CANARM LTD Calibre Ceiling Fan has a suave appearance. It's 3-Each 48-Inch fan blades are reversible with grey on one side and white on the other. It features a dual mount hanging system and brushed pewter finish decorative collar cover. It has a double montage complete with frosted glass kit. Accommodates a 1-Each 100W (A-type) bulb. Not included. The canopy type handheld remote control allows for 3 speeds and a light dimmer. The fan has a C/UL safety listing.
TROUBLESHOOTING TROUBLE SUGGESTIONS

- Check fuses and circuit breakers.

1. Fan will not start - Check wiring connections to fan.

- Check wiring connections in switch housing.

CAUTION: Turn power off for last two items.

2. Fan sounds noisy
- Check to make sure that all screws in motor housing are snug.

- Check to make sure that blade bracket screws are tight.

- Check to make sure that marrettes in switch housing are not rattling against wall of switch housing.

- If fan has a light kit make sure switch housing screws and set screws are tight.

- Some fan motors are sensitive to signals from solid state variable controls. If solid state controller is used, change to an alternative control. (See a Canarm representative for a list of available controls.)

- Allow a 24 hour break in period to eliminate most noises.

3. Fan wobbles - Check that all blades are screwed firmly into blade brackets. or shakes excessively.

- Check that blade brackets are secured firmly to motor.

- Check distance from tip of blades to ceiling. Gently bend up or down the blade brackets until all distances are the same.

- Check distance between blade tip to blade tip. All measurements should be equal. Loosen blade screws and position blade until even then re-tighten.

- Check that the downrod hemisphere notch is engaged in canopy.

- Check to make sure that jam screws in downrod are tightened.

- Make sure canopy and mounting bracket are tightened securely to wooden joist.

- Make sure warpage has not occurred in wooden blades. If so, contact the Canarm customer service department for replacement parts.
