VictorsHome Changeover Switch SYW28-20 4 Positions 8 Terminals Universal Rotary Cam Selector Latching Switches 550V 20A
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Product Dimensions : 2.83 x 1.93 x 1.93 inches; 3.6 Ounces
*Item model number : Z20190120W08
*Date First Available : January 21, 2019
Description
Description
1. Suitable for the thickness between 1mm to 5mm of the mounting board.
2. Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
3. Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
Â

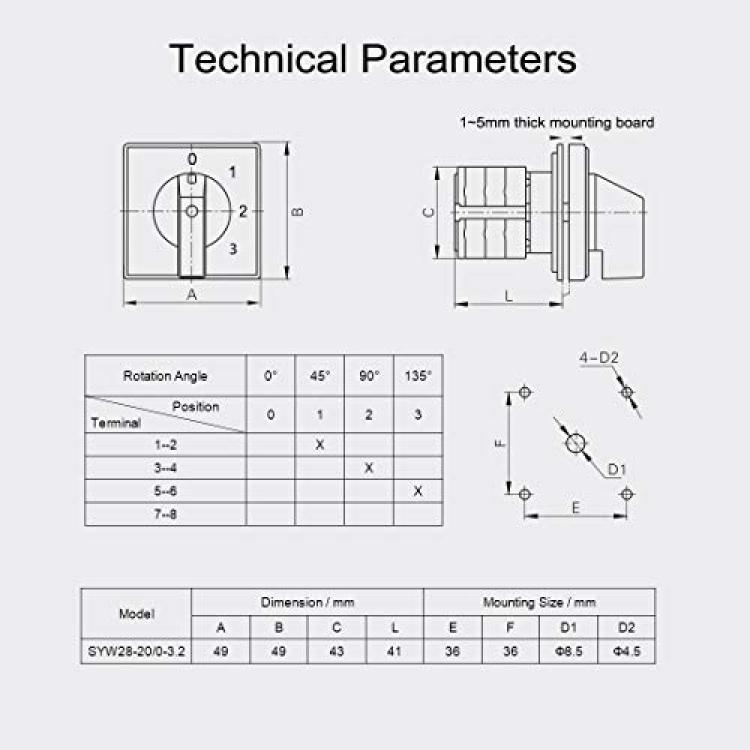

Specifications
Model: SYW28-20/0-3.2
Positions: 4
Terminals: 8

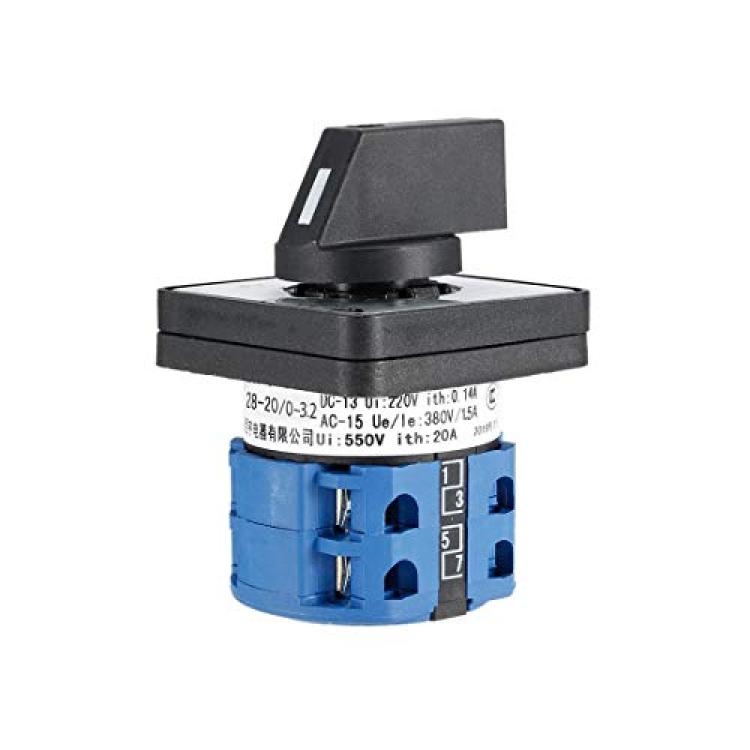

Ui: 550V Ith: 20A
Action Type: Latching
Positioning angle: 0-45-90-135 Degree
Rating: DC-13: Ui: 220V, Ith: 0.14A; AC-15: Ue / Ie: 380V / 1.5A
Mounting Hole Distance: 36mm x 36mm / 1.42inch x 1.42inch (L*W)
Total Size: 49mm x 49mm x 72mm / 1.93inch x 1.93inch x 2.83inch (L*W*H)
Â

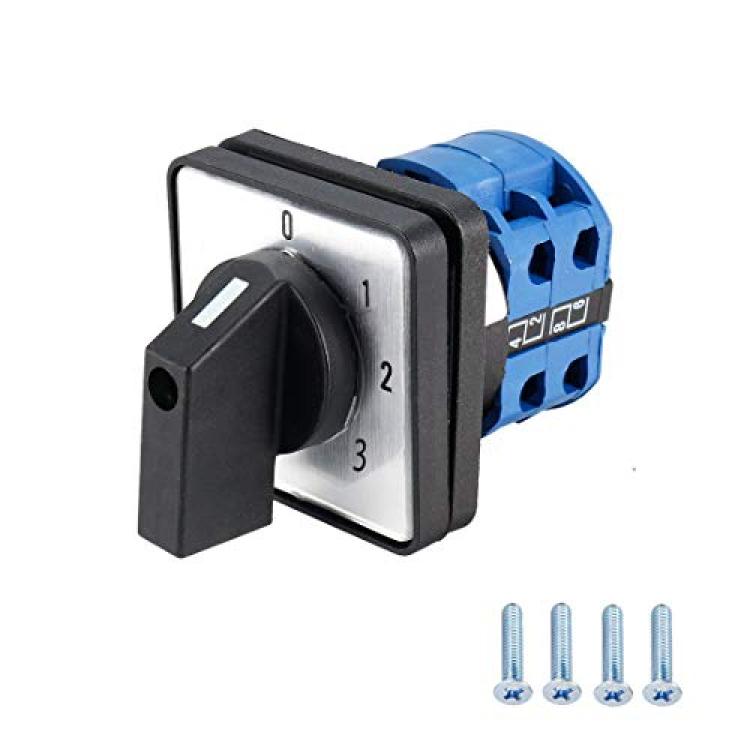

Package Content
1 x Changeover Switch
4 x Mounting Screws
