Alinan 4pcs 12V 10A 120W XH-W3001 Digital LED Temperature Controller Mini Thermostat Switch with Waterproof NTC 10K Thermistor Sensor Probe, -50℃ to 110℃ Heating/Cooling Temperature Control
About this product
*【Super Material】: W3002 intelligent thermostat has ABS flame retardant housing is avirulent environmental protective and high safety, strong impact resistance, heat and low temperature resistance, ageing resistant, sturdy and durable, is your side temperature control housekeeper
*【Two Working Modes】: This digital LED temperature controller module has 2 working modes, heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature). Range from -50℃ to 110℃. High temperature control precision of 0.1℃
*【Waterproof Probe】: Equipped with a 1-meter NTC10K probe, easy to use. The Probe used stainless steel material, waterproof and can last for a long timeWaterproof probe: Equipped with a 1-meter NTC10K probe, easy to use. The Probe used stainless steel material, waterproof and can last for a long time
*【Easy Operation and High Efficiency】: This digital display temperature controller is easy operation, to set start temperature, stop temperature, corrected temperature connector, delay start. the LED indicator light can display the current output status; The digital display tube can display the measured temperature. With fixing screw hole, convenient for install and fixed. Small size, low power consumption, fast response
*【A Wide Range of Applications】: Widely used in hvac, dehumidifier, test and test equipment, automobile, automatic control, weather station, humidity regulator and other related temperature detection and control
Description
12V Digital LED Temperature Controller Thermostat Control Switch NTC 10K Probe
Features:

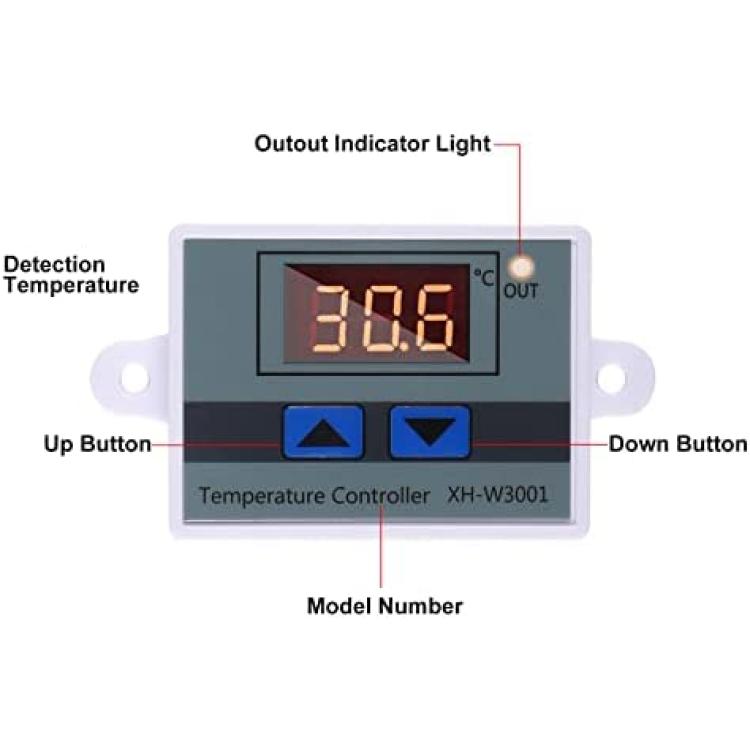

1. LED Indicator Light: The bright digital tube is clearly displayed, and it can be clearly read whether it is used during the day or at night.
2. The sensor can be replaced at will by using the 2P terminal. When you need to use other probes, you can replace it at will.
3. ABSA material shell, not only exquisite and beautiful, but also 1.8mm ultra-thick design, high mechanical strength, good electrical performance.
4. Wiring input and output design, more convenient to use in various industrial equipment, multi-strand wire 300V/20A over-configuration, safe and reliable
5. High cost performance, Stainless steel shell, resin seal treatment, waterproof. Our probe is designed to be electrically isolated, so you can use it safely
Specification:
Name: Microcomputer Temperature Controller
Model: XH-W3002
Temperature Measurement and control Range: -50 to 110 degree centigrade
Measurement Accuracy: +/- 0.2 degree centigrade
Control Accuracy: +/- 0.1 degree centigrade
Measuring input: NTC 10K L = 1M waterproof probe
Input Power: DC 110-220V
Output Power: 1500W(MAX)
Output Type: Direct output (input/output synchronization)
Output Current: 10A (MAX)
Installation Pitch: 73mm/2.87'' (aperture 4mm/0.15in)

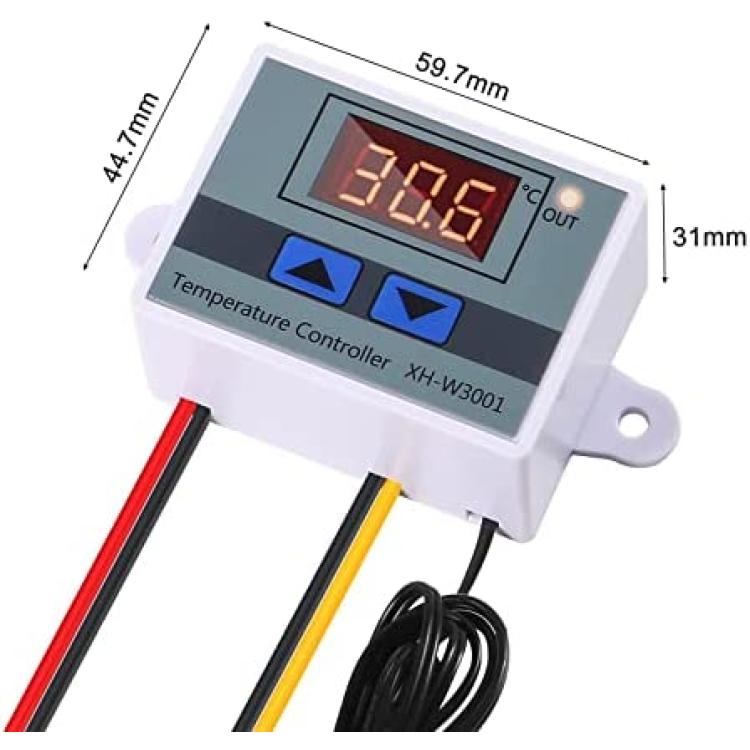

Appearance size: 60 x 45 x 31 mm/2.36 x 1.77 x 1.22 in
Item Weight: 50g / 1.6oz
How to use
1: Press "UP" button show the starting temperature;
2: Long press "UP" button until the temperature display flashes, press the "UP" or "Down" button to set the start temperature value;
3: Press "Down" button show the stop temperature;
4: Long press "Down" button until the temperature display flashes, press the "UP" or "Down" button to set the stop temperature value.
Package including:

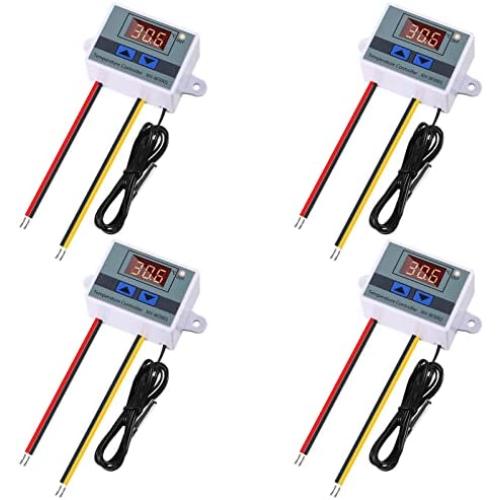

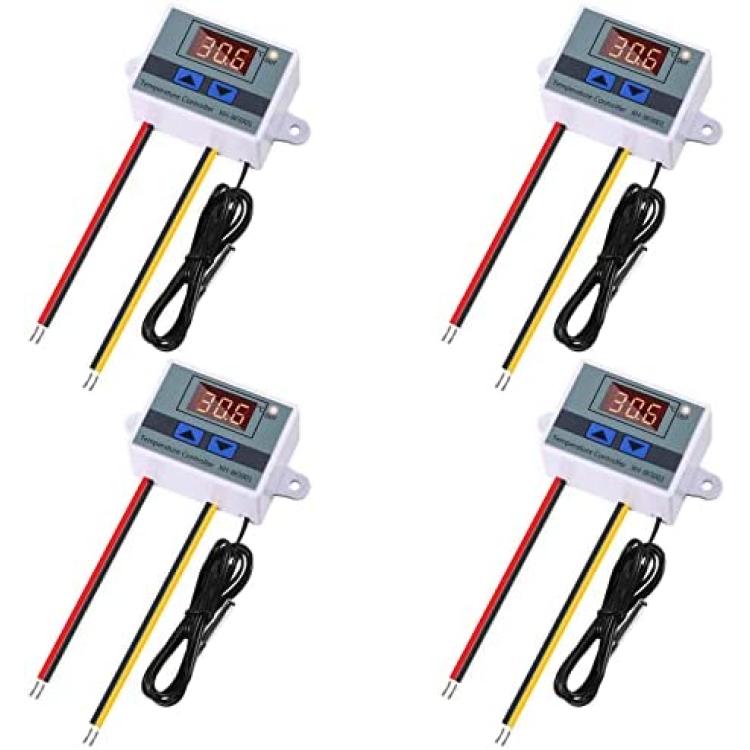

4 x W3002 Digital Thermostat Module
4 x Temperature probe
