Ceiling Fan Remote Control Replace Hampton Bay Thermostatic LCD W Fan Timer FAN-9T L3HFAN-9T (Remote Only) -Pikeman

Pikeman Remote Control with Original OEM, FCC approved

Pikeman Remote Control with Original OEM, FCC approved

The products of our company are regular original OEM products, reliable quality, complete certification, and PLEASE certify Pikeman Brand.

Transmit signal frequency:303.9, small frequency difference can also match.

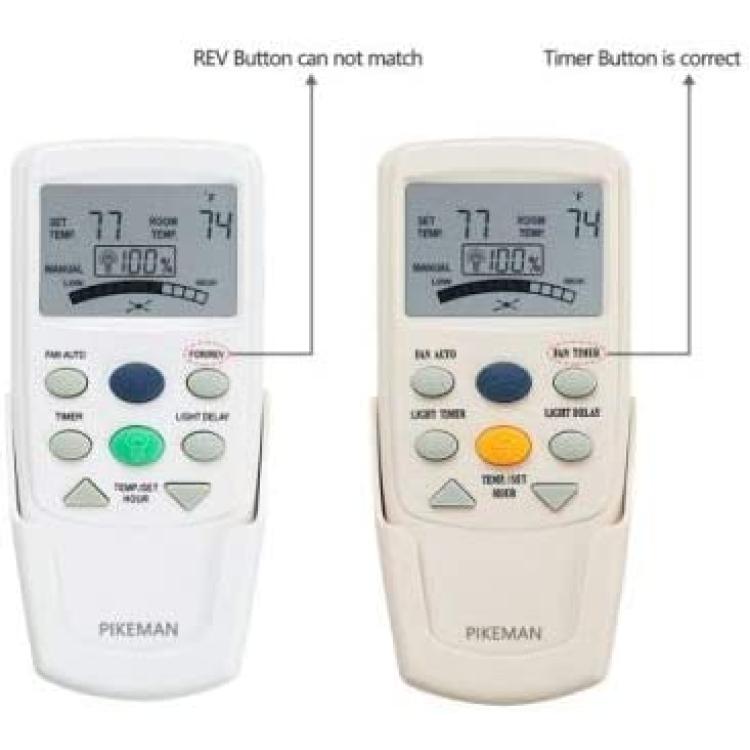

This is just a separate transmitter at first, if you still need a receiver, please buy a complete kit or a separate receiver. Please check carefully whether your original transmitter panel contains a "FAN TIMER" button, if not, this transmitter cannot match your original receiver. You can also check the model nameplate on the back of your original transmitter to see if it is marked with "FAN-9T" and "L3HFAN-9T". You can purchase this transmitter for replacement only if it matches exactly. The corresponding receiver of this transmitter is FAN-28R (black), if your original receiver is other models such as the yellow FAN-18R (check the receiver model nameplate), please do not buy it. If you find that the transmitter does not match, please purchase a single 28R receiver. After replacing the receiver, you can use your ceiling fan perfectly.

Read more

Read more

Specification

pecification

Read more

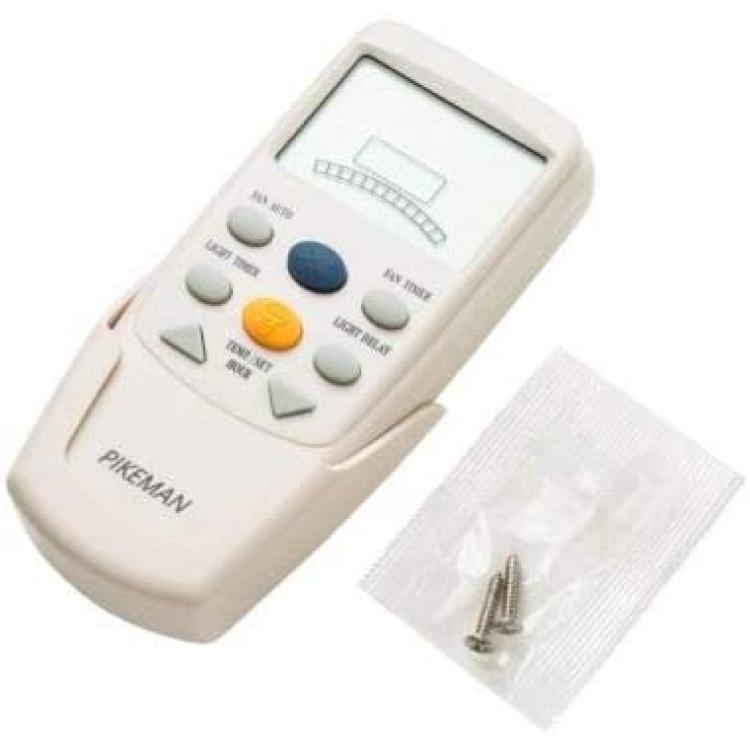

Package Includes( battery and receiver is not included)

Package Includes

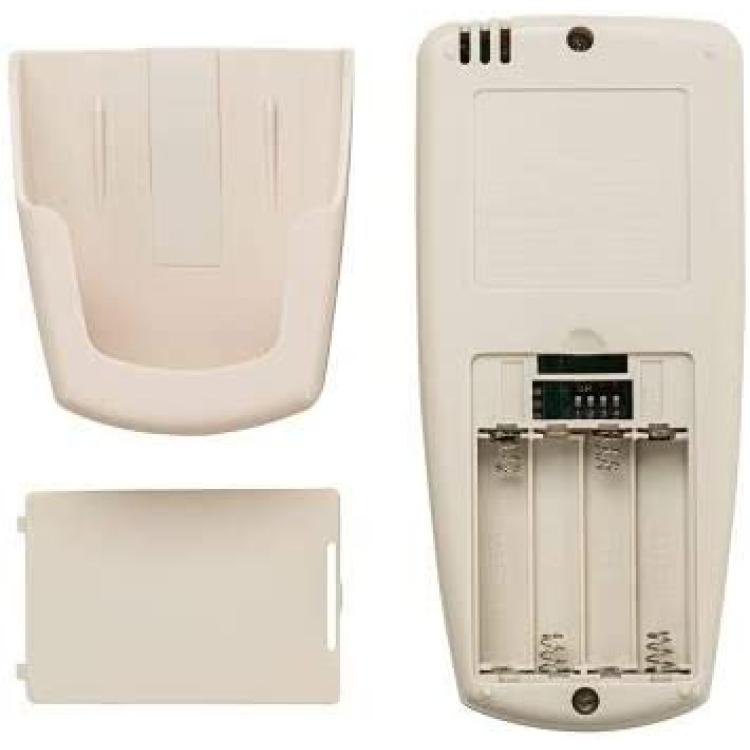

Additional Unit Identification numbers below:Item #: 1000 020 187, 458 633, 458 611, 458 301Model #: 26666, 26662, 26661, 26663UL Model #: 52-WWDIVThis is the remote control for the ceiling fan. They should match the switches on the transmitter inside the ceiling fan.As long as the fan has the receiver in it this remote will work with your Hampton Bay ceiling fans.Just remember to set the 4 dip switches inside the battery compartment(they are kinda hidden behind the slot for the battery itself).Look inside the old remote with the battery cover off, there is a series of "DIP" switches(4) with a pen.Slide the switches in the new remote to match the same pattern as the old remote.Replace the battery in the new remote and things should work.There are 16 different frequencies for the Hampton Bay fans, so you would have to play with the combinations.Here are the frequency list:(0 is down and 1 is up) 0000, 0001, 0010, 0100, 0110, 0101, 0011, 0111, 1111, 1110, 1101, 1011, 1001, 1010, 1100, 1000This Remote system is compatible with most Ceiling Fans except those that have built-in and Do not use with solid state fansPlease note that there is same appearance of remote control with the FOR/REV button, but this is a timer function, the two transmitters need to correspond to different receivers, otherwise the timing and reverse function will not be available.The red indicator on the transmitter will light when one of the buttons is pressed.Additional Unit Identification numbers belowItem #: 1000 020 187, 458 633, 458 611, 458 301Model #: 26666, 26662, 26661, 26663UL Model #: 52-WWDIVRequired Distance: 50M(pass through barriers)MAX Light Watts: 300( incandescent only)This Remote system is compatible with most Ceiling Fans except those that have built-in and Do not use with solid state fansPlease note that there is same appearance of remote control with the FOR/REV button, but this is a timer function, the two transmitters need to correspond to different receivers, otherwise the timing and reverse function will not be available.The red indicator on the transmitter will light when one of the buttons is pressed.Additional Unit Identification numbers belowItem #: 1000 020 187, 458 633, 458 611, 458 301Model #: 26666, 26662, 26661, 26663UL Model #: 52-WWDIV1* Remote Control1* Wall mount2* Screw1* Paper description
