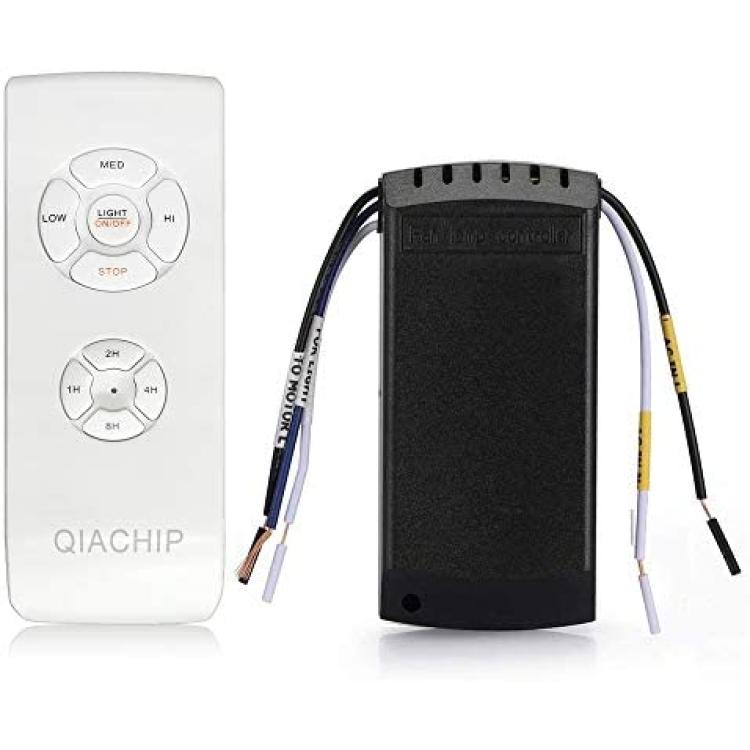

QIACHIP Upgrade Universal WIFI Ceiling Fan ligh Remote Control Kit, Wireless Fan Speed Lamp Controller with Timing Compatiple for Alexa, Google Home, Phone,Voice Control

How do I connect to Alexa?

The following is an example using Amazon Echo

1. Complete product networking configuration in the Smart Life App

Complete the device's networking configuration according to the prompts in the App

Note: In the App, change the name of the device to an easily identifiable name such as Alexa; names are usually in English, such as "bed light"

2. Configure the Amazon Echo device

(If you have already configured Amazon Echo, you can skip this step. The following instructions are based on the iOS client)

1. Make sure your Amazon Echo device is powered on and connected to a Wi-Fi network.

2. Open the Alexa app on your phone. After successful login, tap on the menu in the upper left corner of the Home page, select "Settings" and tap "Set Up A New Device" to set up the Amazon Echo.

3. Choose your Amazon Echo device type and language for connecting. Press and hold the small dot on the device until the light turns yellow. Then tap "Continue" to connect to the hotspot.

After connecting to the Amazon Echo hotspot, return to the page. At this point, the connection is successful. Tap "Continue" to proceed to the next step. Choose a Wi-Fi network to connect to. Amazon Echo will take a few minutes to try to connect to the network.

4. After the network connection is successful, Tap “Continue." An introduction video will appear. After the video ends, Tap “Continue” to jump to the Alexa Home page. You have now completed the Amazon Echo's configuration process.

3. Key step - link Skill

1. Tap on "Skills" in the Alexa app menu.

2. Then search for "Smart Life". Tap "Enable" to enable the Skill.

3. Enter the Smart Life APP account and password, then tap “Link Now” to link your Smart Life account to enable the Skill. Now you can start your smart home journey.

Common commands

Control the device via voice commands Now you can control your smart device with Echo. You can control your device (such as your bedroom light) with the following commands:

Alexa, turn on/off bedroom light. (Turn on/off the light)

Applications Light/Fan

Operating Voltage 110V

Max Load Power <300W / 10A

Standby Power consumption <0.5 W

Working temperature -20?~80?

Control Method RF 433Mhz Remote & Mobile App Control

Wiring Method Load & Neutral Wire

Fan Speed/ Light on and off/ Timing Remote Control

Fan: 3 fan speed (high/medium/low) and off button (fan stop). Light control: on/off. No attenuation Timing: 1H, 2H, 4H, 8H

(1)Within 3 seconds of powering up the controller, press and hold LIGHT and HI simultaneously until you hear three short beeps from the receiver.

Pairing process is completed.

(2)RF Remote Control Clearing/Reset Instructions:

Within 3 seconds after the controller is powered on, press the remote control that has already passed the code STOP and 2H to clear the code. When the buzzer rings for a long time, it will indicate that the ID of the remote control that has been stored in the internal memory of the controller has been completely erased.

You can control your fan light through the "Smart Life" APP, and you can turn on/ off the buzzer through the APP.

QUESTION ABOUT US

Q: It's too noisy, how do I set it to silent mode?

A: You need to set the silent mode in the "Smart Life APP".

First, you need to turn on the fan in the APP, and then you can see the function of setting the mute in the APP;

if the fan is turned off, the function of setting the mute will not be displayed in the APP.

Q: Device not be found in smart life?

A: You can try to follow these steps:

1) Turn off the power of the receiver and wait for 1 minute.

2) Power on the receiver

3) Open the "Smart Life" APP

4) Under "Manual Add", select "Small Home Appliances".

5) Select "Fan".

6) Click "Confirmation indicator flashes quickly", enter your Wi-Fi name and password, and then click "OK"

(It should be noted that the choice of Wi-Fi network can only be 2.4G network)

7) After loading the screen and returning to the homepage, you should be able to find your device in it.

If the setup is unsuccessful, repeat the above steps.
