DC12V 80 Amp Forward and Reverse Relay Module for Motor/Linear Actuator, Reversing Relay Module
Product Code: MM29613
Availability: Pre-Order, Inquiry Price
About this product
*Reversing relay module. Powers any 2 wires reversing DC motor equipment, can be used for any application that requires the ability to reverse motion.
*With a rocker switch(self-holding) for Forward / Stop / Reverse function. Compact plastic case and screw terminal blocks connect for easy mount.

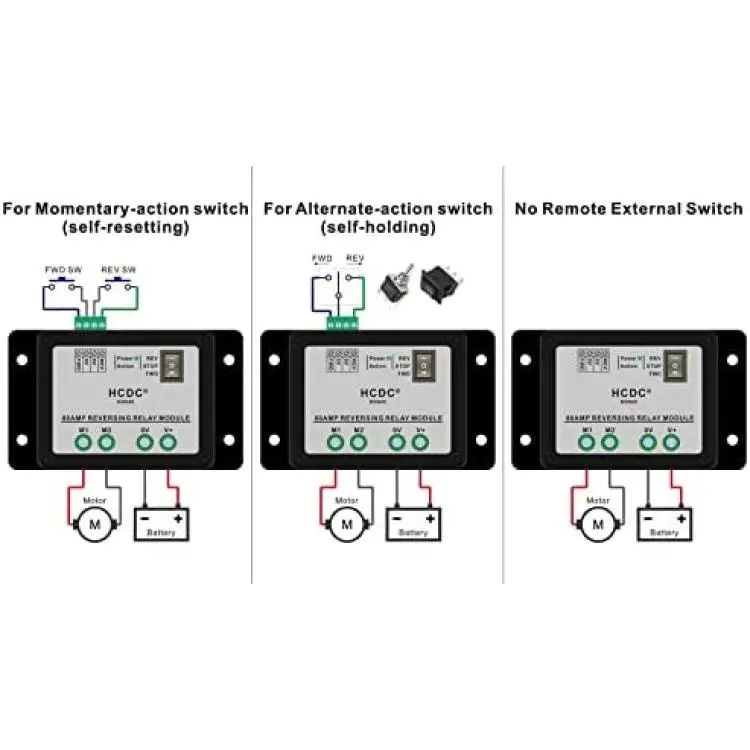

*Support external connect Momentary-action(Self-resetting) switch or Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.
*With power indicator LED. With forward and reverse status indicating LED, forward status lighting red, reverse lighting green.
*Rated current 80 Amp, Operating Voltage: DC 10 ~ 15V.
Description
1, Reversing relay module. Powers any 2 wires reversing DC motor equipment, can be used for any application that requires the ability to reverse motion.
2, With a rocker switch(self-holding) for Forward / Stop / Reverse function. Compact plastic case and screw terminal blocks connect for easy mount.
3, Support external connect Momentary-action(Self-resetting) switch or Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.
4, With power indicator LED. With forward and reverse status indicating LED, forward status lighting red, reverse lighting green.
5, Rated current 80 Amp, Operating Voltage: DC 10 ~ 15V.
