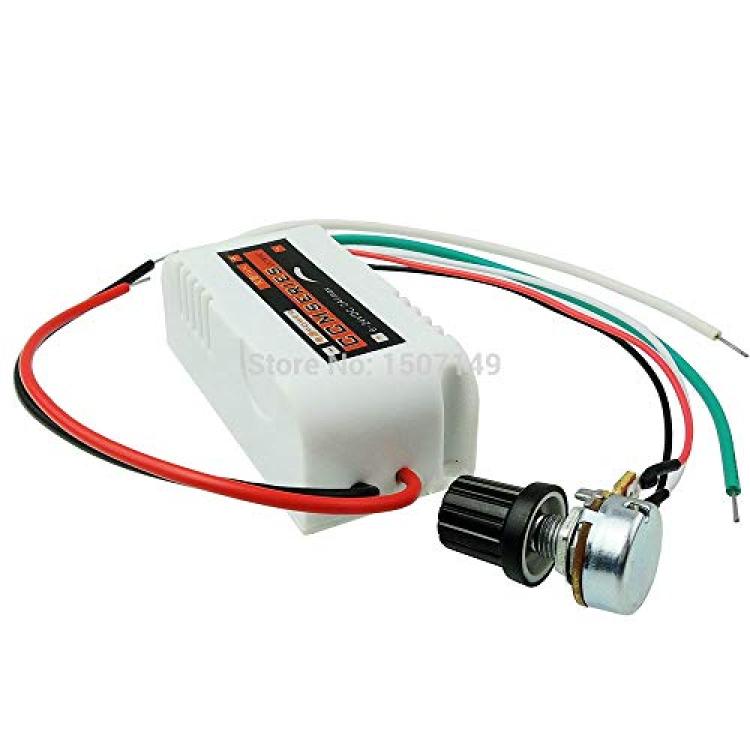

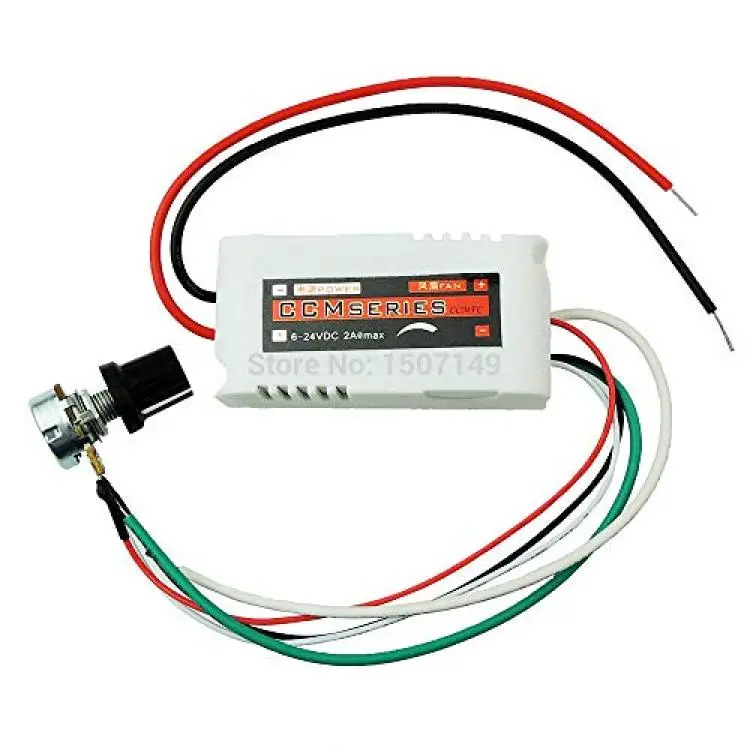

CCMFC DC Motor Speed Controller
(PWM)
Features:
CCMFC DC Motor Speed Controller provides variable
speed capability for brush or brushless DC fans,
or the fans without control line.
Input voltage: 12VDC
Suitable for the DC fan within 1A, Peak current 2A.
Low noise, small size.
Main technical parameters:
l Input supply voltage: 12VDC
l Output voltage range: 0.8V-11.3V
l The maximum output power: 24W
l    The maximum continuous output current :2A.Suitable for
    the DC fan within 1A
      l Item size:2.6*1.26*0.95 inches . Net weight: 1.4 ounces
 Operating instruction:
Before you attempting to wire the controller, make sure
power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE
POWER LOADS AND DC FAN.THIS WILL DAMAGE THE
CONTROLLER.
1.Connect wires refer to the product wiring label.
(Red wire connects the positive power. black wire connects
negative power.blue wire connects the positive of fan. gray
wire connects the negative of fan.)
2. Turn on the power, and adjust the potentiometer.
About us:
      UG(Unique Goods)is a trading company engaged in variable speed motor drives controls and accessories for electric motors.
Item specifics:
Motor type: DC Motor
Model number: CCMFC
Is customized: Yes
