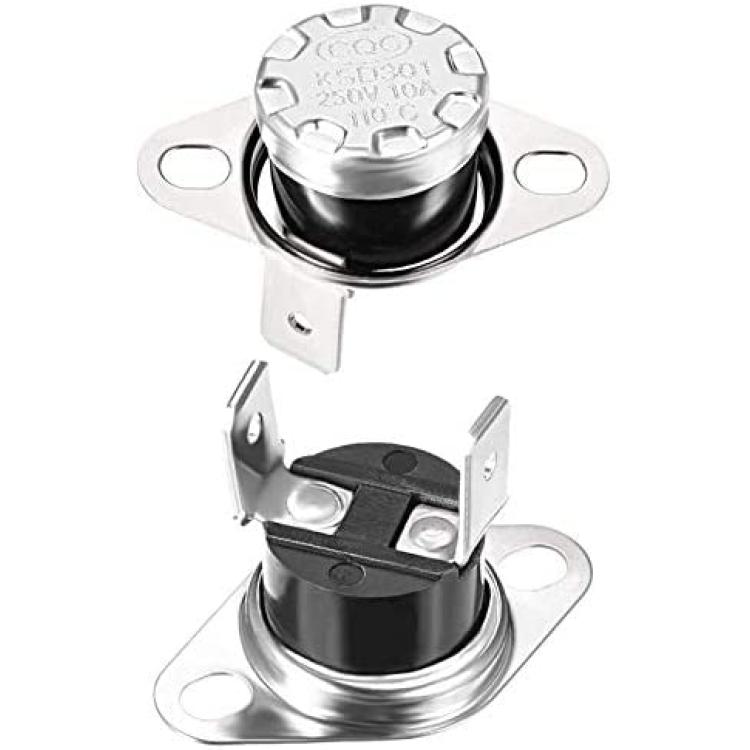

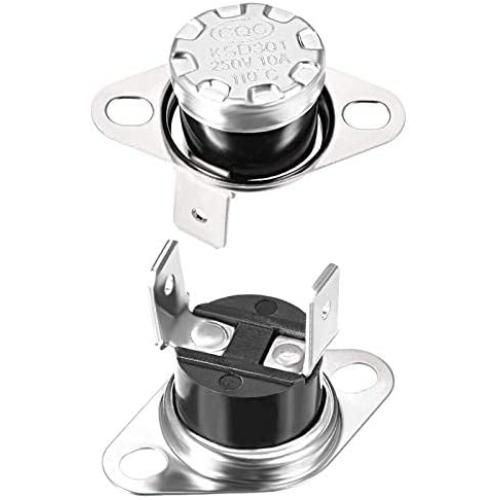

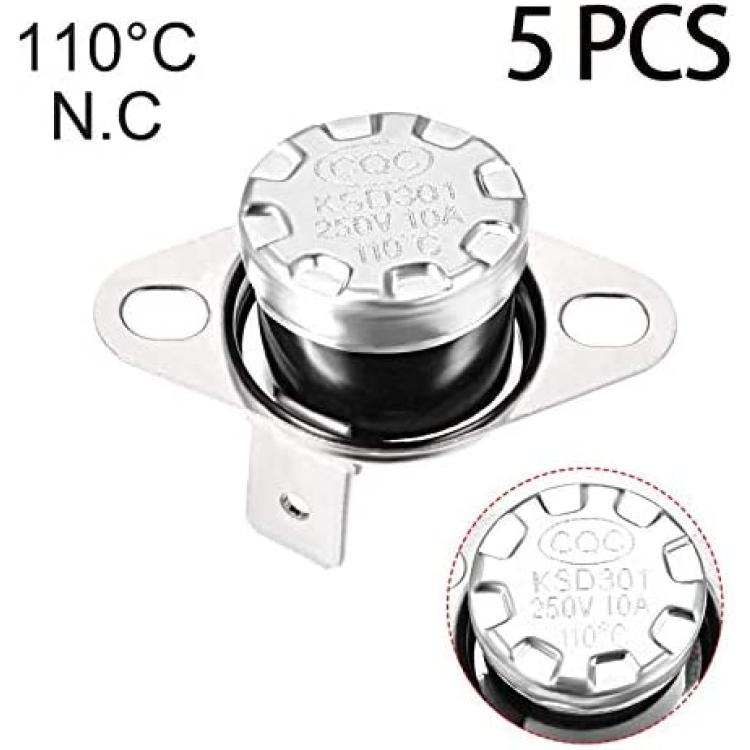

L-A KSD301 Thermostat 110°C/230°F 10A Normally Closed N.C Adjust Snap Disc Temperature Switch for Microwave,Oven,Coffee Maker,Smoker （5 Pcs）
About this product
*Type: KSD301 110 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NC (Normal Close)
*Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 110 Celsius degree
*Advantage: Double metal chip, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.
*Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
*Application: Mainly used for microwave,oven,electric smoker,coffee maker,Speed Cook oven,heater,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater
Description
Model?KSD301-110°C/230°F
KSD301 Thermostat N.C/N.O Adjust Snap Disc Limit Control Switch Thermal Switch 5 Pcs
Features
Action Type: N.C/N.O
Rated Voltage/Current : 250V/10A
Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
Working Principle
When the electrical appliance works normally, the bimetallic sheet is in the free state and the contact is in the closed / open state. When the temperature reaches the operating temperature, the contact is opened / closed, and the circuit is cut / closed, so as to control the temperature.
When the electric appliance cools to the reset temperature, the contact will automatically close / open and return to the normal working state.
Advantage
Thermal switch has the characteristics of stable performance, high precision, small volume, light weight, high reliability, long service life and small radio interference.

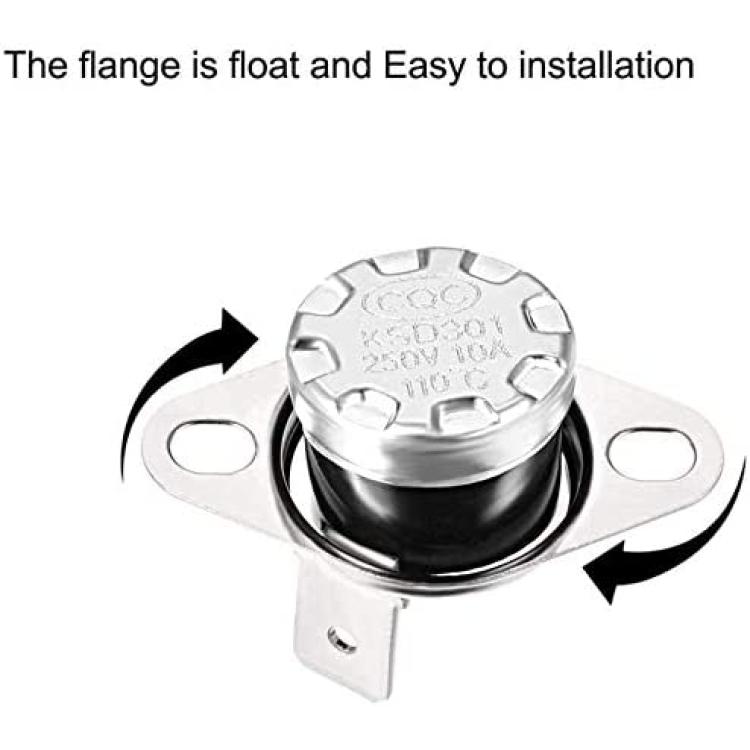

Easy to Installation
The flange on the switch is float and easy to installation.
