8 Inch 8" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift
Availability: Pre-Order, Inquiry Price
About this product

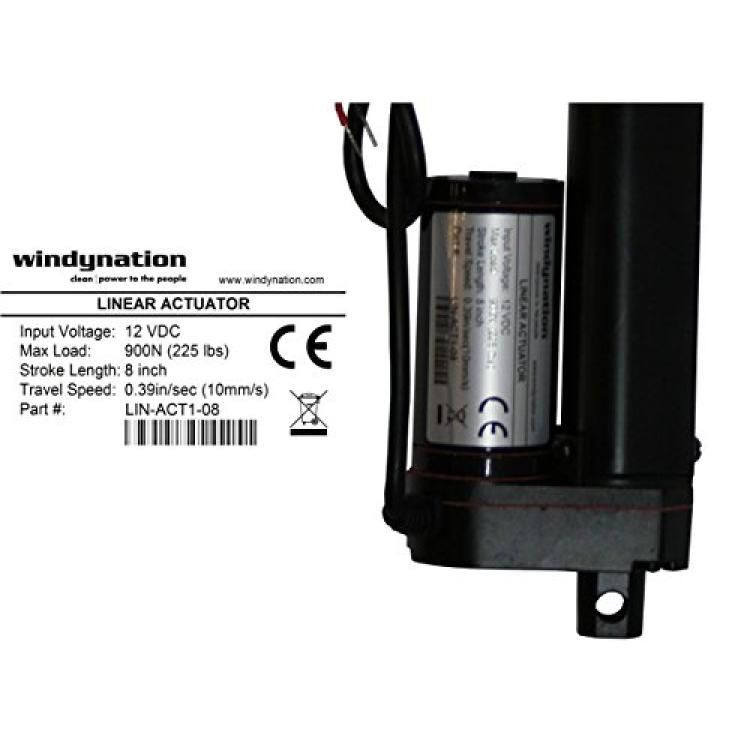

*SEE IMAGES FOR DIMENSIONAL DRAWING AND ADDITIONAL SPECIFICATIONS
*Stroke Length = 8 inches, Travel speed = 0.39 inches/sec (10 mm/s)
*Maximum current draw = 4.6 Amps
*Maximum Dynamic Load = 225 lbs (900N), Maximum Static Load = 600 lbs
*IP65 rated (suitable for outdoor use). Exterior material is 6061 Aluminum (powder coated black)
Description

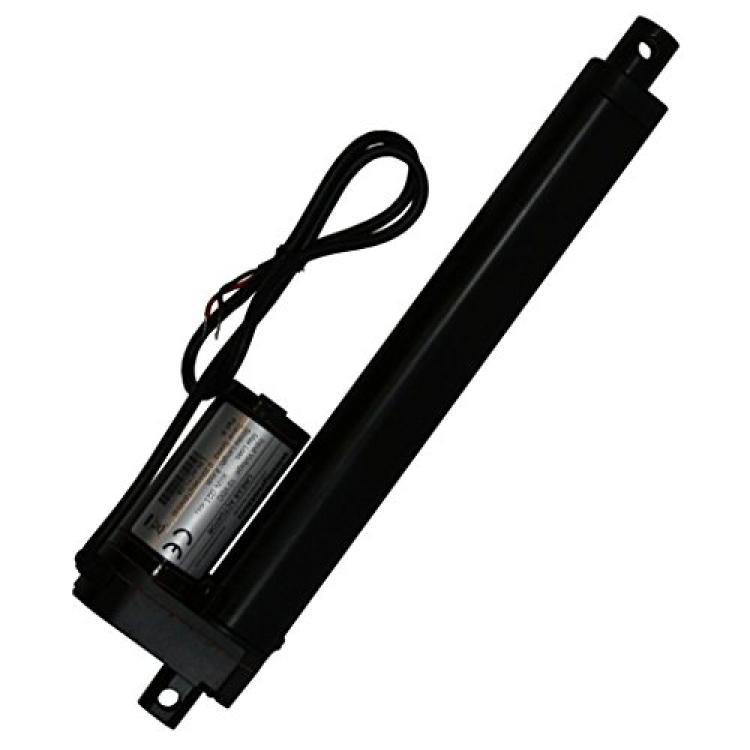

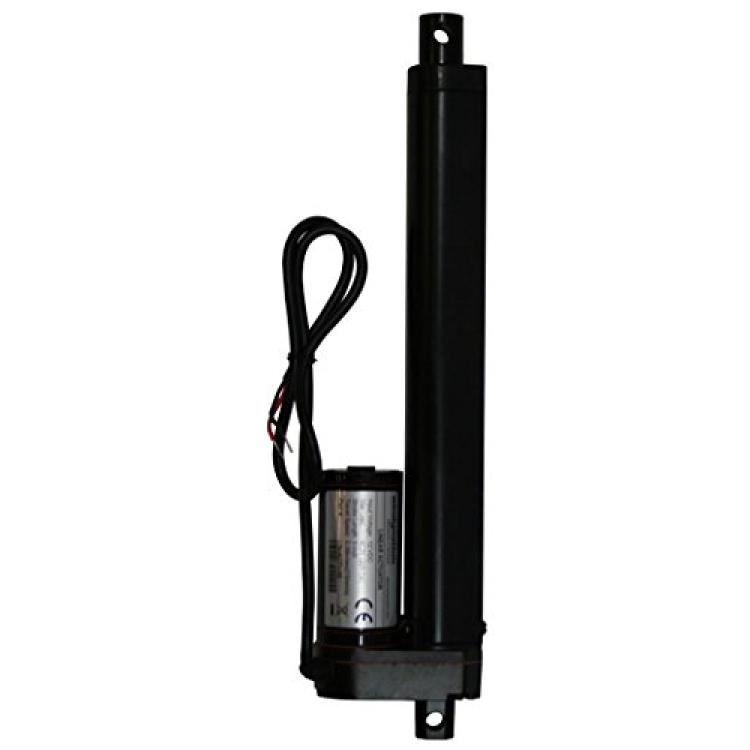

Linear actuators are actuators which create motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line. Windy Nation LIN-ACT1 Series Linear Actuators are a powerful and reliable linear actuator for small to medium loads. We designed our linear actuator with pre-lubricated metal gears, pre-installed limit switches, and with an IP65 (suitable for outdoor use) water resistance rating. SEE PHOTO GALLERY FOR DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS.
