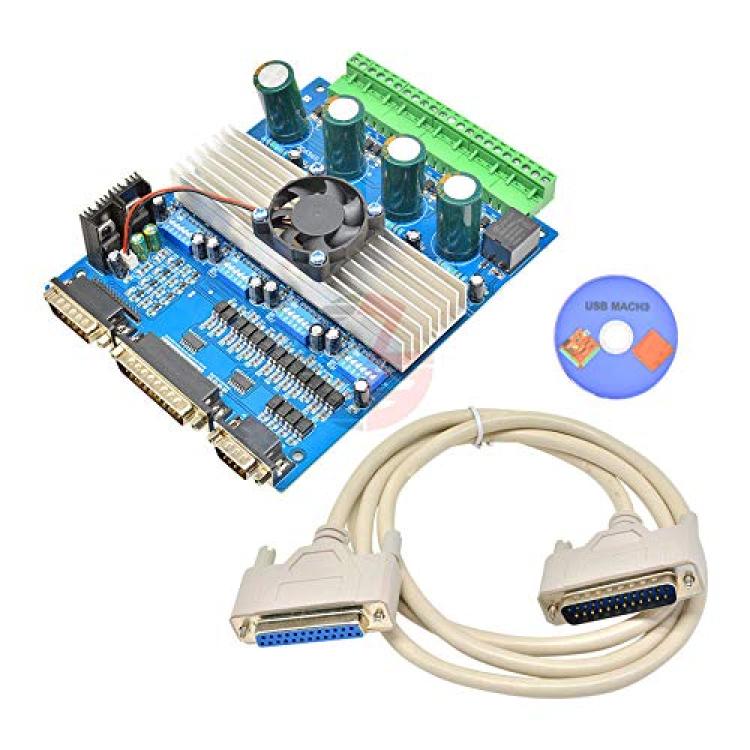

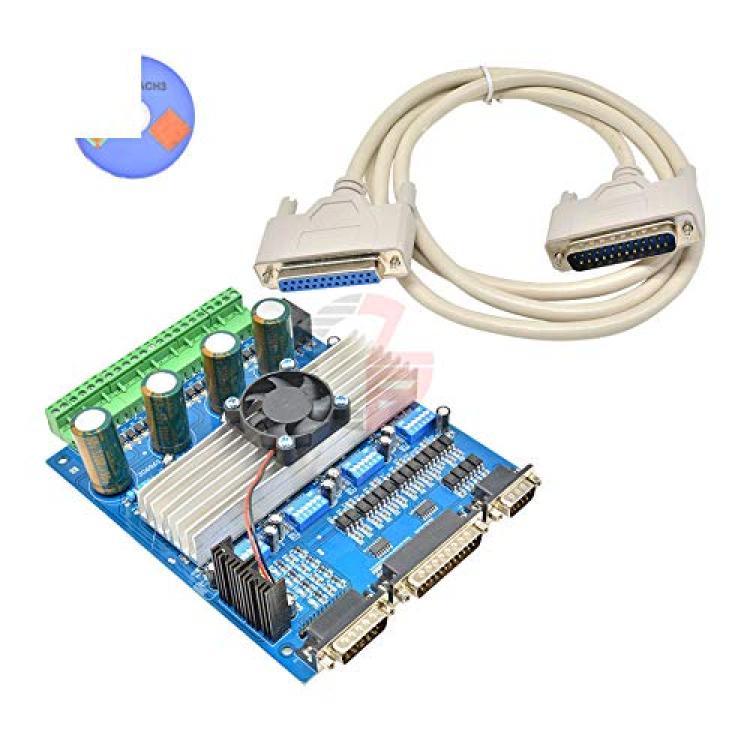

TB6560 DC 12V-36V 3A 4 Axis Stepper Motor Driver Controller Board PWM CNC DC Motor Drive with Fan for Bipolar Stepper Motor

Specification:

Input Power:12-36V DC power supply
Drive current: 15A-3A/phase
Drive type: Double-pole constant flow PWM actuation output
Compatible Stepper motors:2 or 4 phase. 4.6 or 8 lead stepper motors, 3A max.
Dimensions18*11*4 cm (LW*H)


Features:

1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
Adiustable 1.5A-3A drive current settings for each axis-25%50%.75%.100% of full current can be set for different stepper motors
Attention: This driver is the 1.5A-3A version, it's specially designed for stepper motors with rated current from 1.5A to 3A, it's NOT compatible with stepper motors with rated current below 1 5A or above 3AL f the rated current your stepper motors is below 1.5A, you can choose the 0.5A-2.5A version!Please let us know which version (1 5A-3A version is default) vou need immediately after placing a bid
Overload over-current and over-temperature safety -Full protection for vour computer and peripheral equipment !
On board current switching - Power output can be set according to specific user requirement!
Full closed-tvpe optical isolation to protect the user's computer and equipment
Relay spindle interface- Outputs Max, 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this outputl)
4 channel inputs interface- Can be used for XYZ limit and emergency stop
Professional design - Two stage signal processing with super anti-jamming
Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect
Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop
Universal architecture - Supports most parallel software MACH3,KCAM4 etc!For compatibility with other softwares please feel free to contact us

Further Details:

Power supply DC 12-36V (not included, p
