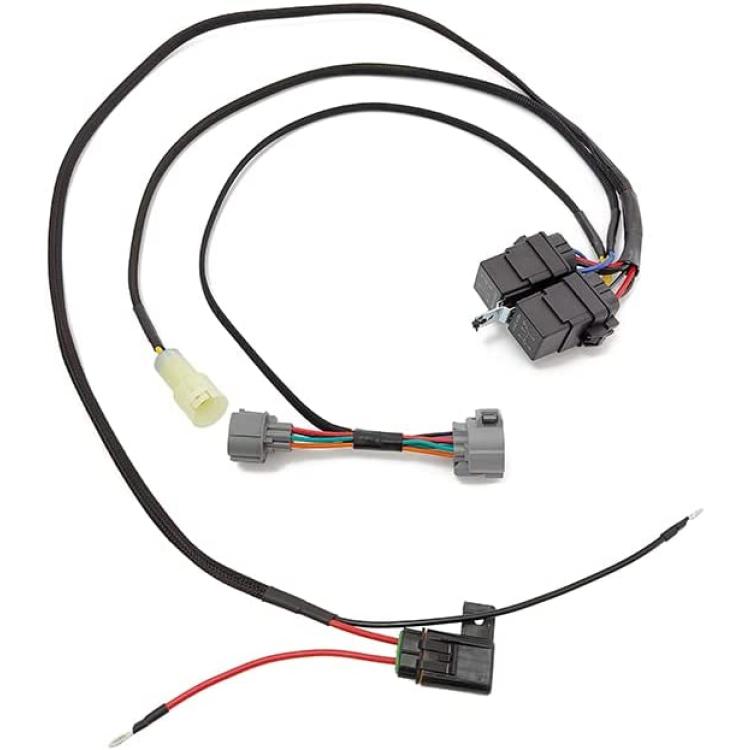

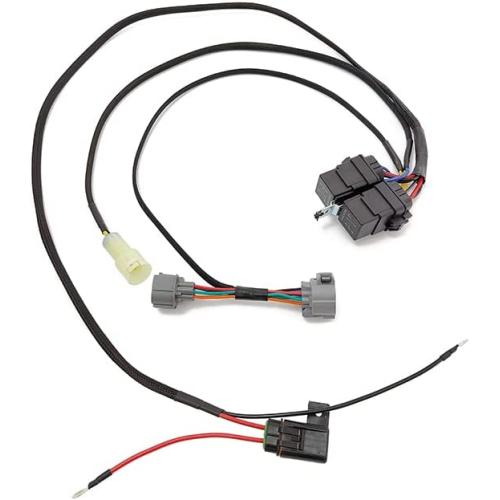

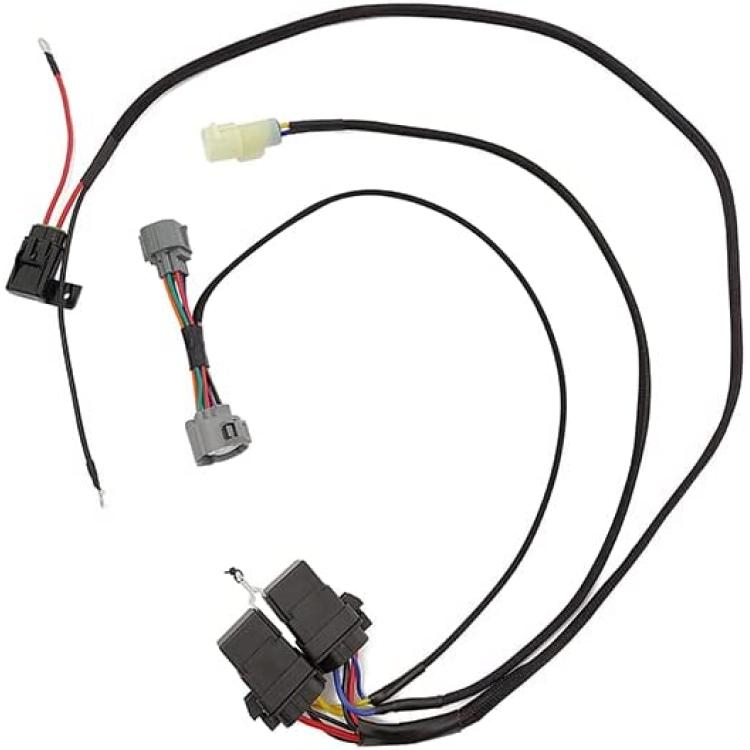

TUCKPATTS Shift Harness Kit Bypass Angle Sensor Shift Motor Computer,Angle Sensor Computer Bypass Wiring Shift Harness Kit for 2000-2006 Honda Rancher 350 ES New

Installation:

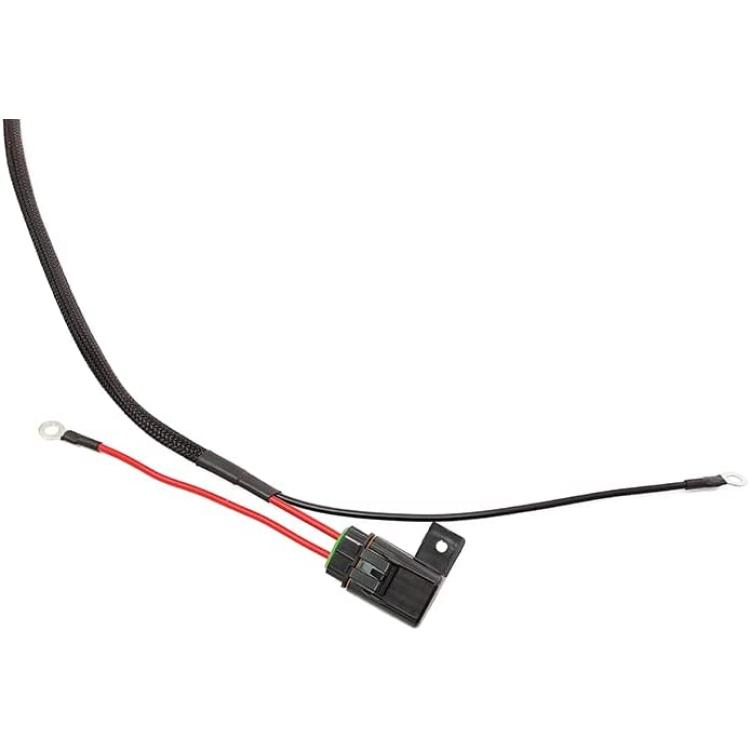

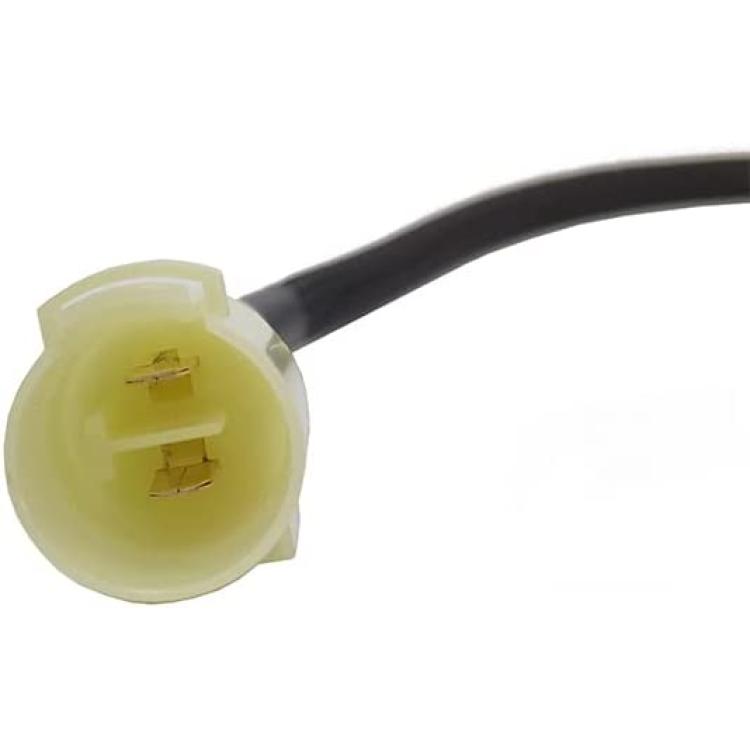

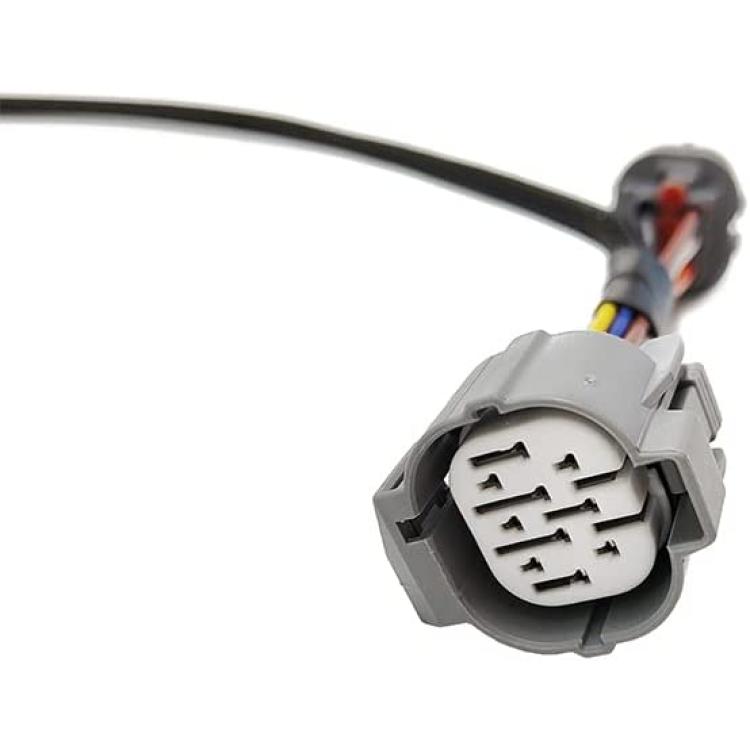

The kit plugs directly inline with your factory left handlebar up/down Large GREEN 10 Wire matching connector goes up front under front fender on front frame rail then plug in the shift motor to the matching kit factory stock plug. Then connect battery to correct terminals.

Converts the ES system into a manual electric shift controlled transmission and will now function the same as a foot shift model would with the ease of the touch of a button for a "On Demand" shift style.

Also great alternative for older electric shift Honda ATV equipped with computer controlled ESP program needing expensive or unavailable parts, or may have oversized tires or gear reduction installed confusing the shift computer and speed sensor not allowing the stock computer to allow it to shift.

Only needs a Good Battery, Shift Motor, and up / down shift buttons on the left controller.

If everything in the transmission and clutch packs are mechanically working properly and you can manually hand shift the transmission thru all the gears with the shift nub and special tool under your seat this kit will force shift the transmission regardless of shift code being displayed.

Does not require any modification to the ATV or its wire harness and can be easily removed and saved for a later time for diagnostics or emergencies or on the trail repairs. Does not require any timers or computers utilizes common Bosch style relays found at any parts store timers are not needed for a constant mesh style hydraulic transmissions bypass not for use on hydraulic style transmissions like Rubicon and Rincon.

Quickly diagnose mechanical clutch or transmission failures by isolating the ESP electrical system from

mechanical problems that can cause ES shift codes quickly and easily without ever pulling the clutch cover.

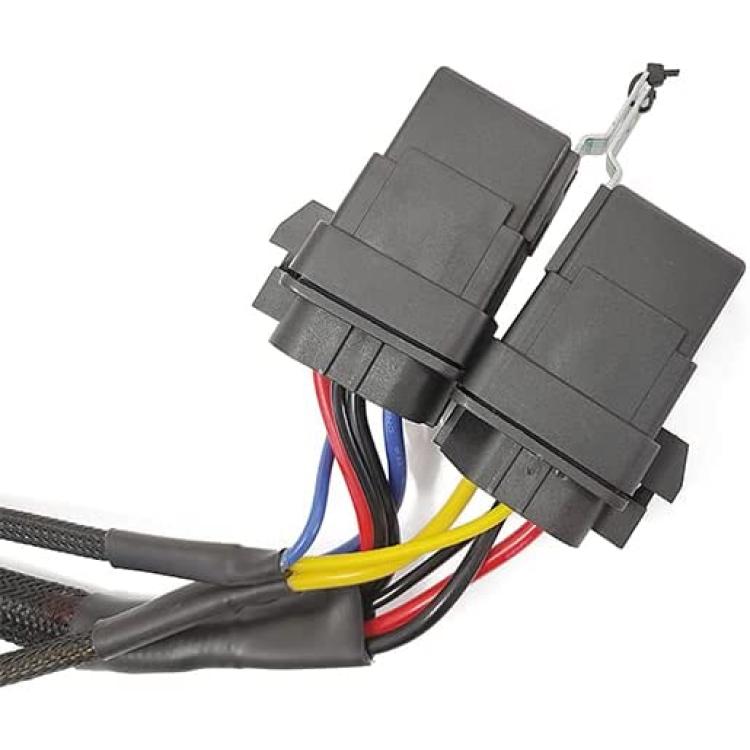

One "bosch style" relay controls the up shift the other relay controls the down shift while using your kno
