L-faster Freewheel 250W Electric Bicycle Gear Motor with 16 Teeth Flywheel Gear and Electric Brush Controller with Fuse Cable

Freewheel 250W Electric Bicycle Gear Motor With 16 Teeth Flywheel Gear And Electric Brush Controller With Fuse Cable

This item is a 250W brush DC motor and a controller.

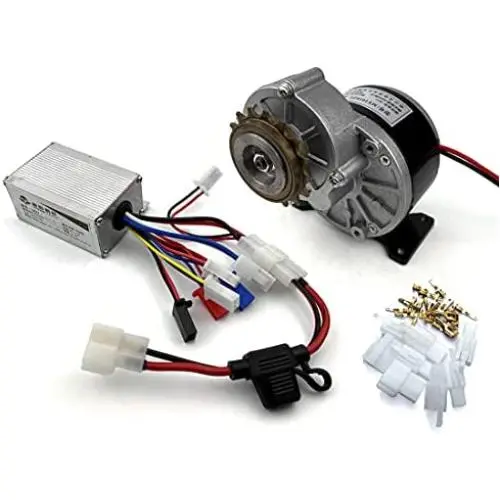

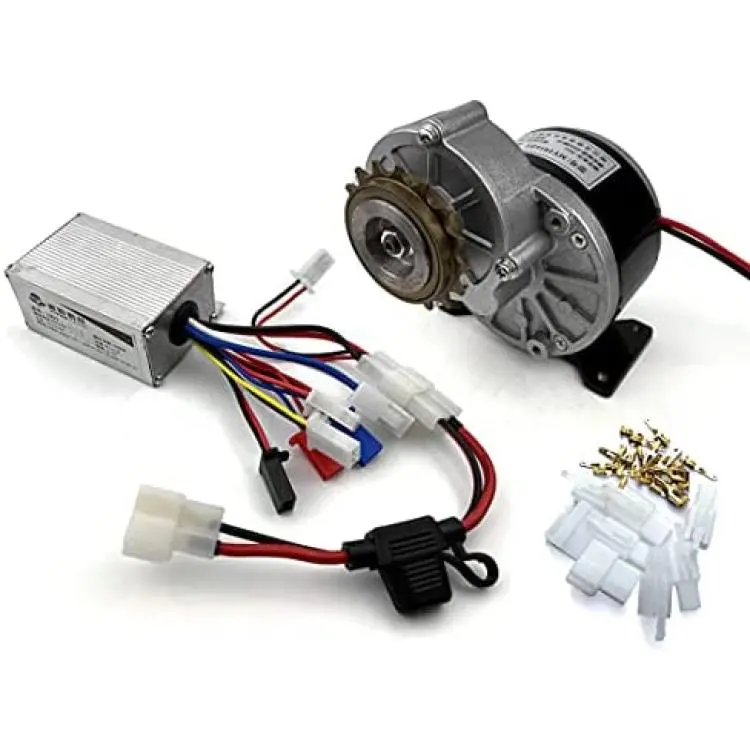

This kit includes:

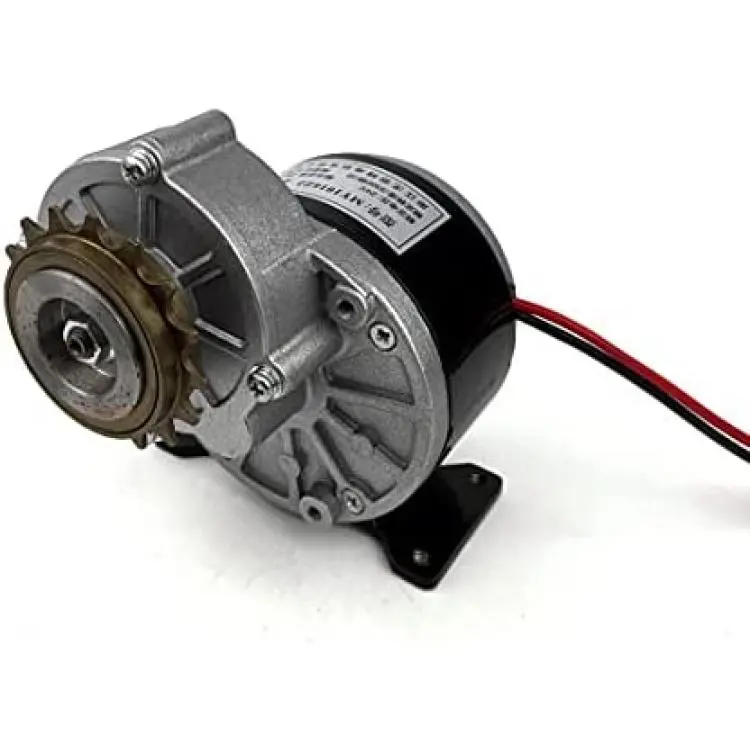

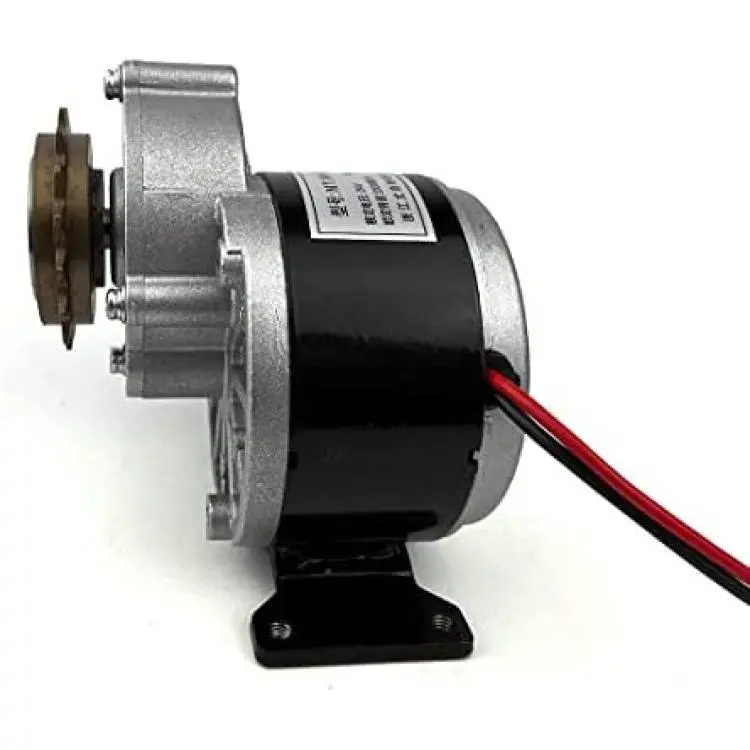

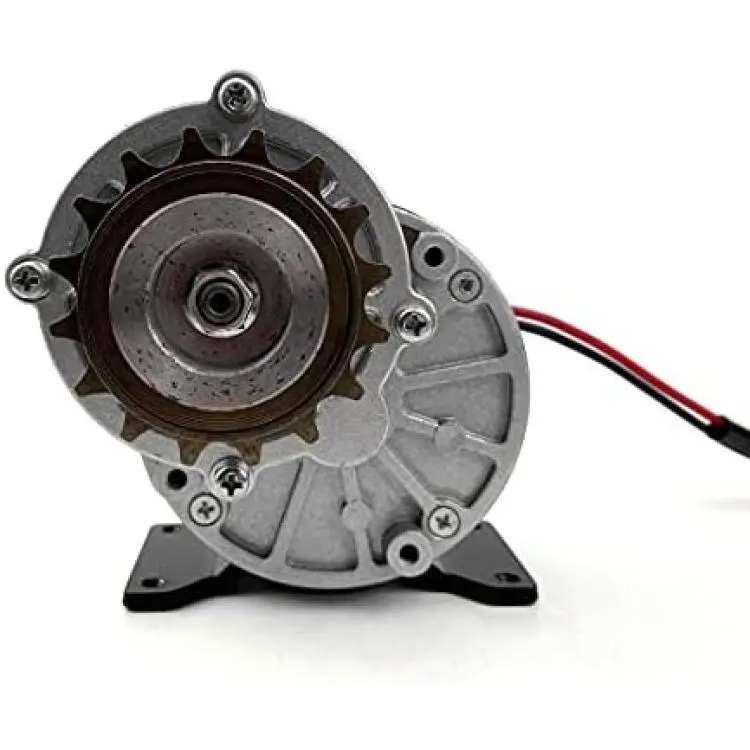

1). 1 x 250W brush motor (with 16T freewheel sprocket)

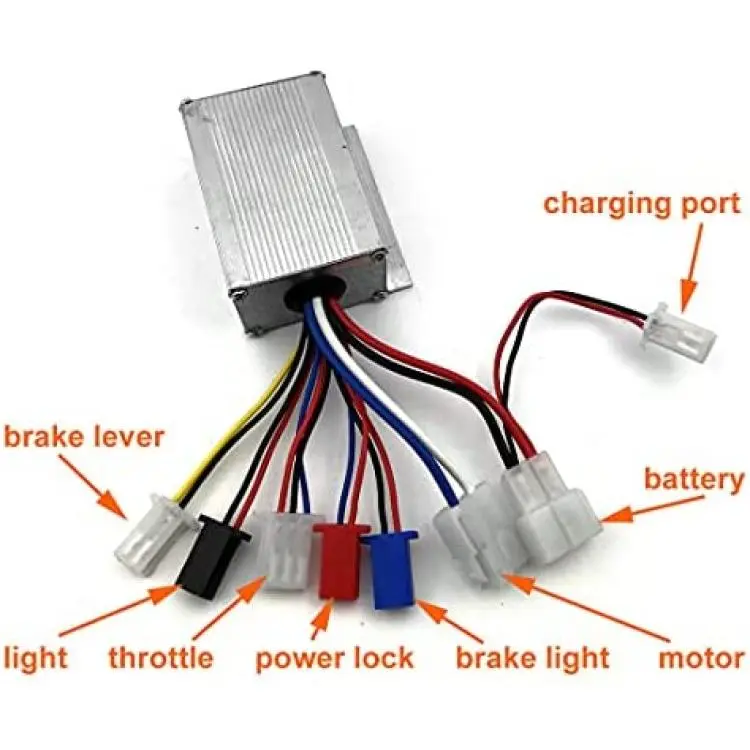

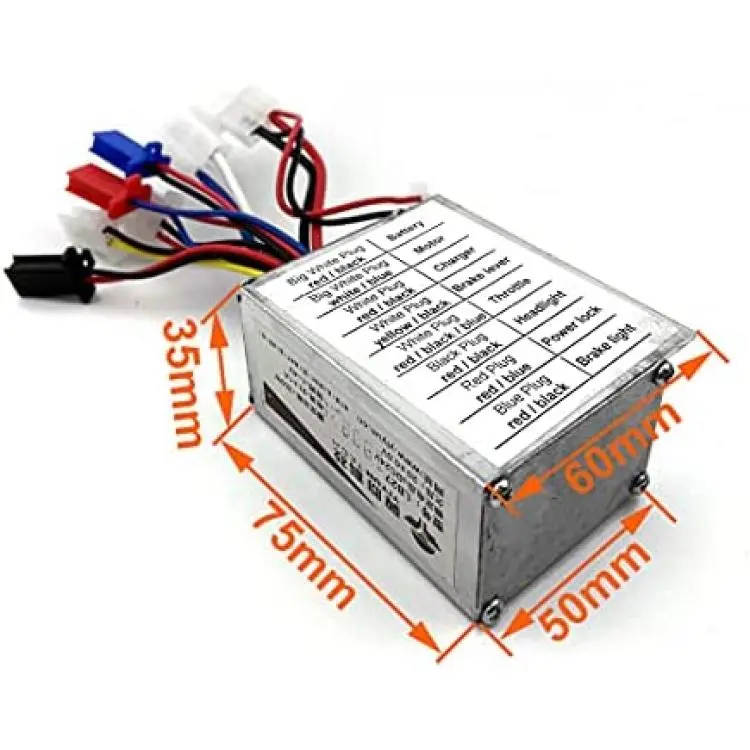

2). 1 x motor controller with fuse wire

3). some connectors

------------------------------------

This motor is a geared motor that with a reduction gearbox, its output speed is slow but its torque is big, so it does not good at run fast.

Usually we use it on the bicycle or cart.



This motor uses a freewheel sprocket, it fits the single-speed bicycle chain 1/2"x1/8", this freewheel sprocket rotates clockwise, for example, when this motor is mounted on a bike left side, it can drive the bike go forward.

If you do not know what motor you should use, please feel free to contact me.

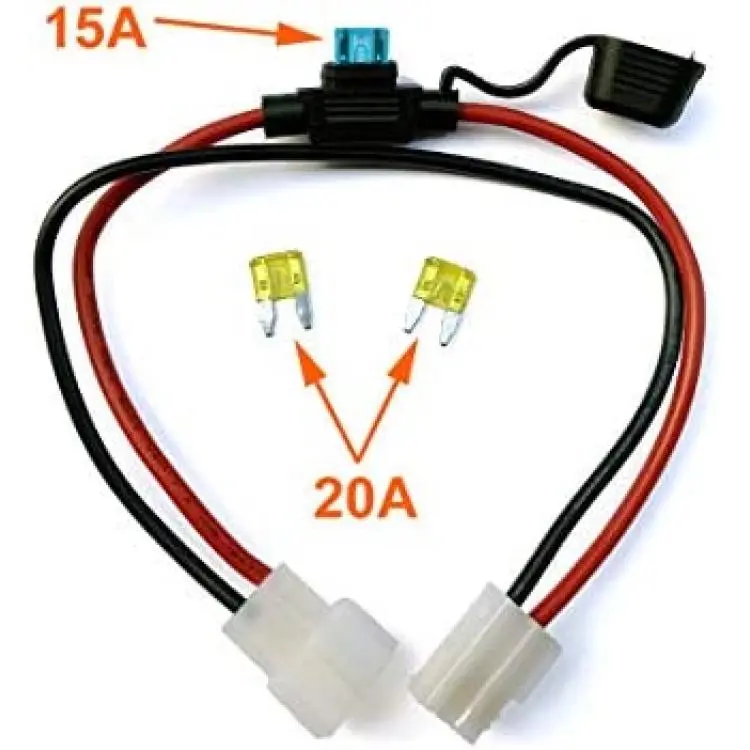

This controller comes with a fuse wire and 3 fuses, if you burn 1 fuse, you'd better note what makes it burnt and avoid this happen again, or please feel free to contact me for help

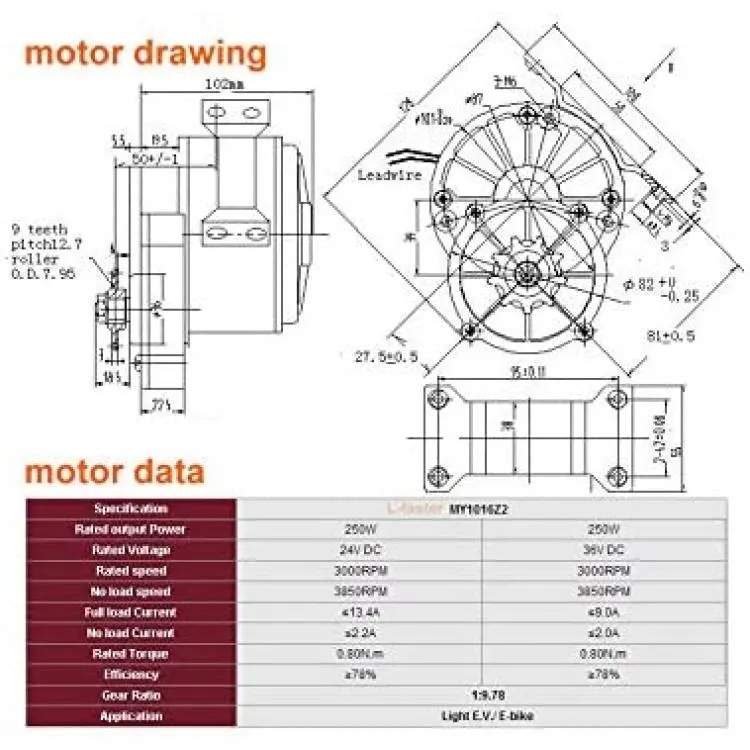

Motor Specification:

Model: MY1016Z2

Voltage: 24V / 36V

Output: 250 Watt

Type: Brushed gear reduction

Sprocket: 16 Tooth freewheel sprocket that fits bicycle chain 1/2"x1/8"

Motor net weight: 2.5 KG
