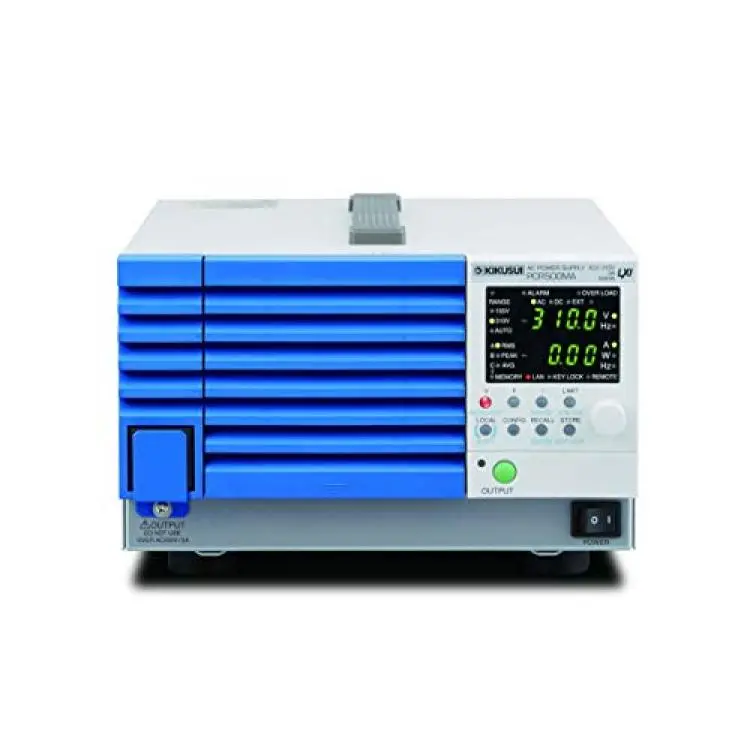

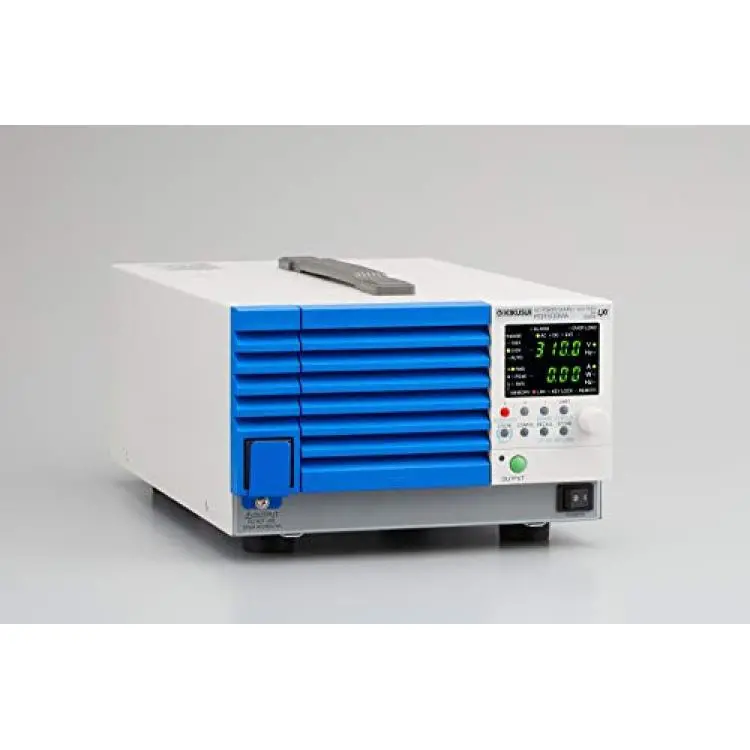

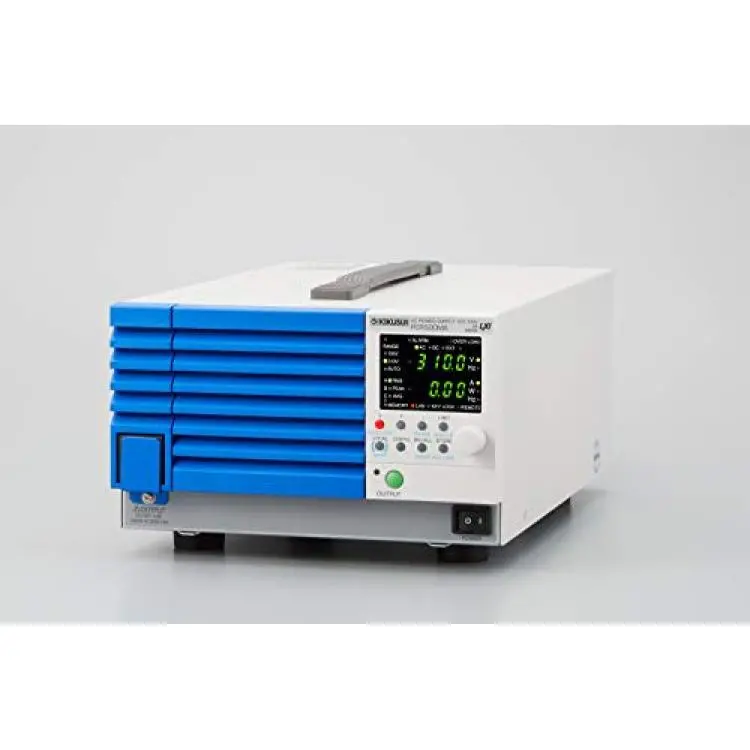

PCR500MA Compact AC Power Supply (CV/CF) 500VA, 0 to 310V, 40 to 500Hz with LAN (LXI)/USB
Availability: Pre-Order, Inquiry Price
About this product
*500 VA, 2 voltage ranges 0 to 155 V/5 A and 0 to 310 V/2.5 A, 40 to 500 Hz
*Setting resolution of 0.1 V and 0.1 Hz and remote sensing
*High quality output waveform: 0.5 % output voltage waveform distortion ratio
*Maximum peak current of 15 A (7.5 A for H range) for capacitor input type rectifier loads.
*Universal input: 100 to 120 Vac/200 to 240 Vac, 50/60 Hz (auto detection at power-on)
Description
The PCR-MA AC power supply series is a PWM inverter type (switching) power supply with capacity of 500 VA and maximum output voltage of 310 Vrms while maintaining a compact, portable design. LAN (LXI) and USB are standard as digital interfaces and SCPI commands and IVI-COM drivers are available for automated testing. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are. Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode (current and power limited to 80 % of AC mode), memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market. It is best for simulating different power mains around the world or use as a high quality constant voltage and constant frequency power source.
