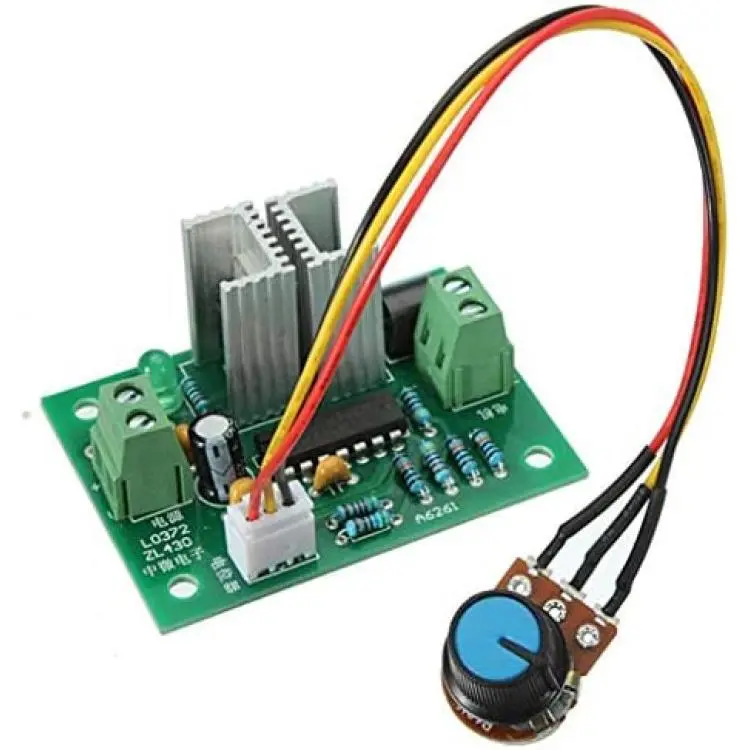

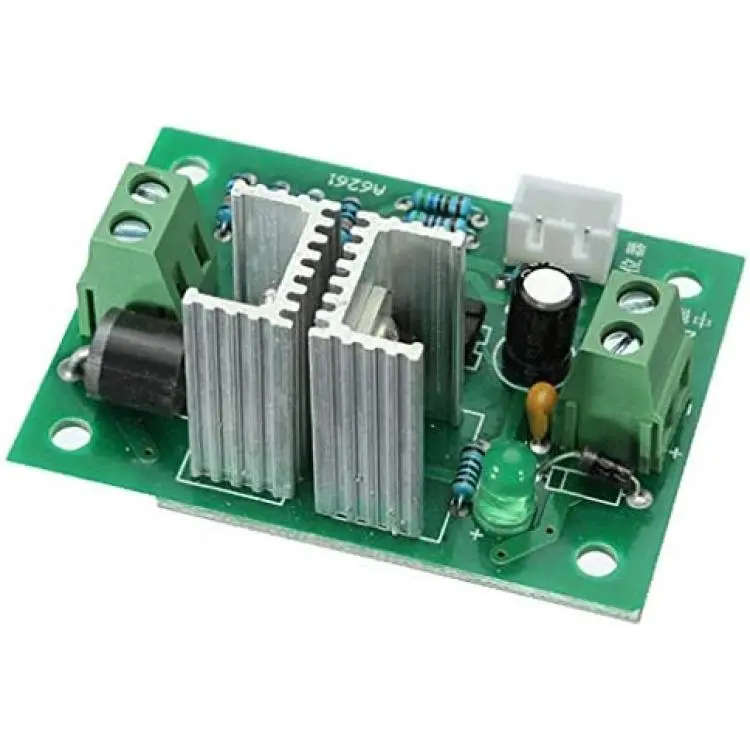

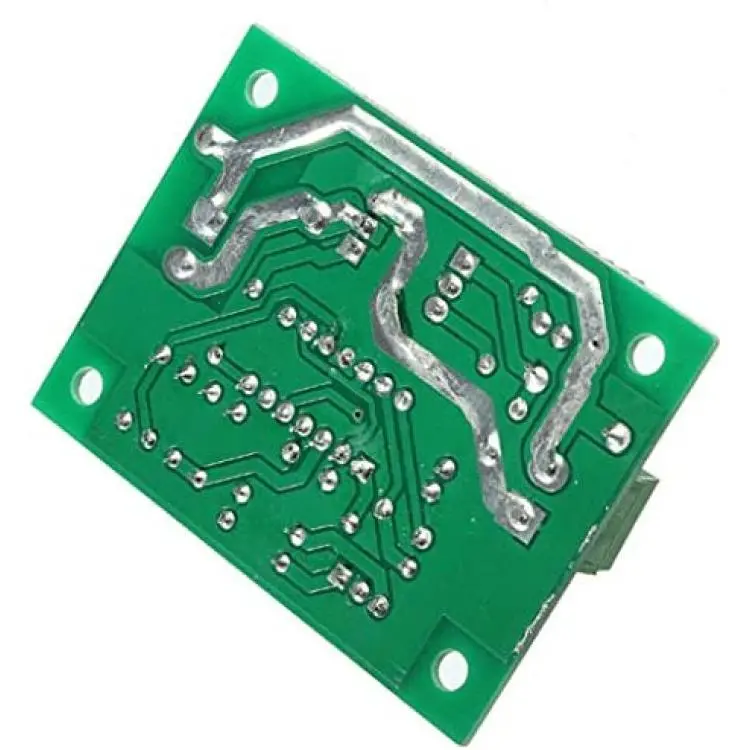

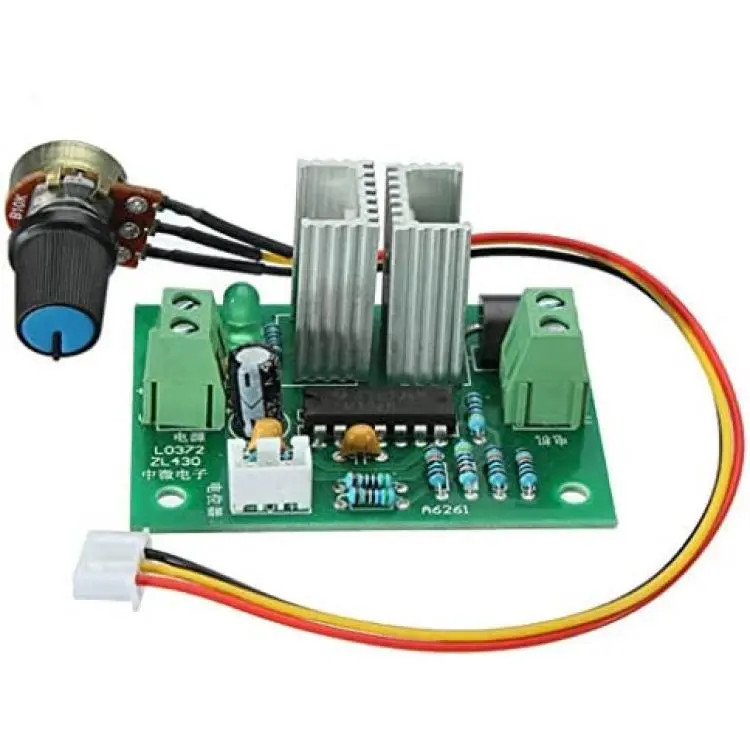

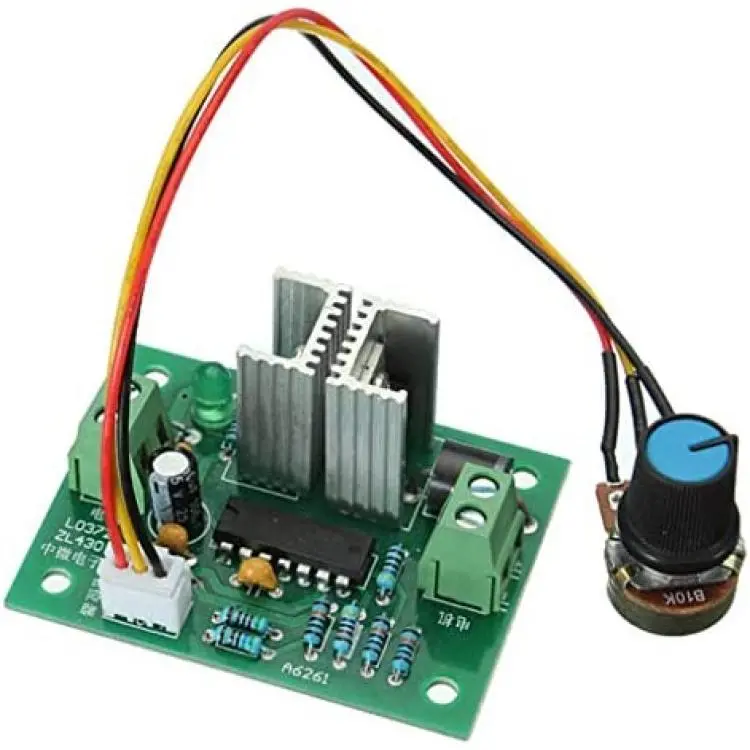

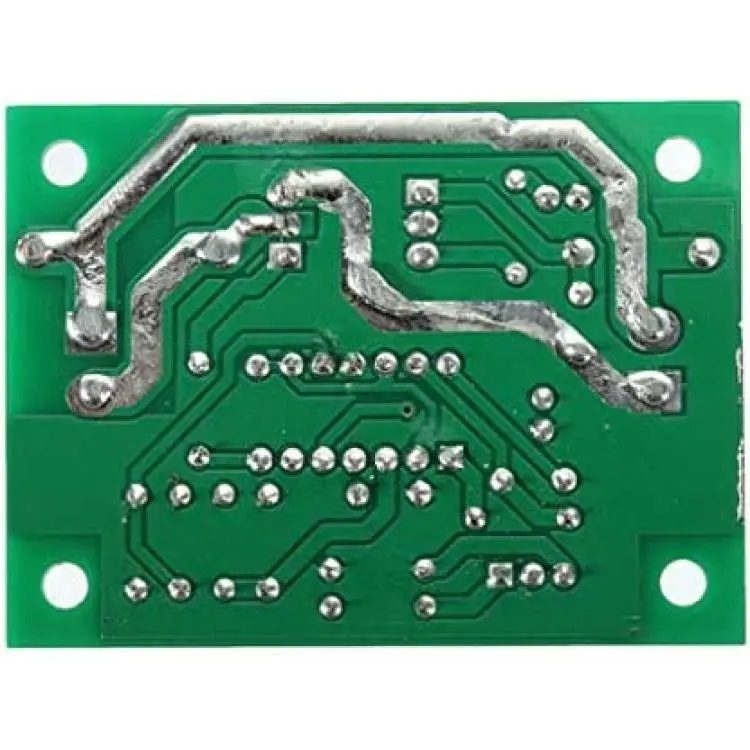

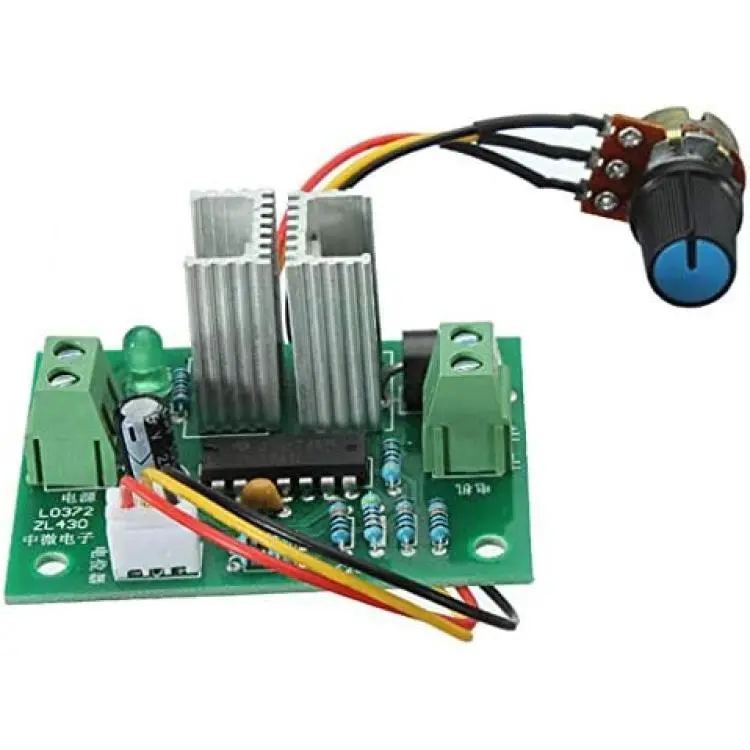

Yongse 3Pcs 12V-24V Pulse Width PWM DC Motor Speed Switch Controller Regulator

Description:

Control the speed of a DC motor with this controller
Control the light of a lamp with this controller
High efficiency, high torque, high power, high heat dissipation
With overcurrent protection
The high quality COMBICON improve the stability of circuit

Specifications:

Input voltage: DC12V-24V
Sustained current: 3A, max. 6A (need to add a cooling fan when max. current)
PWM duty cycle: 0 -100%
PWM frequency: 500KHz
Material: plastic, metal
Size (L x W x H): 6 x 4.4 x 2.7cm / 2.36 x 1.73 x 1.06inch

Package included:

3 x PWM motor regulator speed control switch
3 x External potentiometer with 200mm wire
