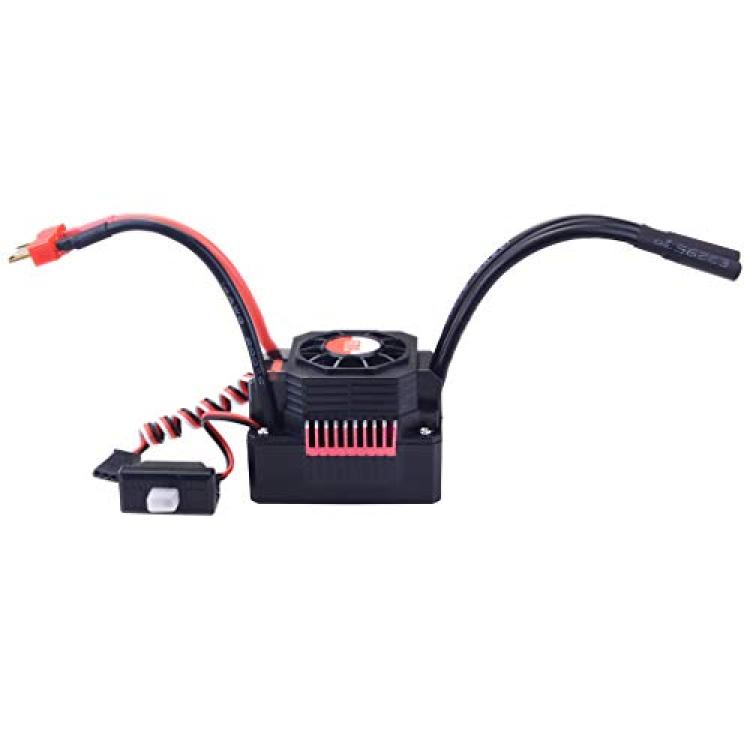

DollaTek Waterproof 60A Brushless ESC Electronic Speed Controller for 1/10 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*60A brushless waterproof esc for 1/10 rc car,brand new and quality guaranteed.Easily programmed and compatible with pocket-sized program card.
*Water-proof and dust-proof for all weather races (Note: Please uninstall the cooling fan before using the ESC in water; clean and dry it soon after the usage for avoiding the connectors get rusty.)
*Excellent set-up,acceleration and linearity features,strong resistant current capability,good heat dissipation.
*Many safety design: Low voltage cut-off protection / over-heat protection / throttle signal loss protection/throttle signal loss protection/Motor blocked protection.
*Suit for 1/10 rc car,compatible with sensored brushless motor. Cont. current: 60A,burst Current: 360A,resistance :0.0007ohm,battery: 2 cells lipo/ 4-9 cells NiMH,BEC output: 5.8V/3A（switch mode）
Description
Specifications:
Cont. Current: 60A
Burst Current: 360A
Comptible Motor Type: Sensored brushless motor
For 2s lipo or 6 cells NiMH:
1. On-road: 3660-size or smaller motor with the KV<6000
2. Off-road/Buggy/ Monster: 3660-size or smaller motor with the KV<4000
Suitable car: 1/10 rc car
Resistance :0.0007ohm
Battery: 2s lipo
BEC output: 5.8V/3A?Switch mode?
Dimensions: 51.5* 38.5* 38.5mm
Weight: 76g
Instructions:
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished,the motor emits"Beep-Beep"tone
6.When the throttle stick is in the neutral position,the motor re-emits "Beep-Beep"tone
7.The ESC is workable
Trobleshooting:
1. If after power on motor can't work on,no sound is emitted,please check the connections between battery pack and motor
2. If after power on,LED flashes,please check the valtage of battery pack,which should be from 5V-13V
3. If the motor emits a"Beep-Beep"tone Only,please check all the connections:BEC wires,trasmitter and receiver,throttle signal wires,etc.please check the transmitter TH TRIM and adjust it to the motor re-emits "Beep-Beep" tone
Package Including:
1 x 60A Brushless Waterproof ESC
1 x User Manual
