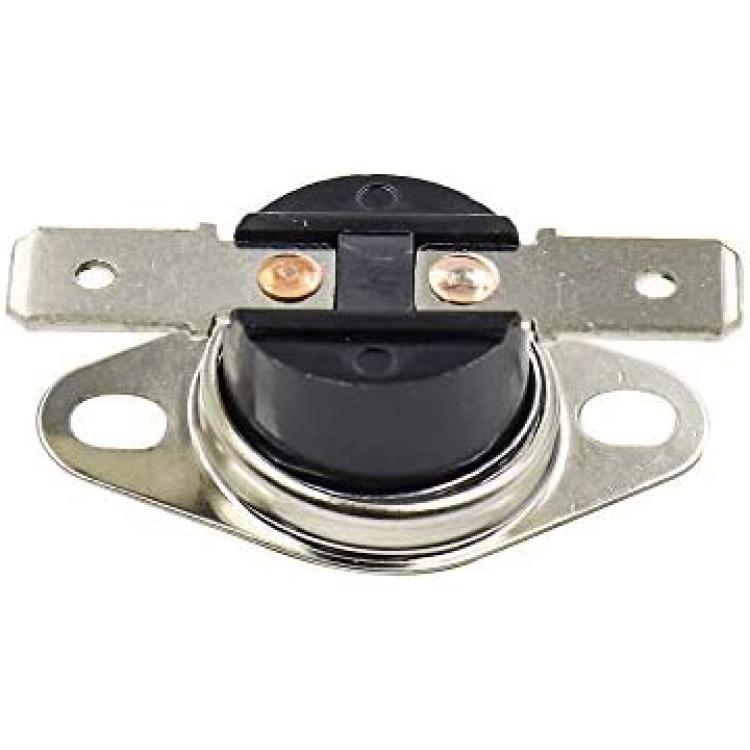

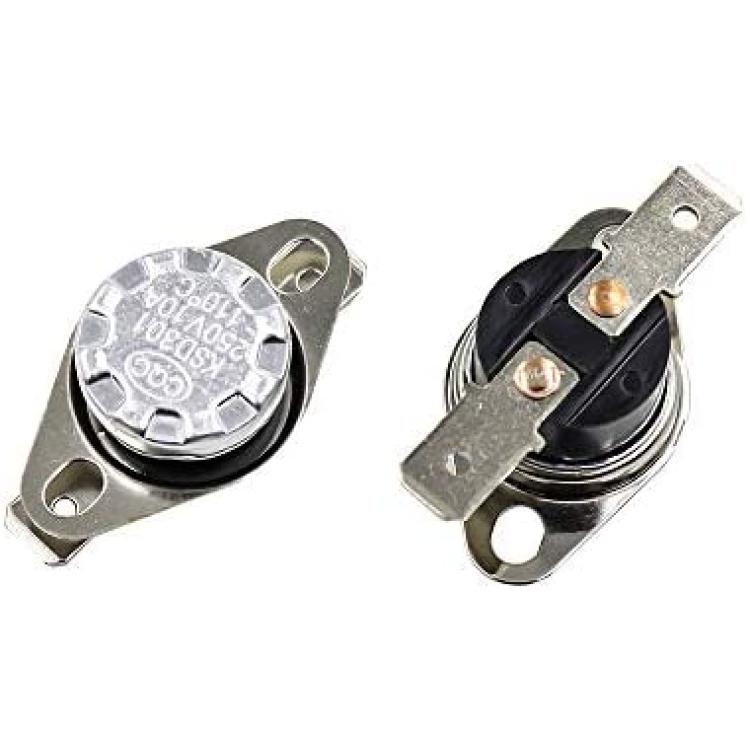

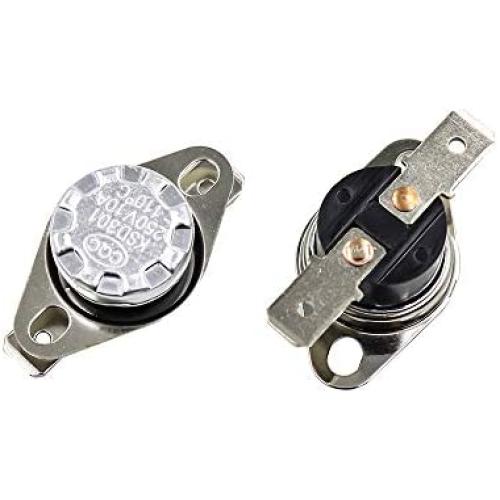

BokWin 2PCS KSD301 Thermostat 110°C 250V Normally Closed N.C Snap Disc Limit Control Switch Microwave Thermostat Thermal Switch

Technical Parameters:
Model: KSD301
Contact Resistance: ?50m?
Action Temperature: 110°C
Temperature accuracy: ± 5 °C
Enclosure protection level: IP00
Insulation Resistance: ?100M?
Action type: Normally Close, Auto Reset.
Contact Life: More than 50,000 times (action times).
-Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon.


Features:
?Electrical parameters: AC250V | 50 ~ 60Hz | 10A | 110°C (resistive load).
?Grounding method: Ground the device with the thermostat metal cover.
?Contact form: NC, temperature rises, contacts open, temperature drops, contacts open.
?Electric strength: AC 50Hz 1800V lasts 1min, there is no flicker and no breakdown between live metal parts and non-live metal parts.


Installation Steps:
1. Install ordinary movable ring.
2. Install small round movable ring.
3. Install flat movable ring.
4. Ordinary large aluminum cover with installation hole, and extend aluminum cover with installation hole.


Notice:
1. In the case of contact temperature-sensitive installation, the metal cover surface should be close to the installation surface of the controlled appliance.
2. In order to ensure the temperature-sensing effect, the temperature-sensing surface should be coated with thermally conductive silicone grease or other thermally conductive medium with similar performance.
3. Do not allow liquid to penetrate into the thermostat, do not cause cracks in the casing, and do not change the shape of the external terminals at will.
4. The product is used in a circuit with a current not greater than 10A, and the copper core cross section should be 0.75-1.5?² wire connection.
5. The product should be stored in a warehouse with a relative humidity of less than 90% and a clean, dry, non-corrosive gas at an ambient temperature below 40 °C.
