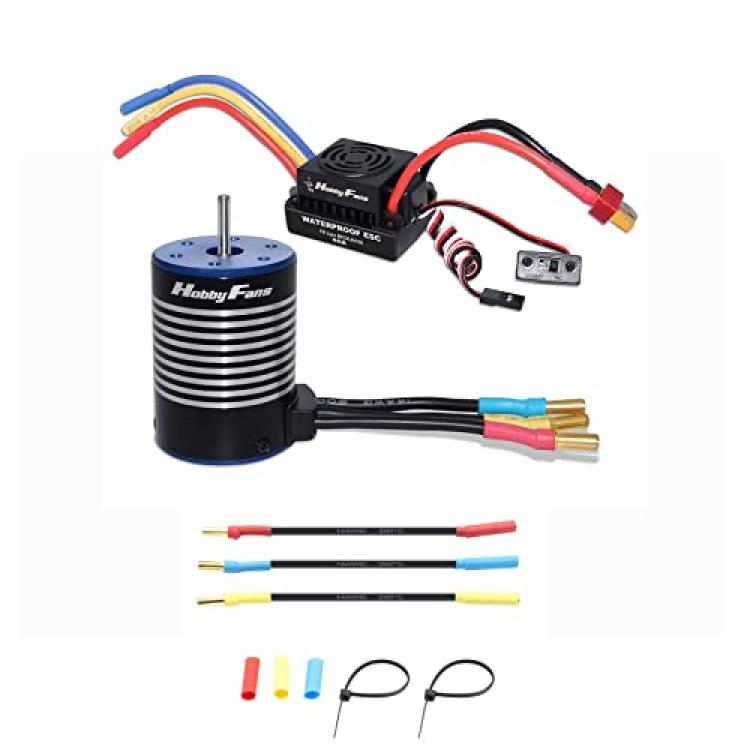

Hobby Fans Upgrade Waterproof 3650 4300KV Brushless Motor 3.175mm Shaft and 60A ESC Combo Set with 3Pcs Extension Cable Wire for 1/10 RC Car Truck
Availability: Pre-Order, Inquiry Price
About this product
*Date First Available : May 19, 2022
Description
Features:Â
?4 pole?4 pole 12 slot high-torque motor design, suitable for 1/10 scale RC car.
?High performance?High purity copper windings maximizes efficiency.
?High Torque?Precision engineered for maximum energy conversion. Precision balanced rotor, smoothness for best reliability and maximum RPM.
?Superior Material?CNC machined 6061 T6 billet aluminum heatsink can. ESC has enhanced throttle response, excellent acceleration, powerful interruptions and super smooth and accurate throttle linearity.
?Note?When the connetion completed, if the esc keep beeping, there are 2 solutions: 1. rebinding the controller and its receiver; 2.re just the neutral position of the controller throttle.
Motor Specifications:
Size: 3650
Watts: 900W
Max voltage: 12V
Max Amps: 73A
KV(RPM/Volt): 4300KV
Max RPM: 50000
Diameter: 35.8mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm

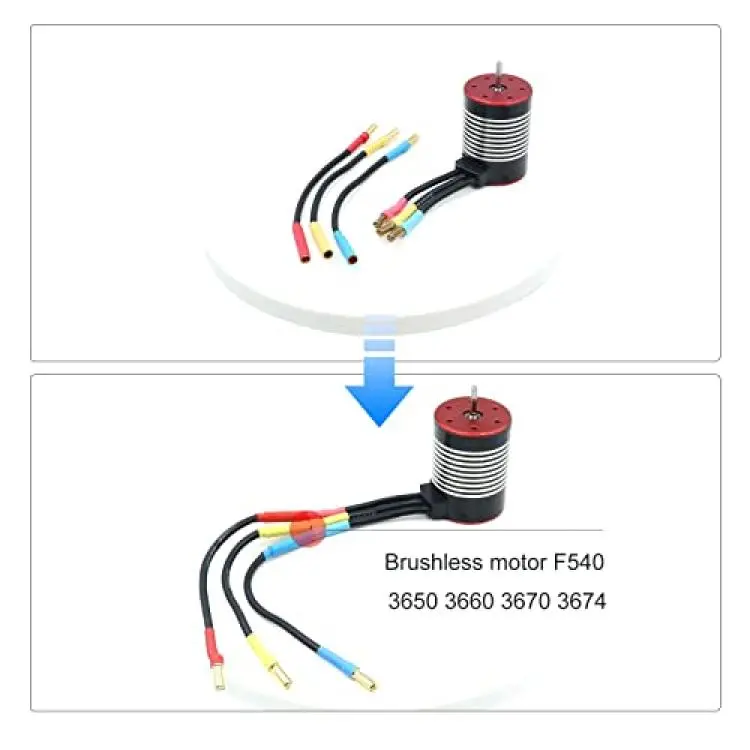

Plug type: 4mm golden banana plug
60A ESC Specification:
ESC Size:Â 50×35×34mm/2×1.4×1.3in
ESC Constant Current:Â 60A
ESC Burst Current:Â 320A / 10sec
Battery:Â 2 - 3 Li-Po / 4 - 9 Ni-Mh Batteries (Not Included)
BEC:Â Yes
BEC Output:Â 5.8V / 3A
Power Connector of ESC:Â T Male Plug

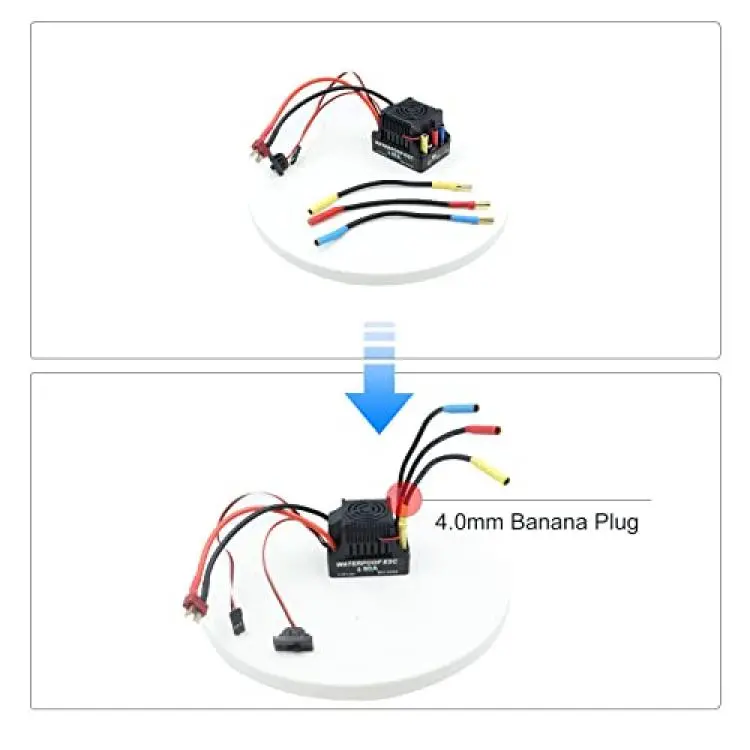

Motor Connector of ESC:Â 4mm Banana Female Plug

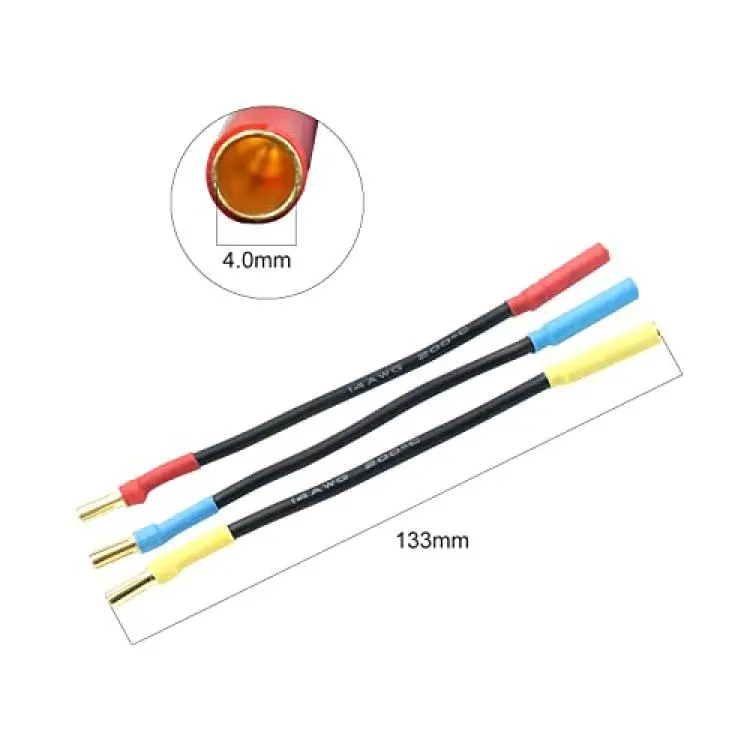

Item Type: 4mm Banana Plug Extension Cable
Material: Silicone Wire
Cable Color: Black
Product Length:Approx. 13cm / 5.1in
Joint Diameter:Approx. 4mm / 0.2in
Applicable:For RC Car, Boat, Aircraft and Other Motor Esc Connection
Package Including:
1 X 3650 4300KV Motor
1 × 60A ESC
