Bemonoc DIY Design DC 24V High Speed 500Rpm Linear Actuator Reciprocating Motor Stroke 12/16/20/25mm
About this product
*✔Type: 37GB555 Reciprocating Cycle Linear Actuator Motor; Volt: 24V; No-load Speed: 500RPM; Stroke: 20mm; Rated Torque: 0.84kg.cm;

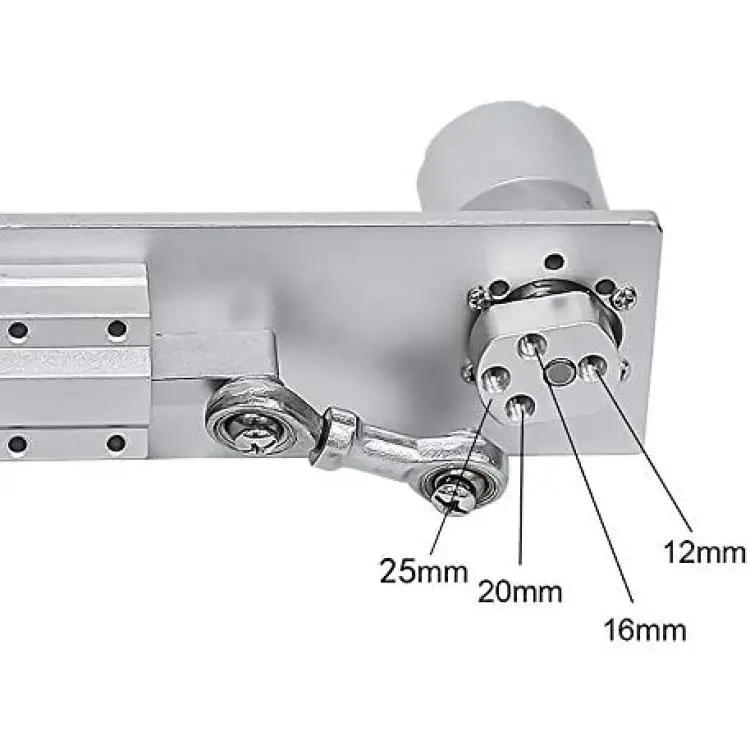

*✔Sweet Tips: You can adjust Stroke 12/16/25mm by yourself ; The same speed, the stroke is longer, the torque is smaller; The speed is faster, the torque is smaller; pls click the fourth picture to find the other stroke torque;
*✔The actuator made of aluminum alloy, very sturdy construction inside and outside. The outside shell is well build and has excellent access to mounting screws;
*✔Widely used for Shale shaker, Vibrating screen, Incense machine Squirt machine, Spraying Machine, Pellet machine, Particle-making Experiment, Lifespan lab testing and so on;
*✔Package Listing: 1unit x Reciprocating Cycle Linear Actuator Motor.
Description
Features:
This Linkage Mechanism is an automatic constantly reciprocating linear actuator motor, which frequency is Variable.
This machine output in an axle, the run speed on axis is Non-uniform. If require speed uniform pls don't bid.
This machine is Non-standard manual production, the surface is rough. If require surface precise pls don't bid.
The speed faster, the noise louder. If require quietly, please be careful before bid.
Linear motion part is consist of sliding linear ball bearing and steel axle. Axle need adds lubricating oil at regular intervals, in order to limited axle temperature less than 90 degrees, and oil wetness.
Due to rotating lump is affected by gravity, the machine go and back speed is different.
If you want to control speed, you can add a PWM DC motor speed controller for this.
Warning: the load larger than maximum force will break gearbox. Pls clear all barriers before operate the motor, even use your hand holding the shaft may break the motor. according to our advice can avoid unnecessary trouble!!!!
Many customers have already broken the gears inside without proper operation, it causes much trouble.
