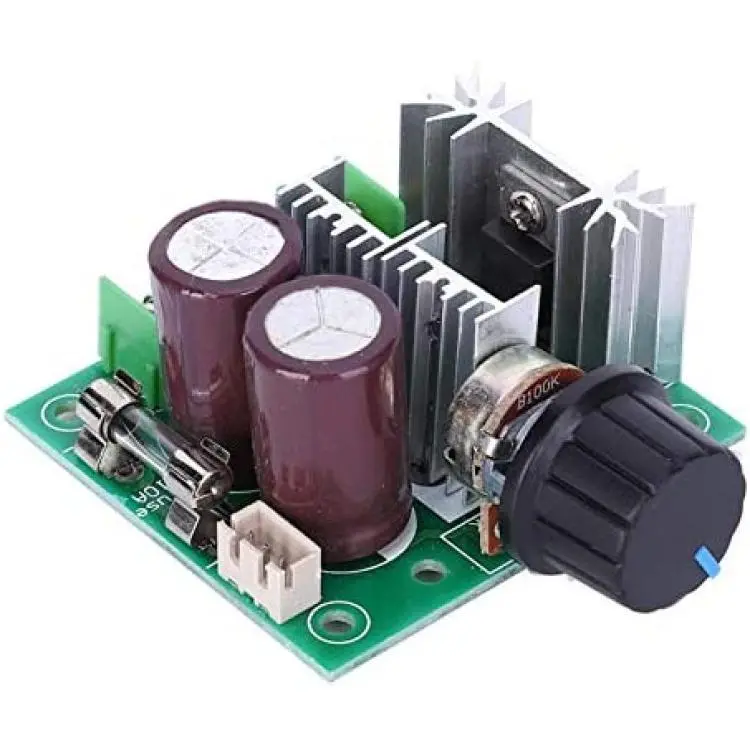

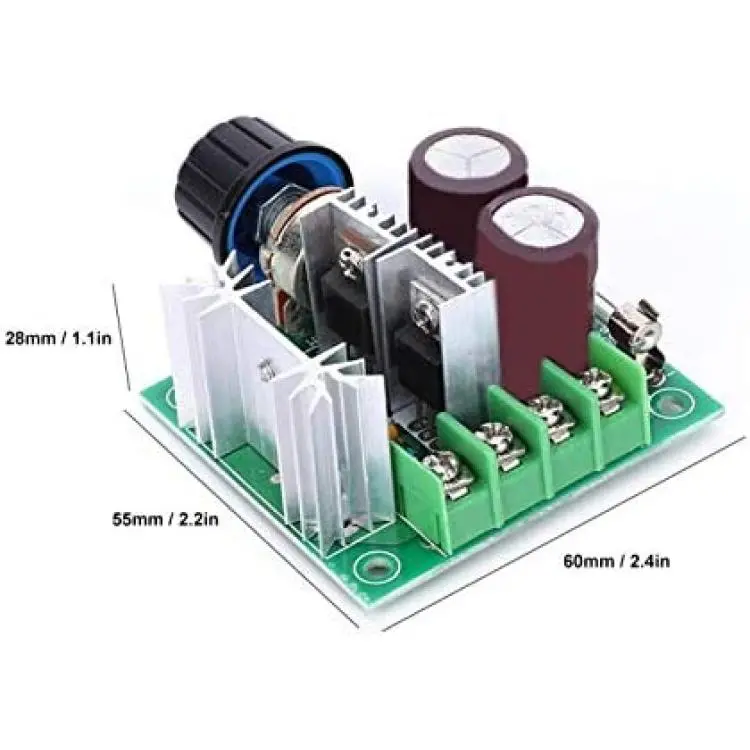

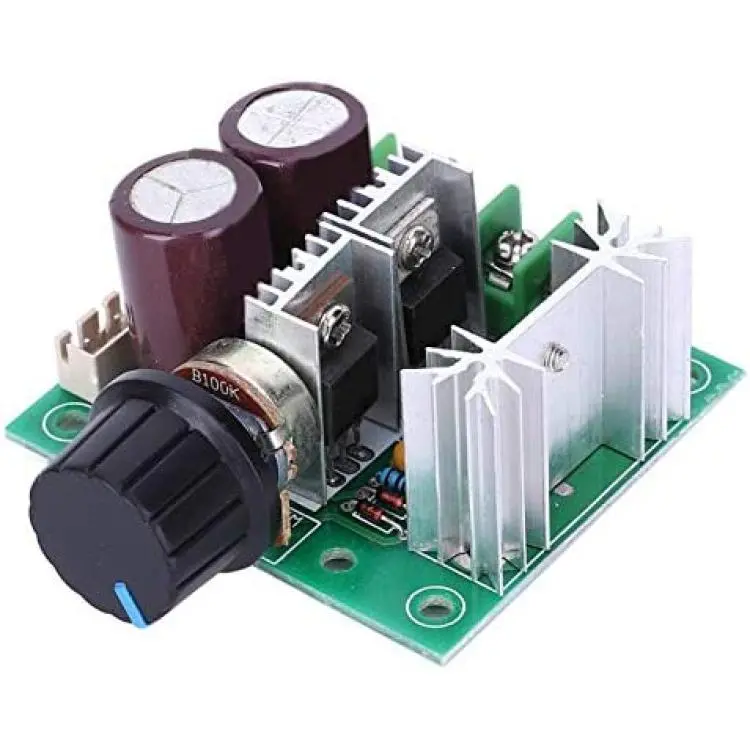

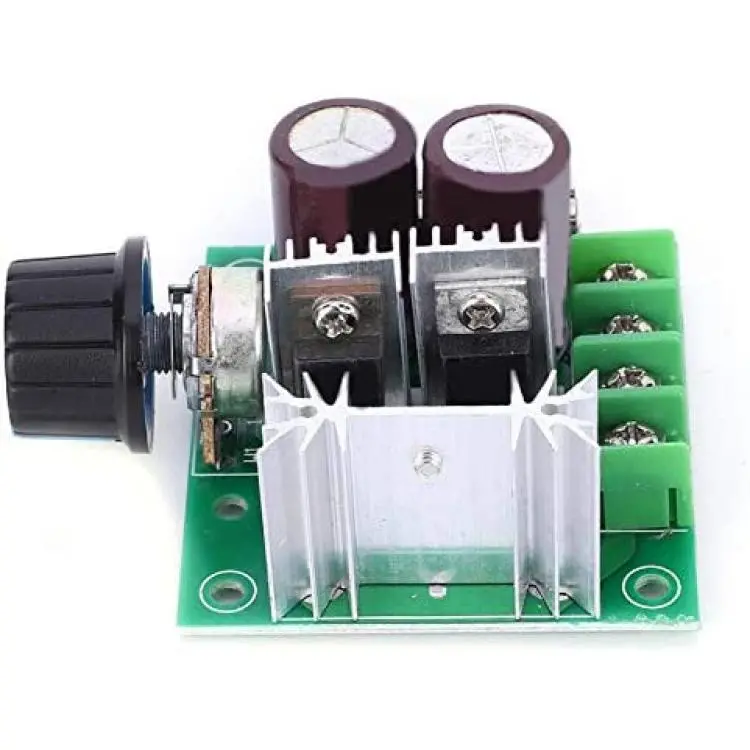

FTVOGUE PWM Controller,Change High Efficiency DC Motor Speed-Control Switch 12V-40V 10A ,Control Switch

Feature:

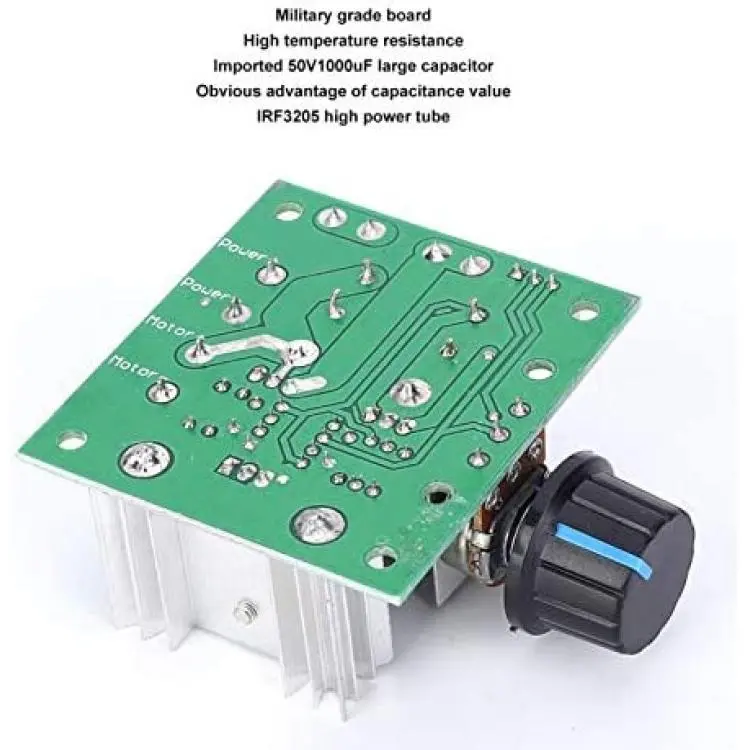

1. The circuit board is made of military grade board with strong high temperature resistance
2. Equipped with imported 50V1000uF large capacitor, capacitance value advantage is obvious compared with other types of governors 100-220uF
3. The power tube uses high power IRF3205, you can never worry about driving your motor
4. Speed control range is 10%-100%, which achieve real stepless speed change
5. This module possess high efficiency, widely used in most DC motor speed control

Specification:

Package List:

Note:

1 The input of the DC motor governor is direct current, and cannot be directly connected to alternating current (such as household 220V alternating current), otherwise it will burn out.

2 The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.

3 The motor can be positive or negative. When the running direction is not consistent with expectations, the direction can be changed by adjusting the line sequence.

4. The potentiometer knob can change the output duty ratio of the governor, thereby changing the motor speed.
