540 Brushless Motor 1/10 3650 5900KV 3.175mm Shaft Waterproof Brushless Motor for 1:10 Scale RC On-Road Car

540 Brushless Motor 1/10 3650 5900KV 3.175mm Shaft Waterproof Brushless Motor for 1:10 Scale RC Car

Features:

?Specially designed for 1/10 rc racing car, waterproof, suitable for various condition races, a good choice for your rc racing car.

?4 pole 12 slot High-torque motor design,high torque high efficiency,
much faster acceleration response and very stable output of power to the drivetrain.

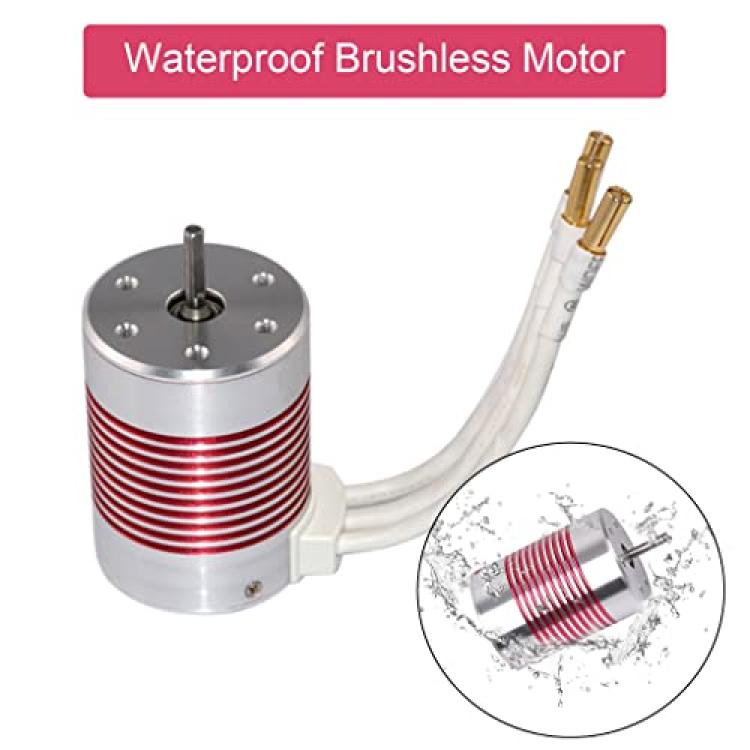

?The waterproof function let your car challenge the muddy road, fearless!
Notice:

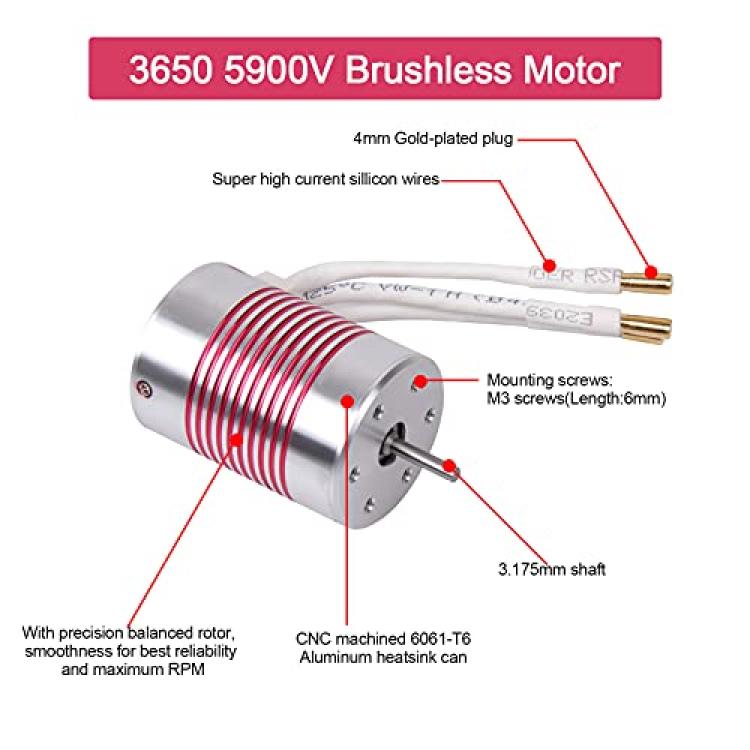

**When you install the motor, please do not make the screw into the motor over 6mm, otherwise,
the screws will interfere with the operation of the copper windings in the motor,
causing the motor to be locked or even damaged.
**Due to the high KV value of this motor, please use above 80A ESC.

**The motor fits 2-3s battery (2s bettery is recommended for ESCs below 100A),
please do not use 2 batteries together, especially 3S batteries.

**A wrong tooth ratio can cause the motor to overheat. The motor temperature should be lower than 212? during the operation.
Temperatures above 212? will weaken the magnet and may partly melt the coils and eventually damage the ESC (because of strong current)!
To avoid potential risks such as ESC/motor damage or malfunction caused by overheat,
start with a very small pinion first and check the ESC & motor temperatures regularly throughout the run.
This is the only way to prevent overheating!!!

Specifications:

Watts: 900W
Max voltage: 12V
Max Amps: 75A
KV(RPM/Volt): 5900KV
Max RPM: 50000
Shaft length: 15mm
Shaft diameter: 3.175mm
Diameter: 36mm
Length: 50mm
Plug type: 4mm golden plated plug

Package Including
1 X 3650 5900KV Motor
1 X Product Manual
