GLOBACT Waterproof 550 Brushed Motor 12T and 80A ESC Brushed Motor ESC Combo BEC 5A 7.4V/6.4V for 1/10 RC Truck Car Traxxas Slash 2WD 4×4 Arrma Granite Senton Typhon 4×4 Redcat Axial HPI (TAMIYA Plug)
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 3.94 x 3.07 x 2.52 inches; 1.76 Ounces
*Item model number : 246
*Date First Available : August 13, 2021
*Manufacturer : Globact
Description

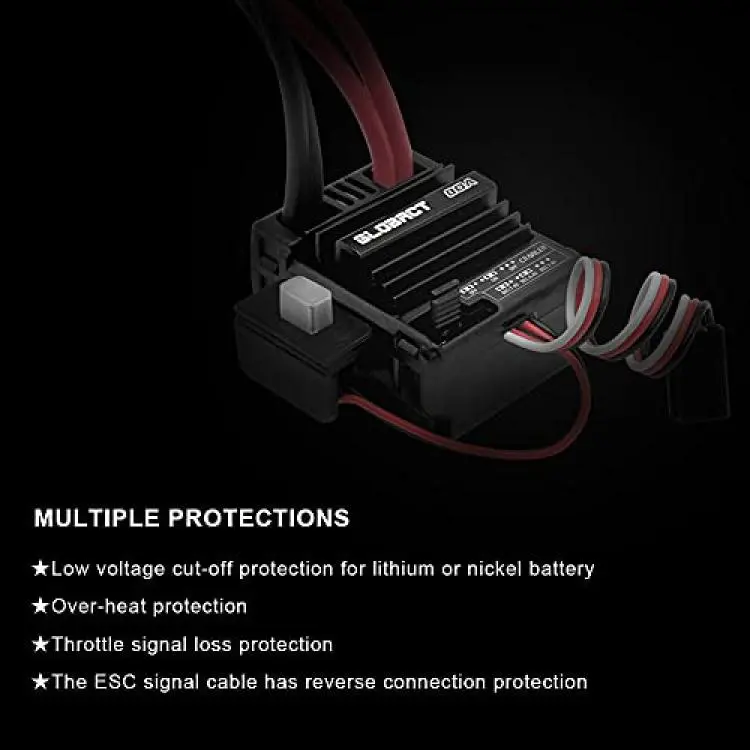

ESC Specifications:
Product Name: Globact Brushed 80A ESC
Type: Brushed
Waterproof level: IP65
Forward: persistent current/peak current: 80A /320A
Reverse: persistent current/peak current: 40A /160A
Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cells NiMH)
BEC output: Switch Mode: 5A 7.4V/6.4V Adjustable

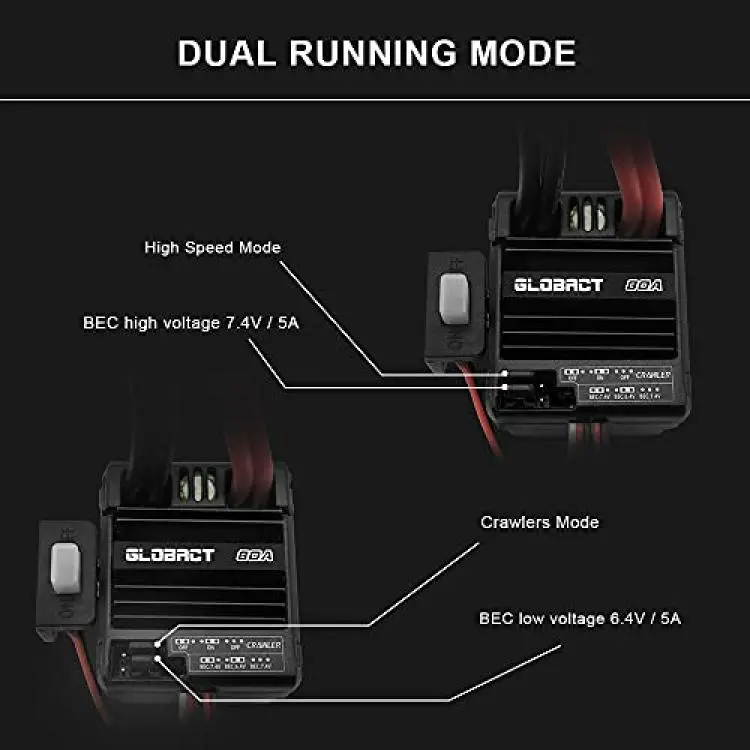

Running mode: Crawlers & High Speed Adjustable (Forward / Reverse)
ESC Programing via: Program Port Jumper Cap
Input Connectors?Big-sized TAMIYA Connector
Output Connecotors?4.0 Bullet Connectors (Female)
Size?42x35x27mm
Weight?50g

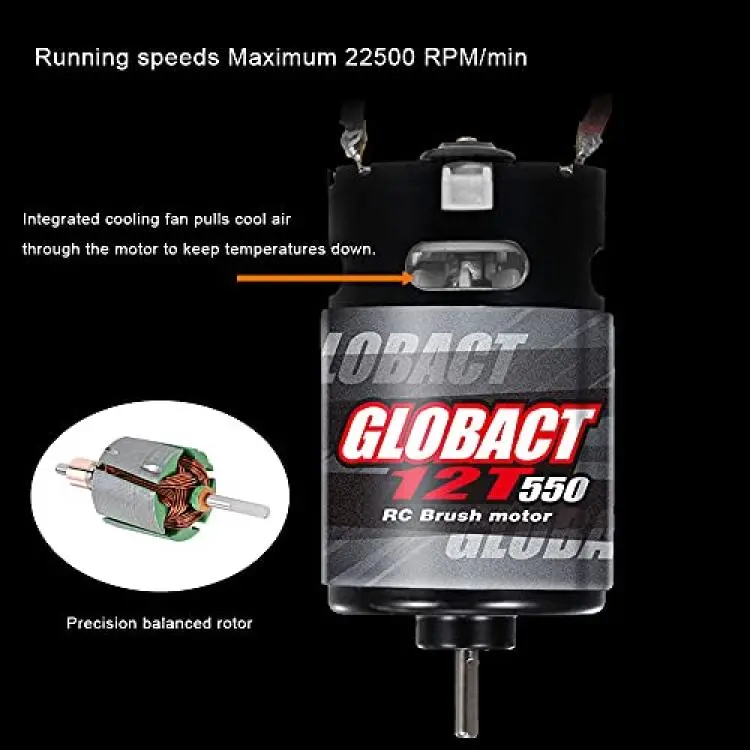

Motor Specifications:
Item name: Globact 550 12t Motor
Color: Black
Size: 550
Turns: 12T
Watts: 137W
Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cells NiMH)
Max Amps: 70A
KV(RPM/Volt): 12T
Max RPM: 22500
Waterproof level: IP65
Diameter: 36mm
Length: 55mm
Length of extend shaft: 11mm
Shaft diameter: 3.175mm

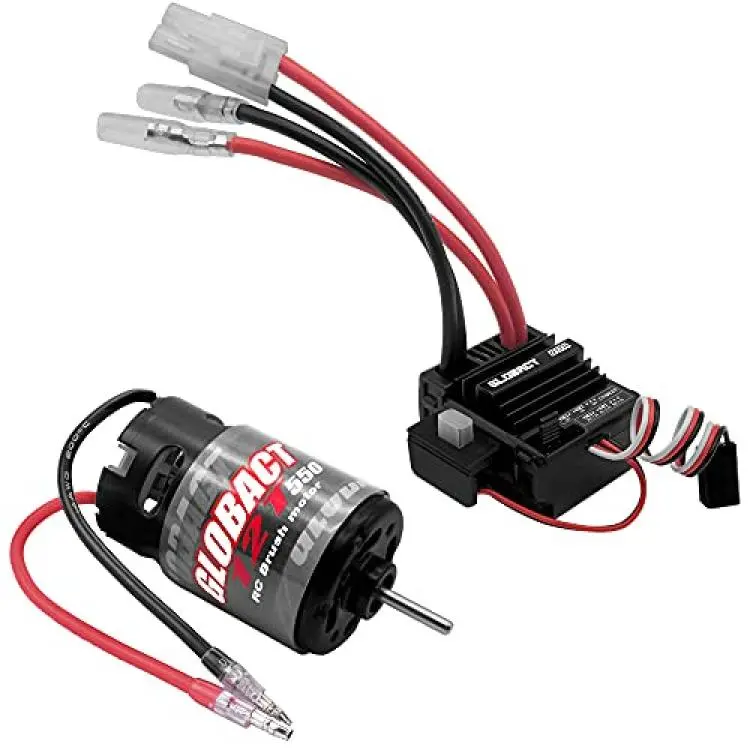

Packing List:
1 * GLOBACT Brushed 80A ESC
1 * GLOBACT 12T 550 motor
1 * User manual
