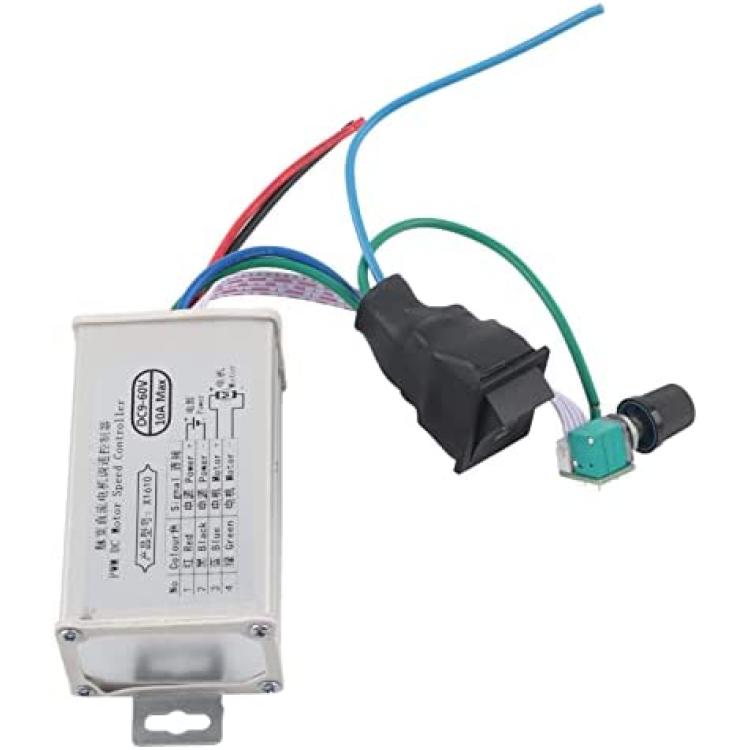

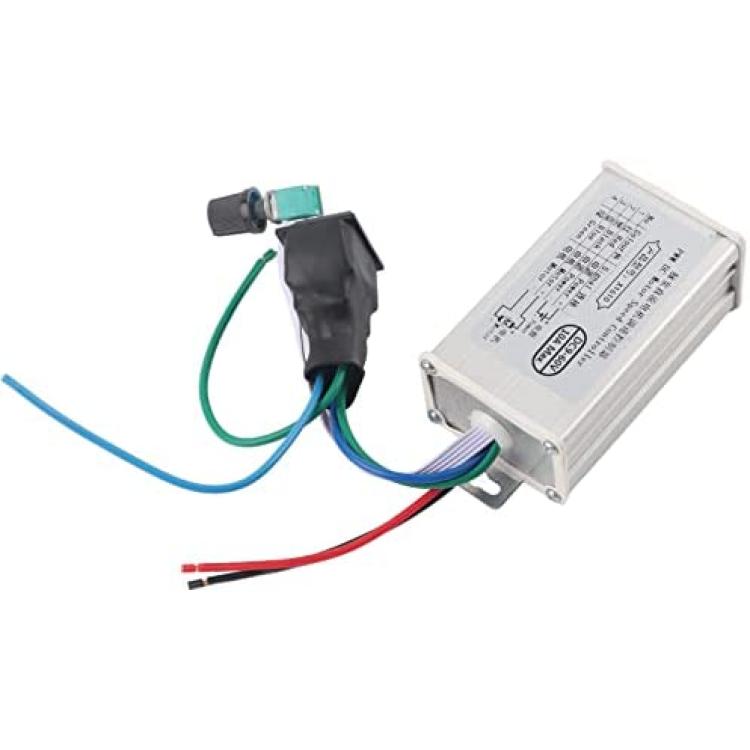

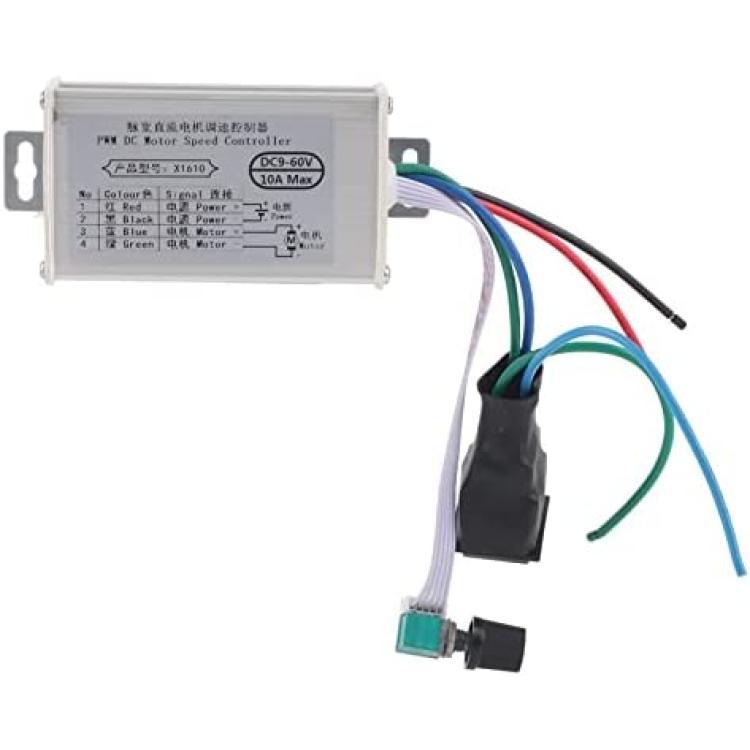

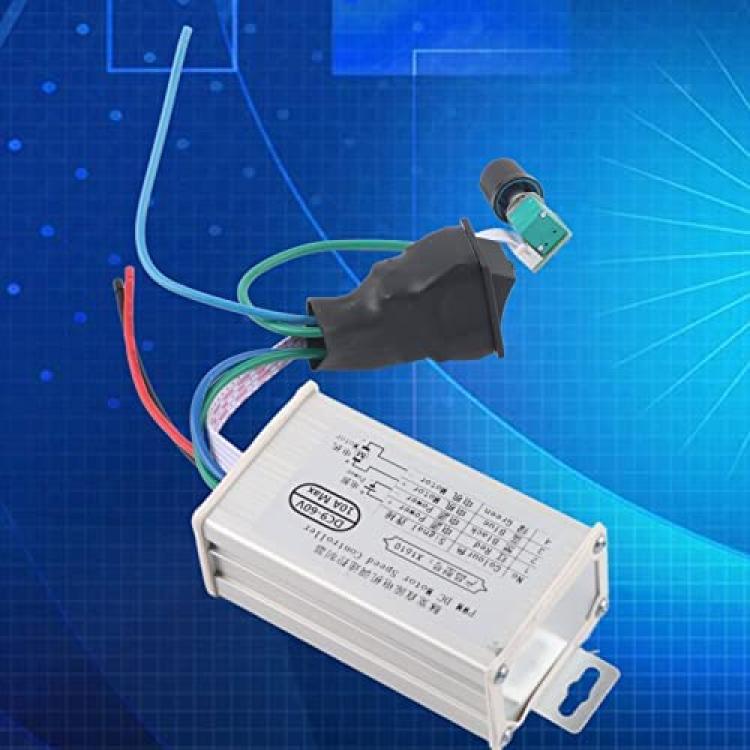

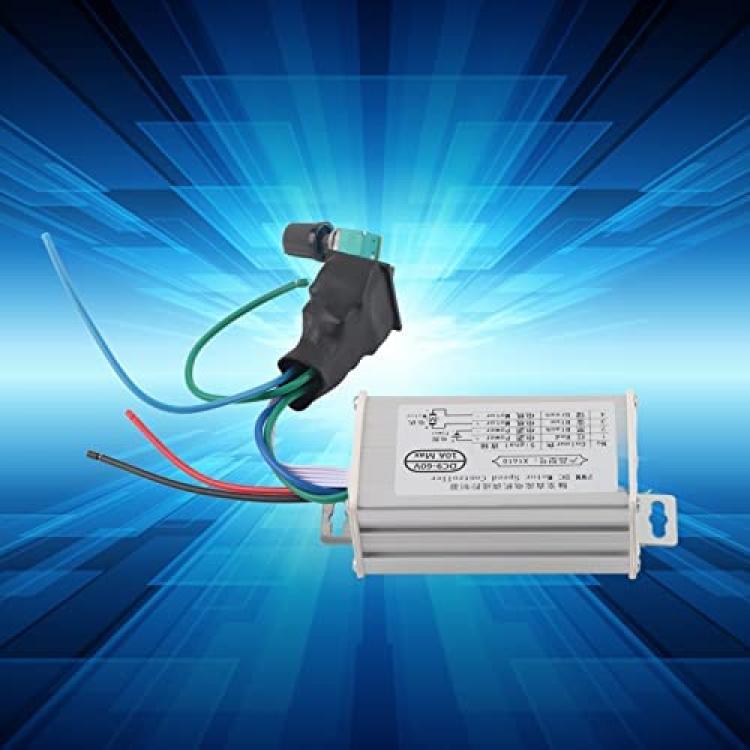

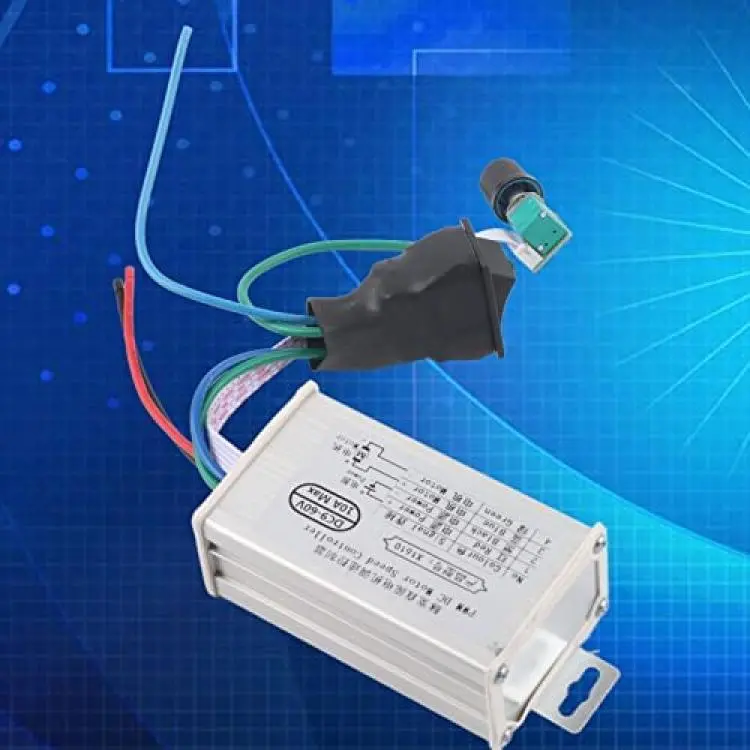

Gfnxk DC Motor Speed Controller,10A CW/CCW Motor Speed Regulator,9~60V PWM Controller,DC9-60V,Adjustable Motor Driver Switch
About this product
*The scope of work::The controller can work in 9V,12V,24V,36V,48V,60V power supply.
*2 ways:The controller is equipped with a forward/reverse rotation switch.

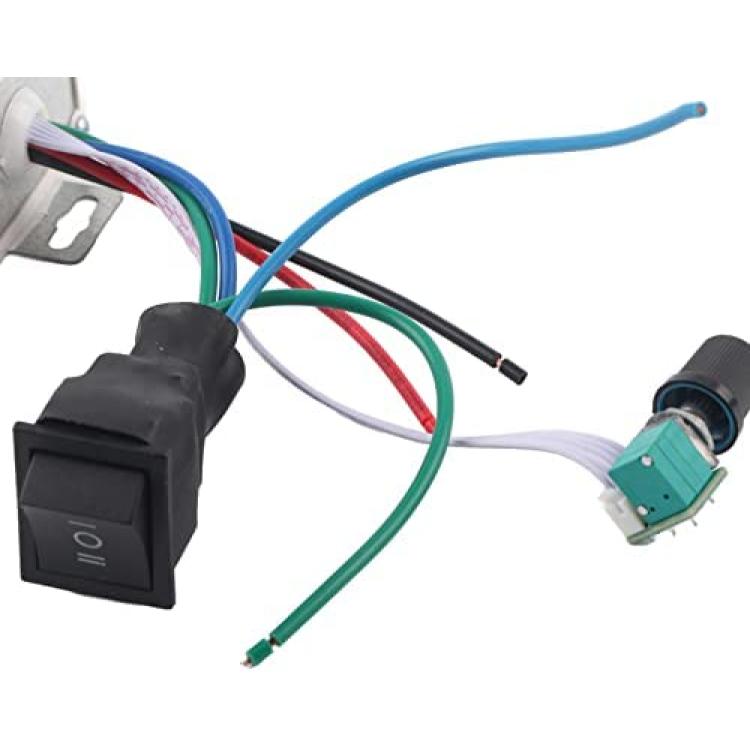

*Controllable:The controller is control the speed with a potentiometer with switch.
*Easy to install::Easy installation and convenient usages,simple operation,you can handle it easily.
*Practical:Professional and practical design with beautiful appearance.
Description
Specification:
Item Type:Motor Controller
Input Voltage:DC9~60V
Output Voltage:Linearity under Load
Maximum Current:10A
Continuous Current:5A
Function:Forward/Reverse/Stop
Speed Adjustment Range:0~100%
Control Frequency:15Khz
Speed Adjustment Mode:Potentiometer
Speed Adjustment Pattern:Current Adjustment
Motor Supported:DC Brush Motor
Wiring Type:Electric Wire
Size:90 x 52 x 36mm / 3.54 x 2.05 x 1.42in
Installation Size:Central Length:104mm / 4.09in
Weight:138g/4..87oz
Feature:
-- The controller is equipped with a forward/reverse rotation switch.
--The controller is control the speed with a potentiometer with switch.
-- Easy installation and convenient usages,simple operation,you can handle it easily.
-- The controller can work in 9V,12V,24V,36V,48V,60V power supply.
-- Professional and practical design with beautiful appearance.
Package List:
1 x Controller
Note:
1. The input voltage should be equal to the rated voltage of the motor. It is not possible to input 220V household electricity.
2. The input must distinguish between positive and negative polarity.
3. The motor can be connected without distinguishing positive and negative, when the running direction is inconsistent with the expected, you can change the direction by adjusting the motor wire sequence.
