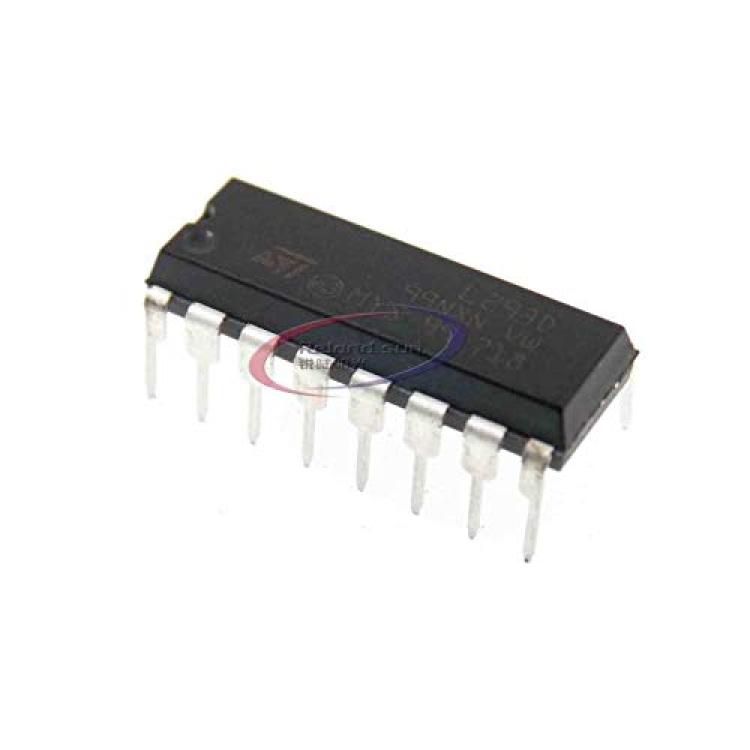

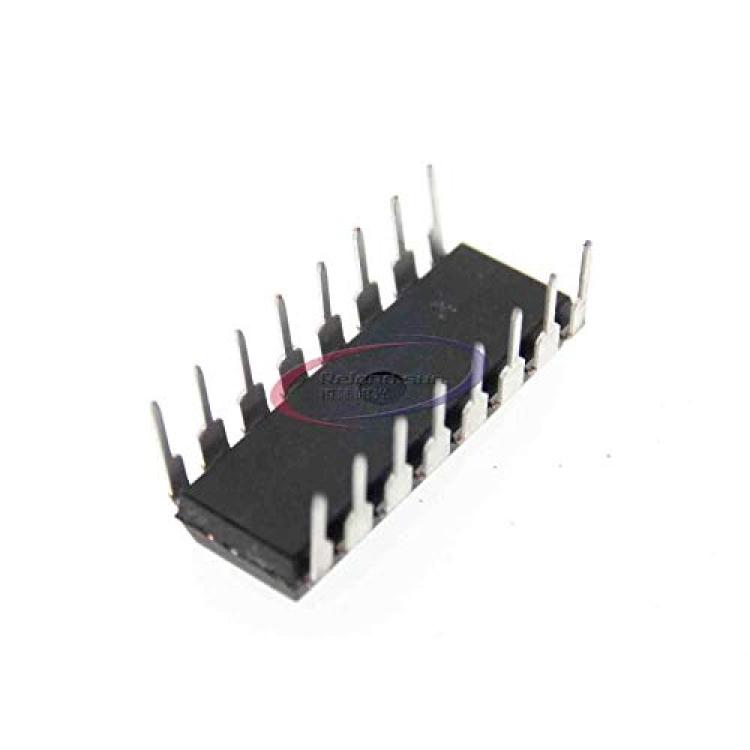

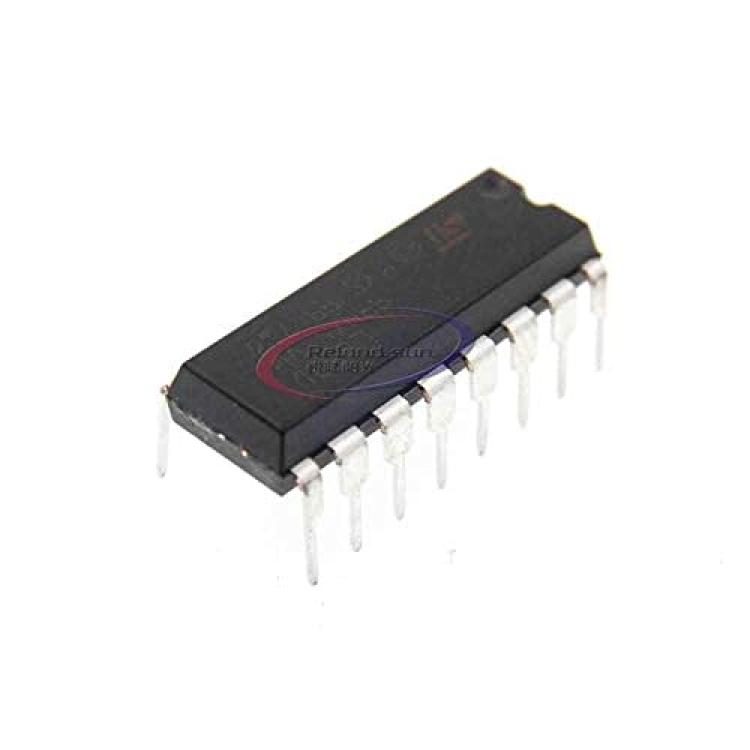

10pcs L293 L293D 16-pin IC Stepper Motor Drivers Controllers
Availability: Pre-Order, Inquiry Price
About this product
*Channel Capability: 600mA Output current / channel.
*Enable system.
*Peak output current: 1.2A / channel (not repetitive).
*Overtemperature protection.
*Logic "0" input voltage to 1.5V (high noise immunity).
Description
Specifications:
Channel Capability: 600mA Output current / channel
Peak output current: 1.2A / channel (not repetitive)
Enable system
Overtemperature protection
Logic "0" input voltage to 1.5V (high noise immunity)
Internal clamp diodes
Note No: 16 Pins
Absolute Maximum Ratings:
Vs Supply voltage: 36 V
VSS Logic Supply Voltage: 36V
Vi inputs: 7V
Activate Ven: 7V
Io Peak output current (100 US non-repetitive): 1.2A
PEL Total power dissipation in Tpins: 90 ° C, 4W
Tstg, Tj Storage and Junction Temperature: -40 to 150 ° C
Package included:
10 x L293D driver chip
