Voltage Regulator Module, SCR Digital Speed Low Resistance Controller Dimmer Thermostat Durable Module 10000W AC 220V 80A

Specifications:
Voltage: AC 220V
Max Power: 10000W(instantaneous limit power for impedance load; for long time use, 5000w or lower is recommended)
Voltage Adjustment: 0-100% (nonlinear)

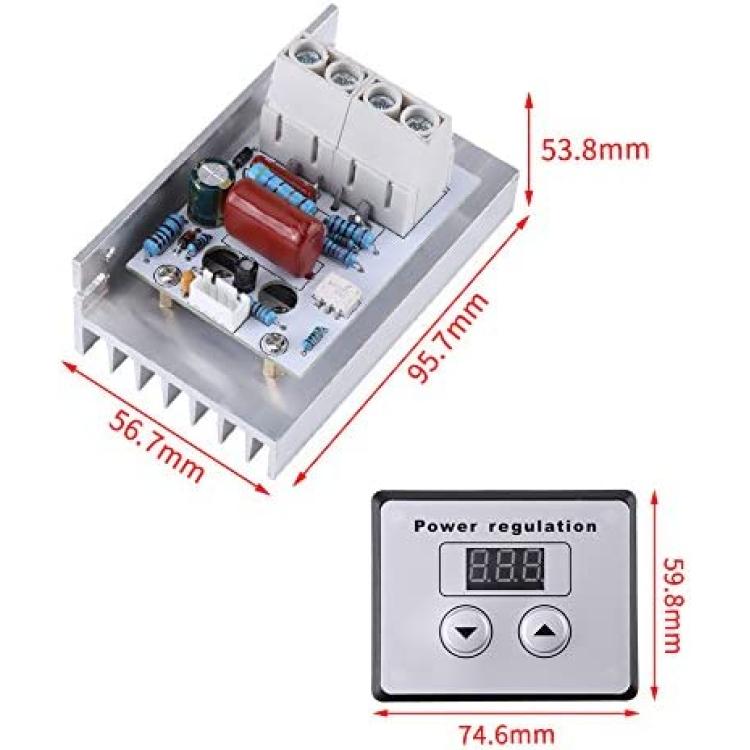

Controller Size: 95.7*56.7*53.8mm/3.76*2.23*2.11"
Panel Size: 74.6*59.8*2.3mm/2.93*2.35*0.09"
Cable Length: 287mm/11.3"


Note:
1, AC input, AC output, output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load.
2, It can not replace electric bicycles' battery charger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp.

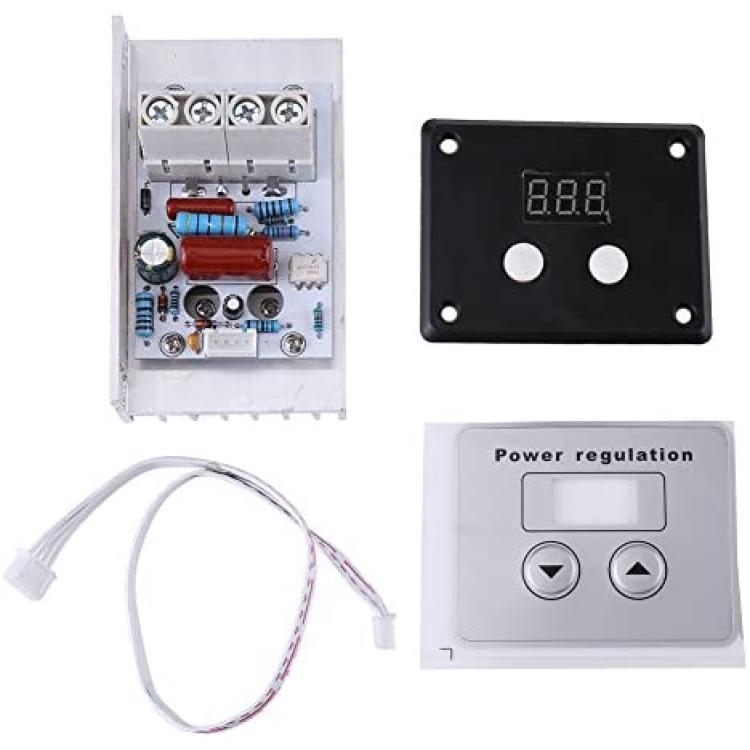

Package Includes:

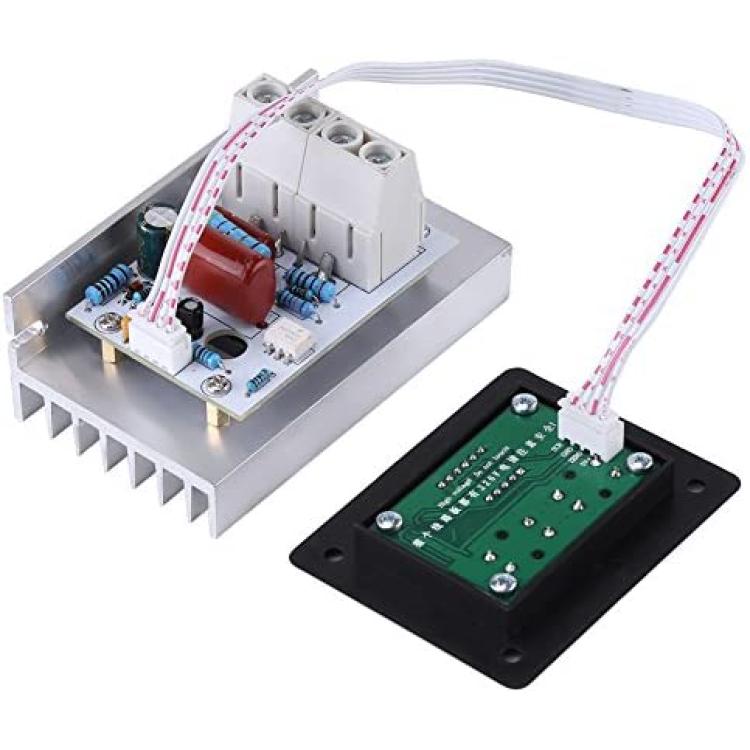

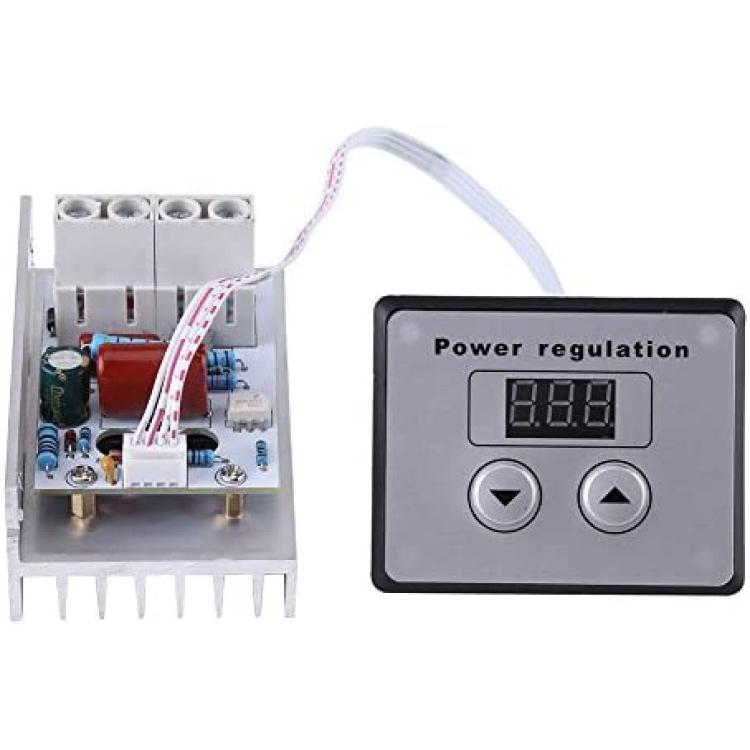

1 x SCR Controller

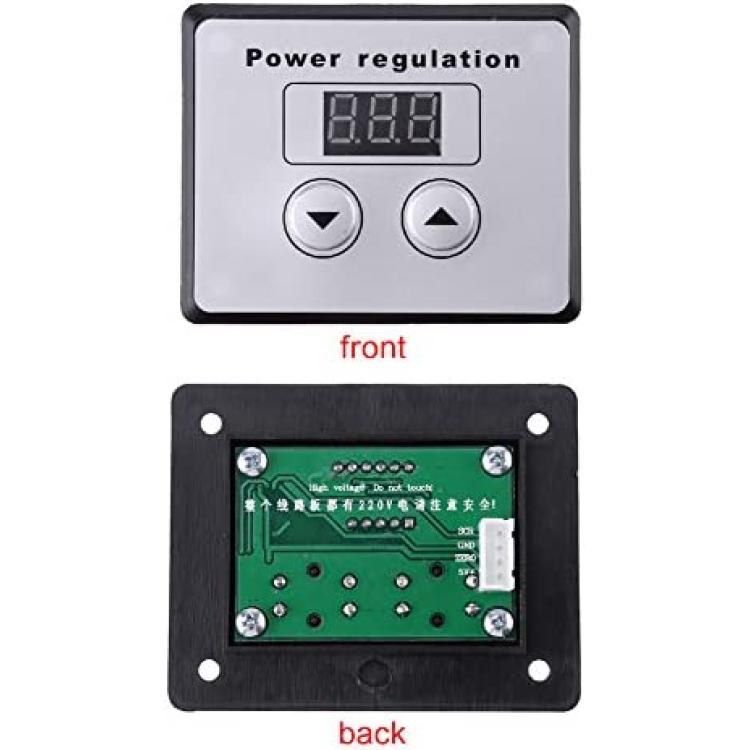

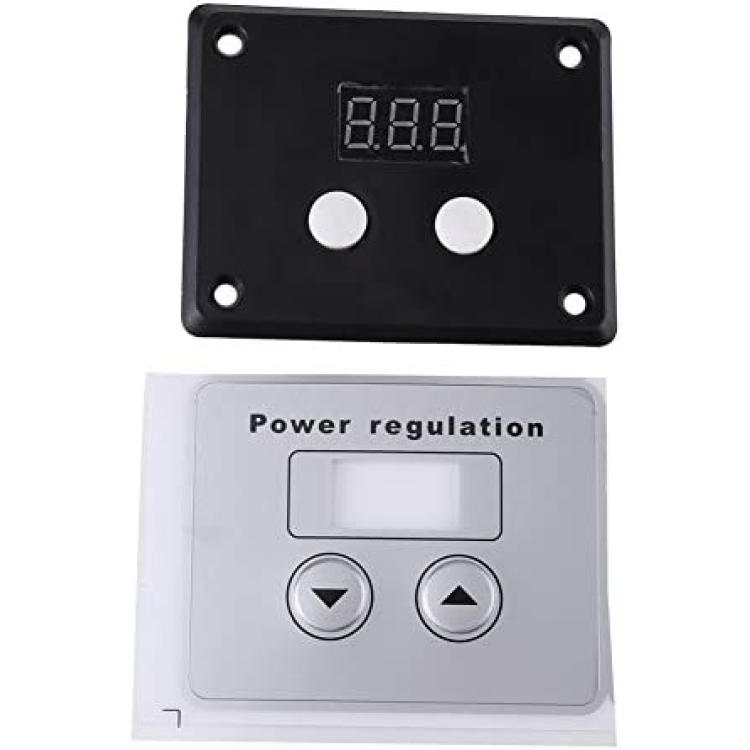

1 x ABS Panel
1 x Panel Sticker
1 x Cable
