Electric Linear Actuator 12V Force 30N Speed 30mm Length 30mm Linear Actuator Lift Electric Motor Bracket Duty Motor for Automated Machinery Linear Actuator,Mini Electric Linear,Micro Linear
About this product
*Linear actuators a great pushers for devices, aviation, aerospace, simulation, commercial transport, adjust helms and doors, lift tables and other apparatus, adjust the TV antennae, deck chair, window and other application

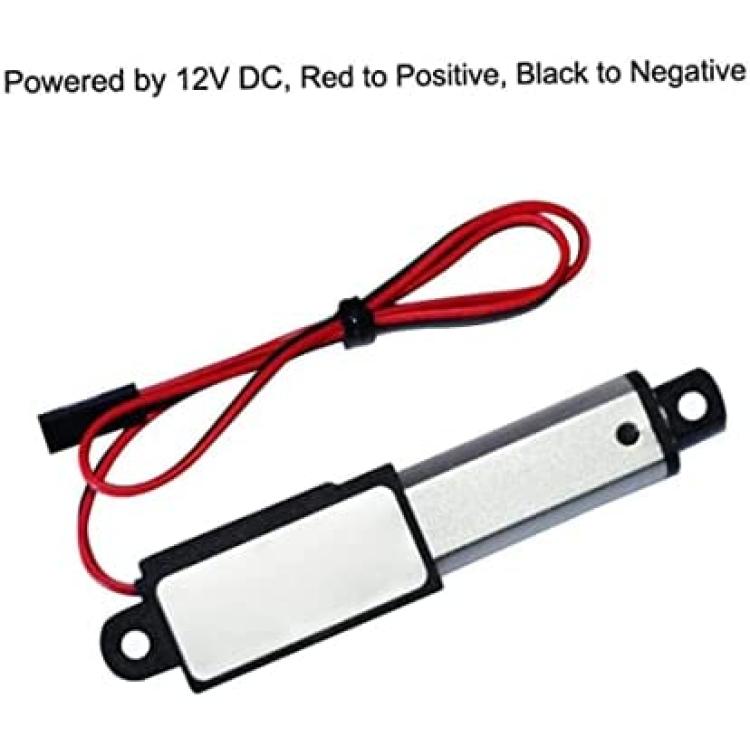

*Our simplest micro linear actuator are powered by 12 volts DC, Apply voltage to the device and it will extend, reverse the polarity and it will retract. Package come with a hardware kit to make mounting easy
*The micro linear actuator is very exquisite and compact, weights about 0.1lbs/40g, compact size makes it an ideal device for robotics applications and other projects with tight space and weight requirements
*The linear actuator are made of high quality aluminium and ABS material, well constructed for long-term use; The linear actuator comes with end-limit switches that will turn off power to the motor when the device reaches the end of stroke to protect motor
*The micro linear actuator is designed with overcurrent protection, short circuit protection, overload protection, overvoltage protection
Description
Description:
Powered by 12 volts DC, apply voltage to the device and it will extend, reverse polarity and it will retract.The actuator has an end limit switch, when the device reaches the end of the stroke, the motor power will be turned off to protect the motor
Feature:
Linear actuator
Color:Silver.
Material:Aluminum.
Size:3.93x0.78inch.
Power: 12V DC.
Maximum load: 60N.

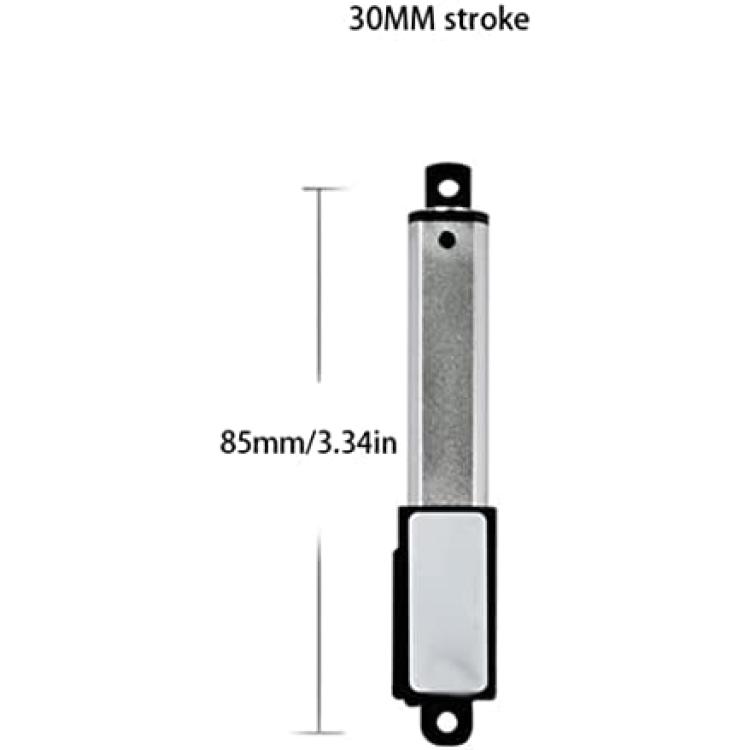

Stroke length: 1.18 inch/30 mm.
Duty Circle: 10%.
Protection class: IP54 Rated.
Noise: lt; 55 dB.
Retracted length: Stroke length+55mm.
Travel speed without load: 30mm/s.

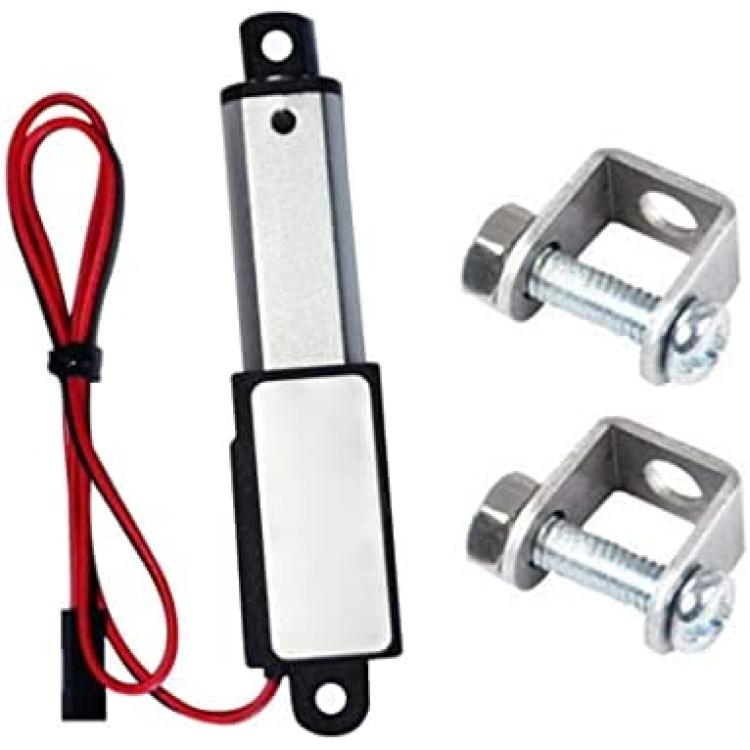

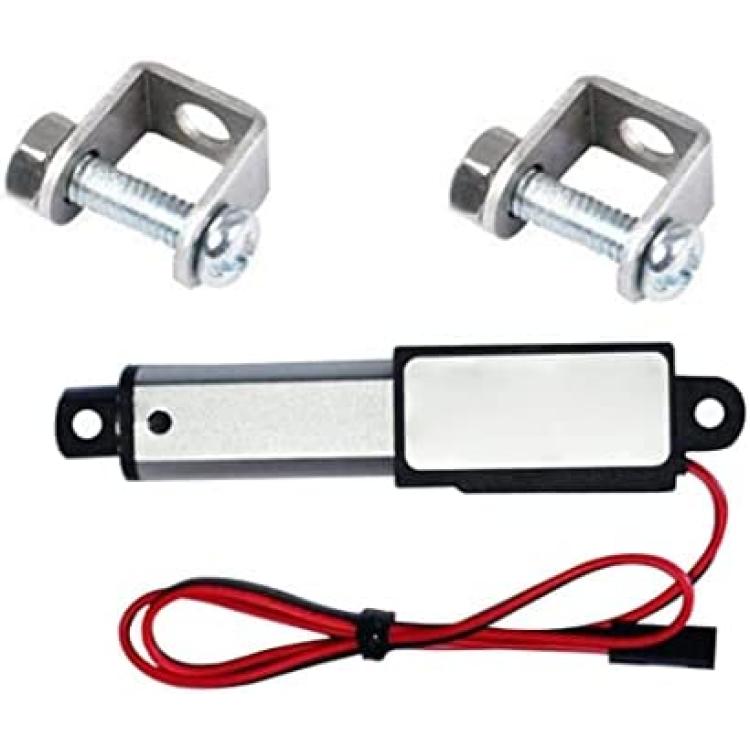

1 * Micro linear actuator
2 * Mounting brackets
