Tuimiyisou DC CCM5D Digital Display LED PWM Stepless Adjustable Control Switch Power Distribution & Control Equipment-DC Motor Speed Controller
About this product
*SUITABLE FOR: CCM5D 6V-30V 6A 16kHz speed controller LED digital display Applicable to DC6V - 30V DC motor, fan, fish tank oxygen pump and other products
*DISPLAY: Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions
*PARAMETER: Work Voltage: 6V - 30V, Rated Current: 6A, Max Current: 8A, Speed Range: 0% - 100%, Frequency: 16Khz, motor low speed quiet, low speed torque
*FUNCTION: The DC motor speed controller allows the use of pulse width modulation (PWM) DC voltage to control the speed of the DC motor
*ADJUSTABLE: the duty cycle of the dc motor speed controller can be fully adjusted from 0% to 100%
Description
Description

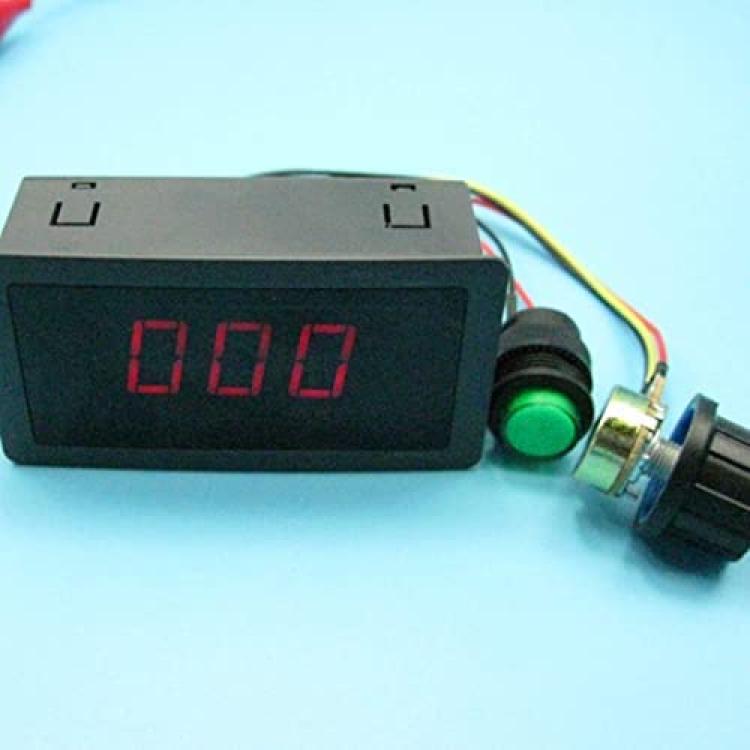

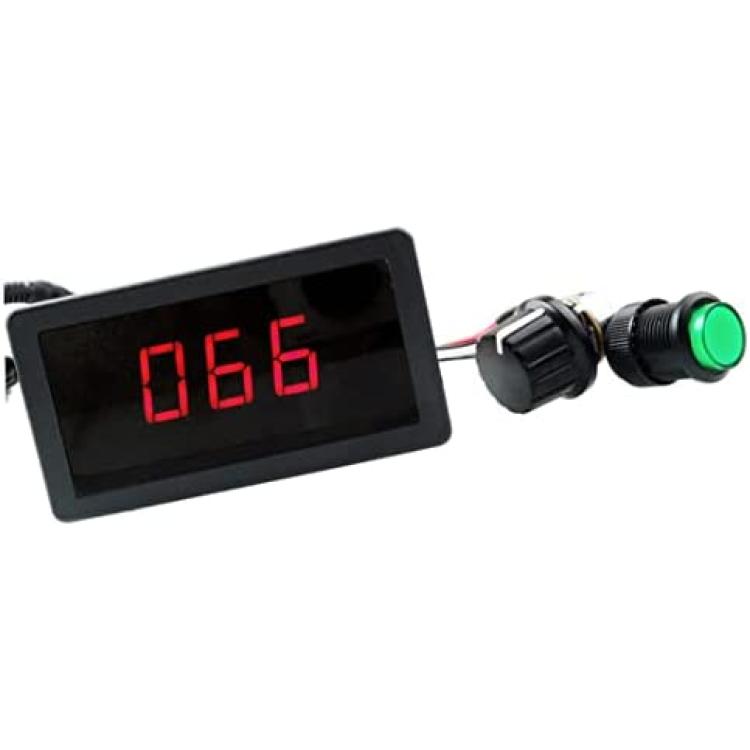

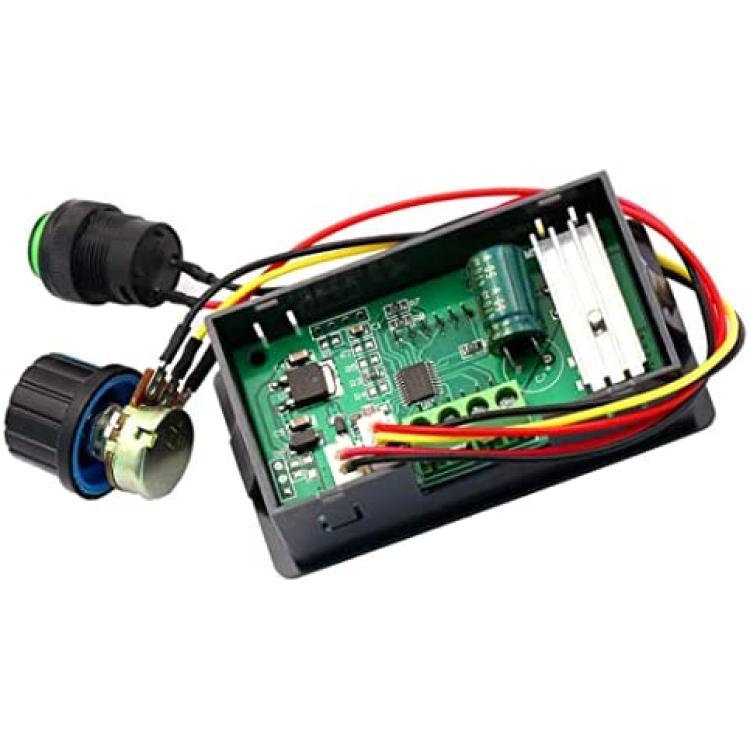

CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). The display range of 3-digit LED display is "000"-"100". (For example, displayed "066" as the picture 1, it means that the PWM output duty cycle is 66%.). Suitable for the DC motor (or DC load) within 5A, Peak current 8A. Incorporate a push key. Push closed, and then push open.
Features
Motor speed controller
-Color: As shown.
-Material: Plastic.

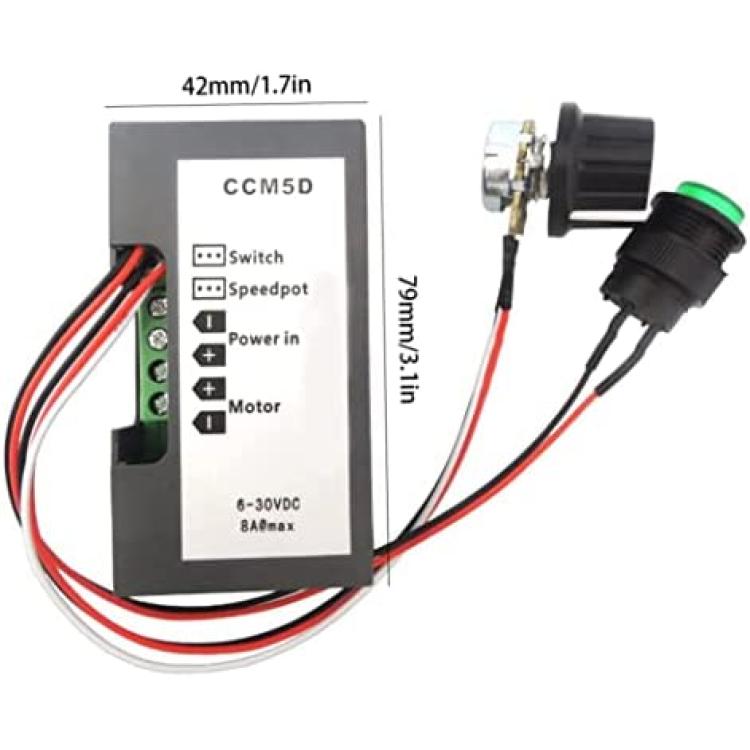

-Size: 8x5x4 cm/3.15x1.97x1.57 inch.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
Warning: do not reverse postive and negative power loads.this will damage the controller.
To change motor direction, interchange the positive and negative wires of motor.

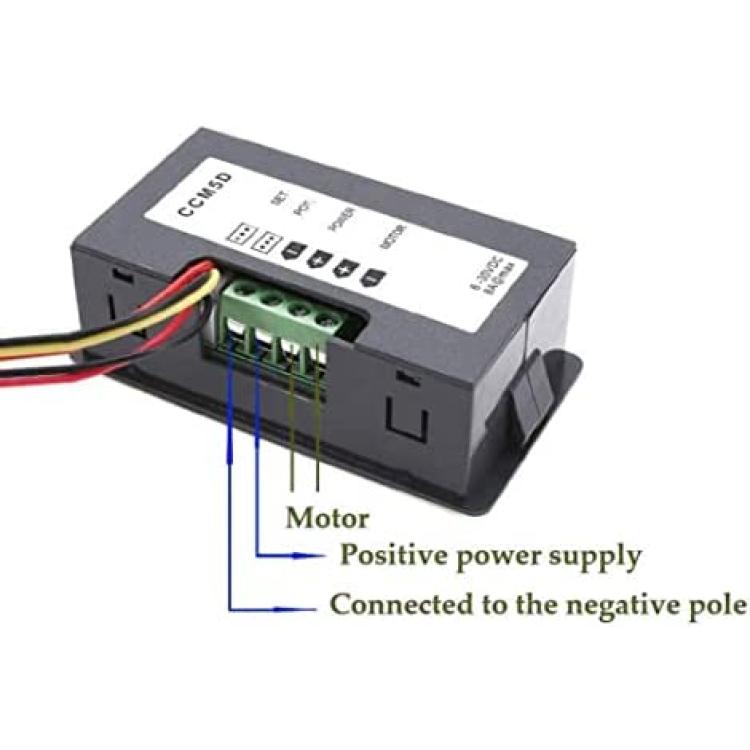

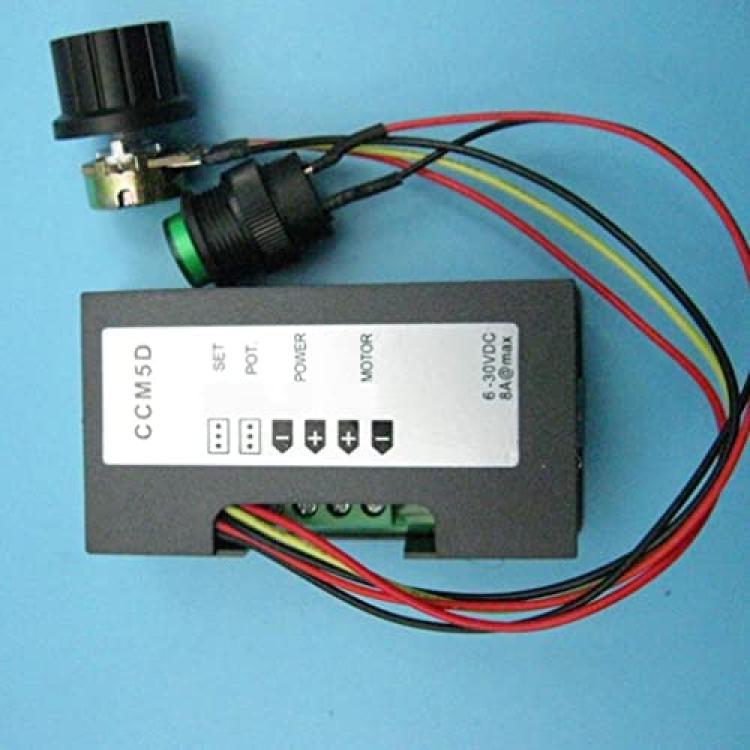

1. Connect wires refer to the "wiring diagram" (NO.5 picture).

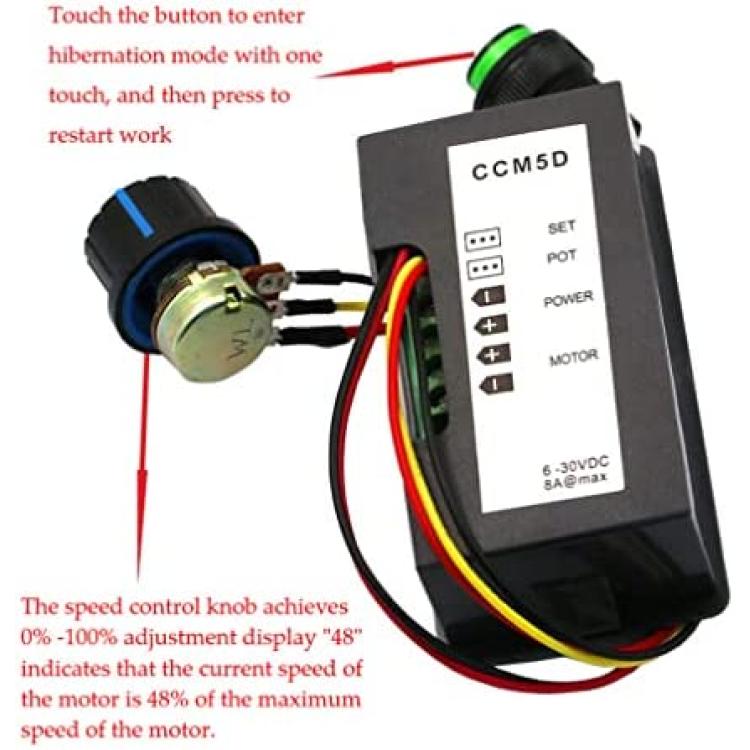

2. Turn on the power, and adjust the potentiometer.
3. The LED display displays the PWM output duty cycle.
4. Push the key, the controller closed, push it again, the controller open.
Package Including
1 * Motor speed controller
