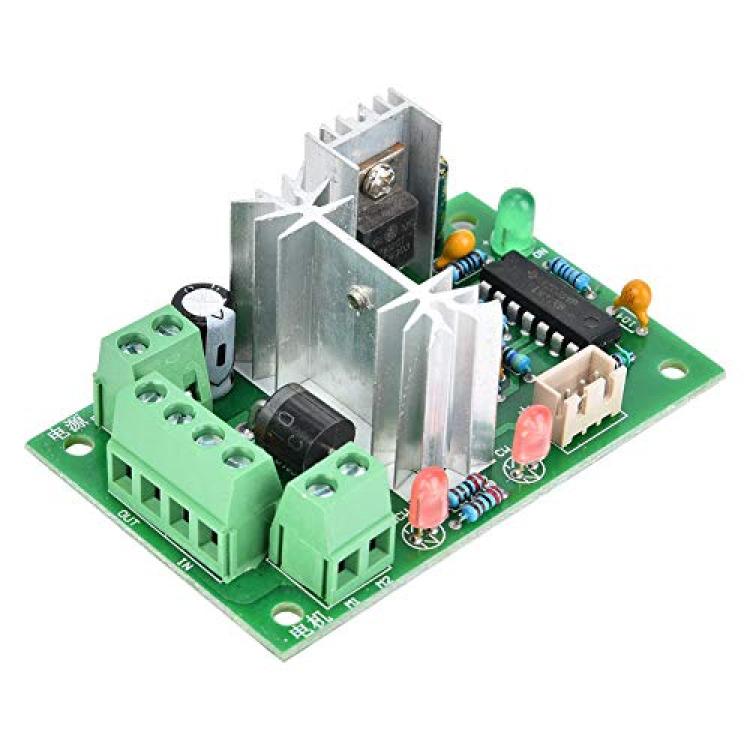

PWM DC Motor Speed Regulator , Controllers Motor Speed Controllers Controller Switch with Potentiometer CW/CCW Switch 10A 6-30VDC 10%~95%
Availability: Pre-Order, Inquiry Price
About this product
*High performance, no noise, high power and efficiency. Small size, easy to carry and convenient to install.
*There is a knob, you can rotate it to change output so to change the revolving speed of motor, convenient and easy to use.
*The positive and negative pole of motor can be connected one way or another. Exchange the pole when the rotation direction is not as expected, exchange the pole.
*Made of high quality plastic and metal materials, durable to use.With reverse polarity protection, high current protection.
*This controller has potentiometer and CW/CWe strive to provide you with the highest quality product and the best customer experience, if youre not entirely satisfied, please just feel free to contact us at any time.CW switch
Description
Specification:
Item Type: PWM DC Motor Speed Controller
Material: Plastic, Metal
Input: DC 6~30V
Output: up to 80W
PWM Range: 10%~95%
Current: up to 10A (recommended for use in 6A)
Size: Approx. 73.5 x 45.5 x 27mm / 2.9 x 1.8 x 1.1in

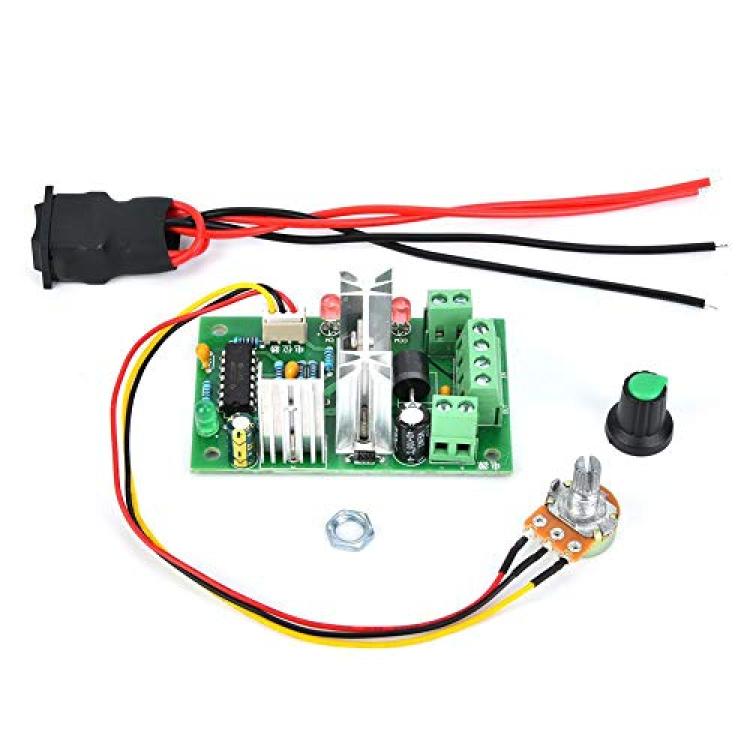

Package List:
1 x PWM DC Motor Speed Controller
1 x CW/CCW Switch
1 x Knob Cap
1 x Gasket
1 x Nut
Use Wring:
1. Connect the power cable to ensure that the CW/CCW switch is in the middle 0 position, connect the DC power supply, ensure that the DC power supply voltage range is greater than 10V, less than 30V, to ensure that the power output power meets the motor working needs. The DC power positive and negative terminals should not be reversed, otherwise The governor may be damaged.
2. Connect the motor, the motor line can be positive or negative.
3. Adjust the switch, the CW/CCW switch is used to control the motor speed direction. When the switch is at the 0 position, the motor stops.
4. Potentiometer knob, adjust the potentiometer knob to change the governor output duty cycle, motor speed changes.
