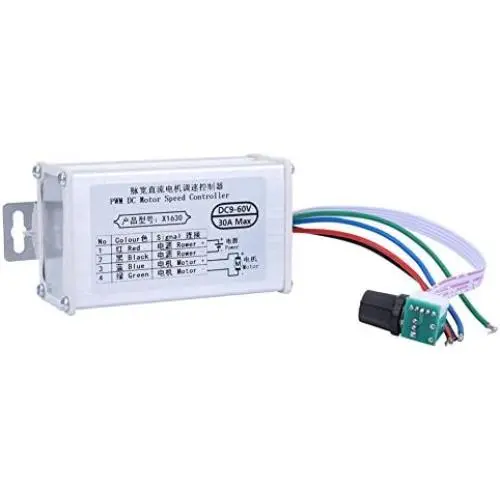

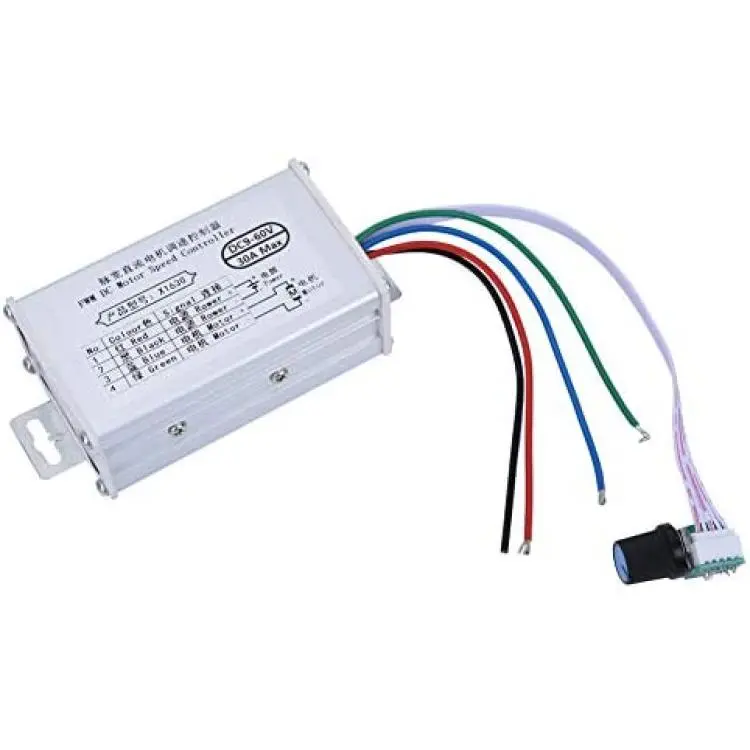

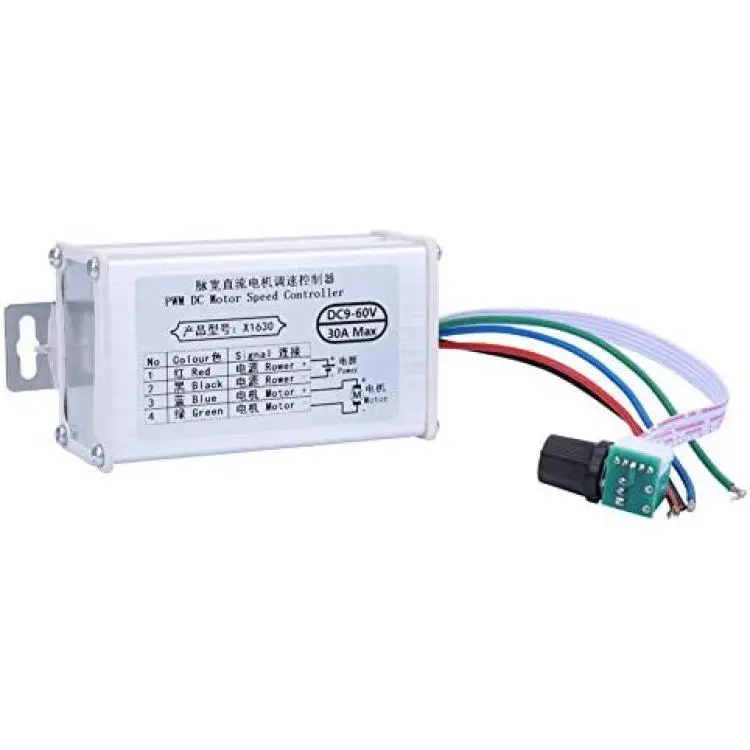

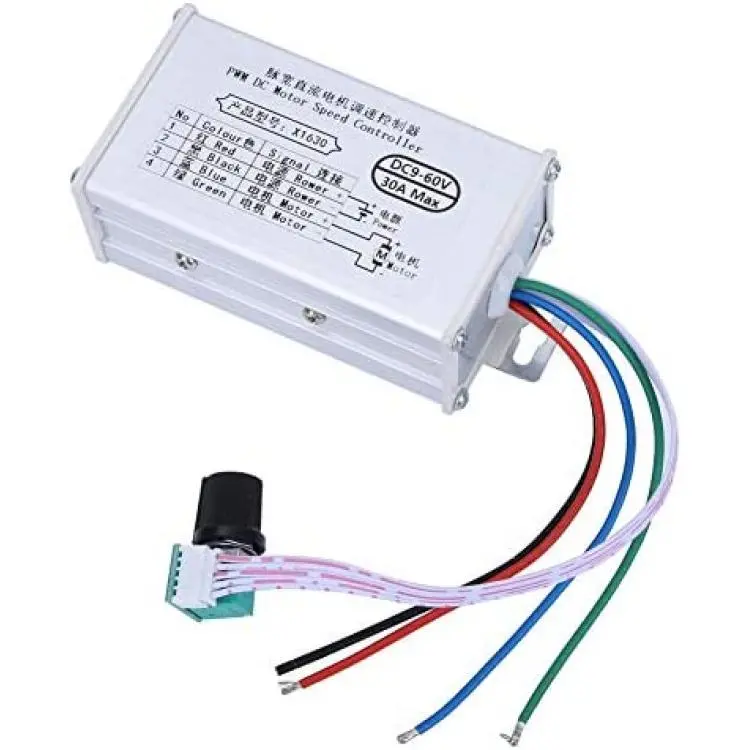

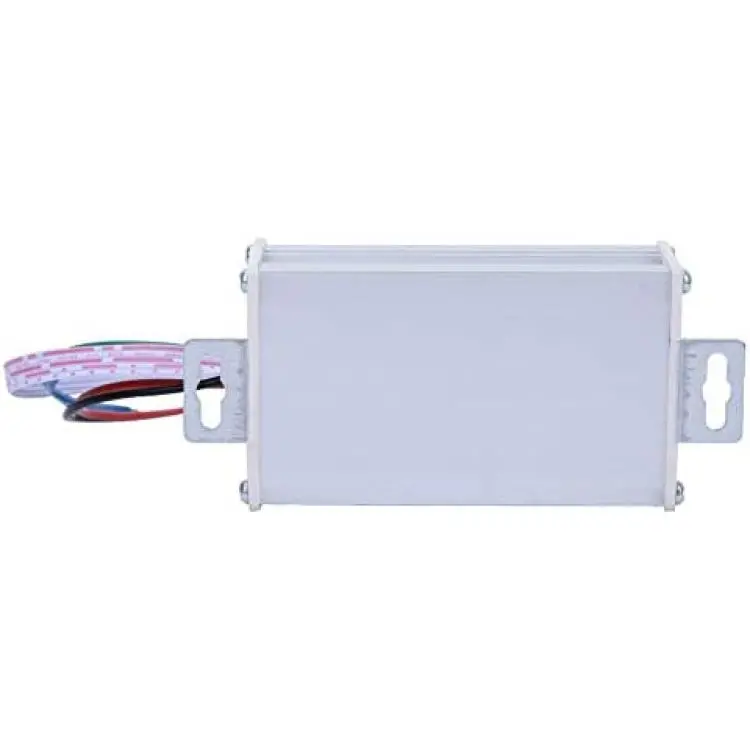

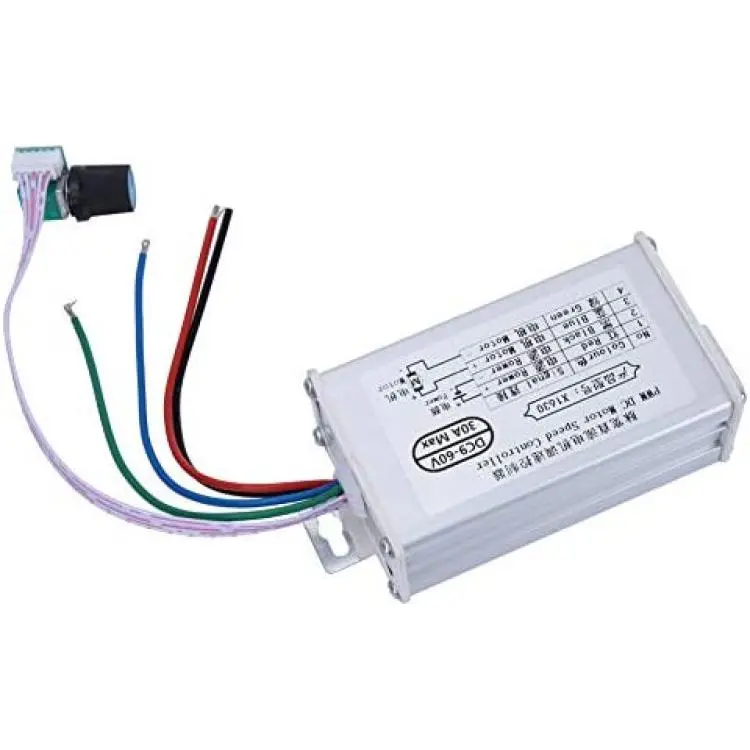

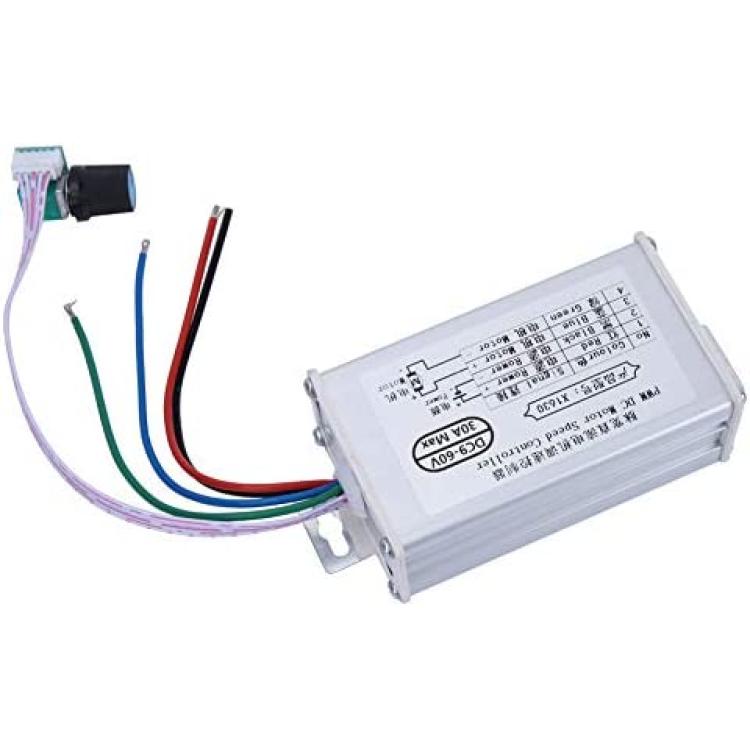

YIHEXUANkeji DC Regulator Speed Motor Controller, DC 960V 30A PWM DC Brush Motor Speed Controller Adjustable Electric Motor Speed Regulator
About this product
*HIGH-QUALITY ELECTRONIC COMPONENTS: Our motor speed controller is made of high-quality electronic components with stable and reliable performance. Long service life, high quality products, you can rest assured of purchase.
*PULSE WIDTH MODULATION (PWM): DC regulator speed motor controller adopt pulse width modulation(PWM) technology is used to make the speed more stable, and the strength is high at low speed.
*SPEED GOVERNOR COMPACT SIZE: The product is compact and easy to install in narrow space. Need attention: this is a DC brush motor controller. Please dont use it on AC motors.
*VOLTAGE CURRENT RANGE: The input voltage of the DC Regulator Speed Motor Controller is within the range of DC 9-60V and the applicable current is within 30A. Basically meet your needs, you can rest assured to buy.
*PASS STRICTLY TESTED: This DC motor controller has passed strictly test which test appearance, structure, product, packaging, quality, safety performance, material hazard indicators of the product .
Description
Specification:
Input voltage: DC 9-60V
Output voltage: linear under load
Maximum current: 30A controller
Continuous current: 15A
Speed range: 0%--100%
Control frequency: 15Khz
Speed control mode: potentiometer (with switch)
Speed control type: Current adjustment
Support motor: DC brush motor
Wiring type: wire
Product size: 90*52*36mm (length * width * height)
Installation size: 104mm (center distance)
Package list:
1 * Motor Speed Controller
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
