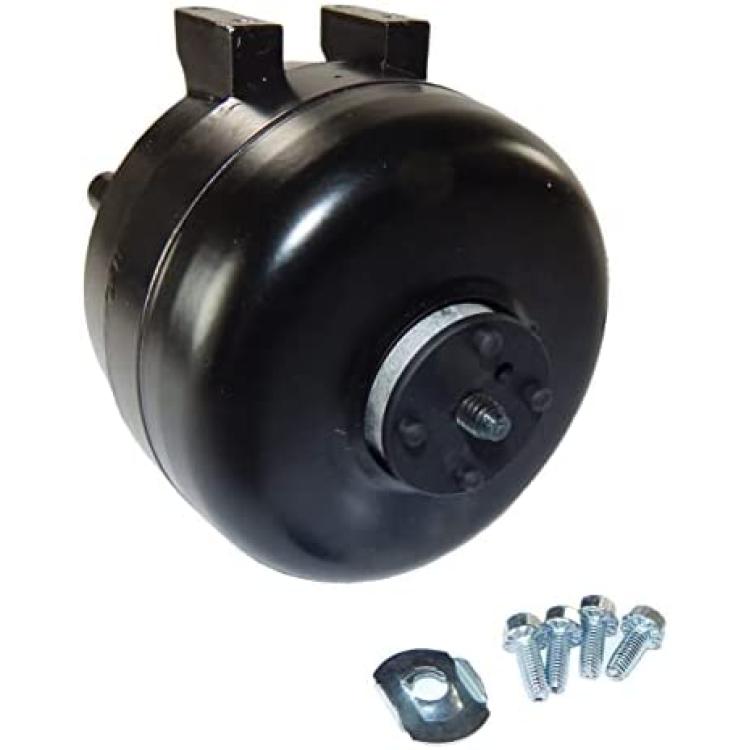

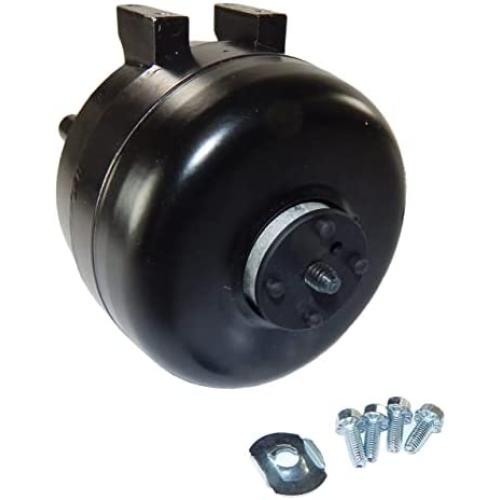

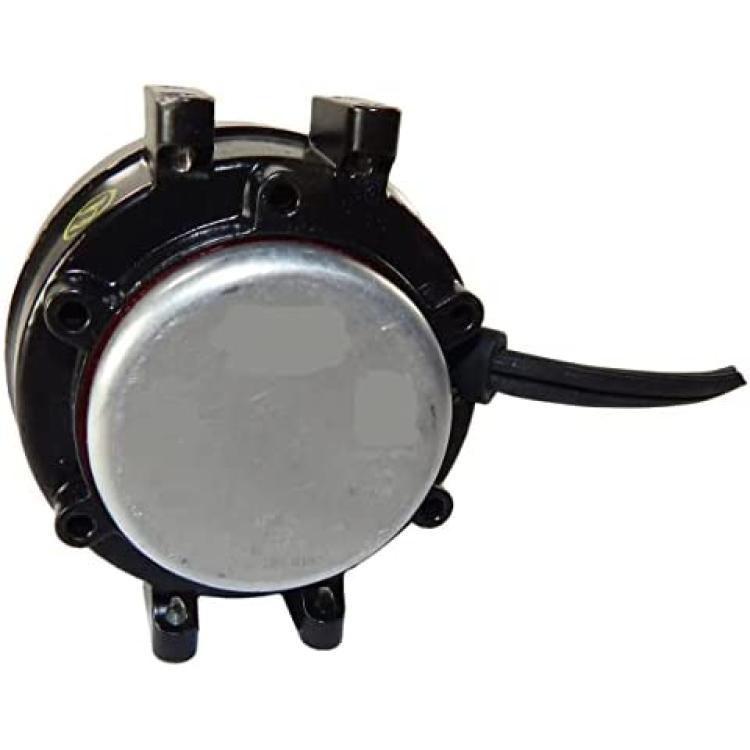

Fasco UB560-F Motor | 6 Watt 1550 RPM CWLE 230V Unit Bearing Refrigeration Motor
About this product
*6 Watt 1550 RPM, 0.21 amps, 230 Volts 50/60 hz.
*Rotation: Clockwise Lead End; Threaded Shaft: 1/4" - 20 threads
*Two Mounting Feet; Rear Mounting Holes
*Aluminum Housing; Shaded Pole Motor - Air Over
*1 Year Manufacture Warranty. Horizontal & Shaft Up Mounting Only
Description
Speed nut and vibration damper included. Uses: Domestic refrigerator and freezer fans, commercial refrigeration equipment, room and hood ventilators, room heaters, evaporative coolers, humidifiers, dehumidifiers, and other equipment having 6 inch to 10 inch fan blades. These motors are used in hundreds of applications such as grocery stores, restaurant, party stores, taverns, walk in coolers, food and beverage display cases and many others.
