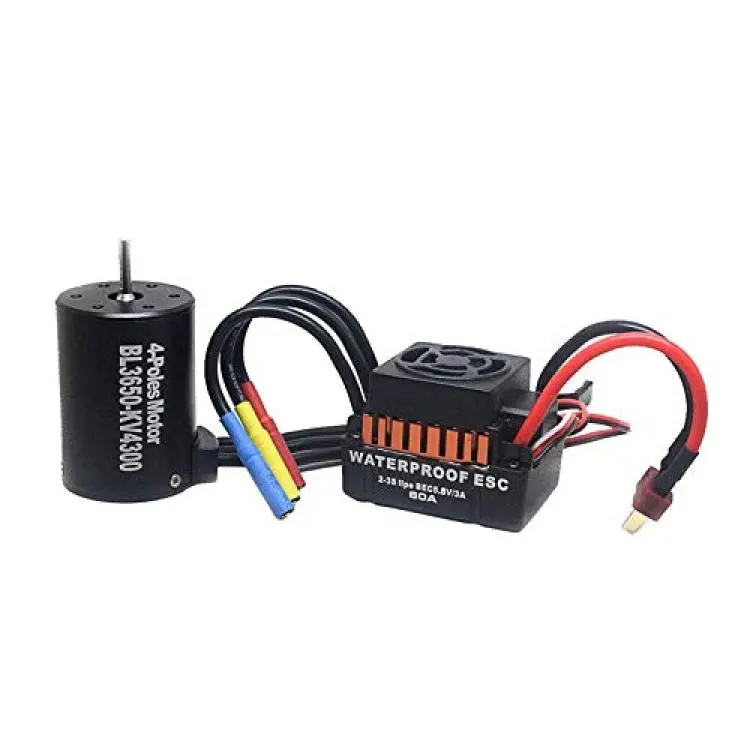

B3650 Upgrade Waterproof 4300KV Sensorless Brushless Motor with 60A ESC Electronic Speed Controller Combo Set for 1/10 RC Car, Mutiple Protection Features, 4 Pole 12 Slot High-torque, Bulit-in 5.8V/3A
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 7.32 x 6.1 x 2.56 inches; 0.95 Ounces
*Date First Available : August 6, 2019
*Manufacturer : lUKSY US-Direct
Description
? Feature:
? 4 pole 12 slot high-torque motor design
? 3.175mm shaft diameter
? High purity copper windings maximizes efficiency
? Precision engineered for maximum energy conversion
? Precision balanced rotor,smoothness for best reliability and maximum RPM
? Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection
? Bulit-in 5.8V/3A BEC
? Suit for 1/10 scale RC car

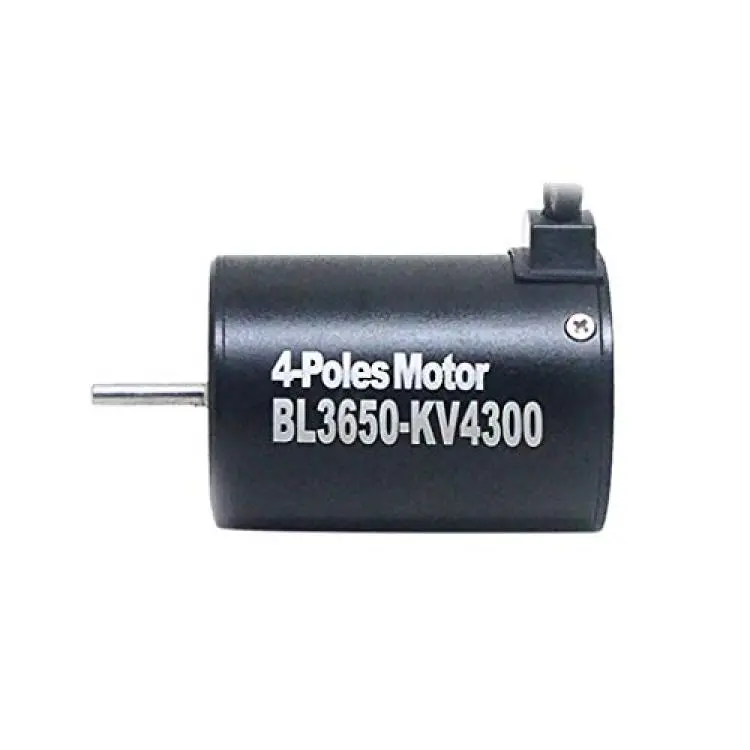

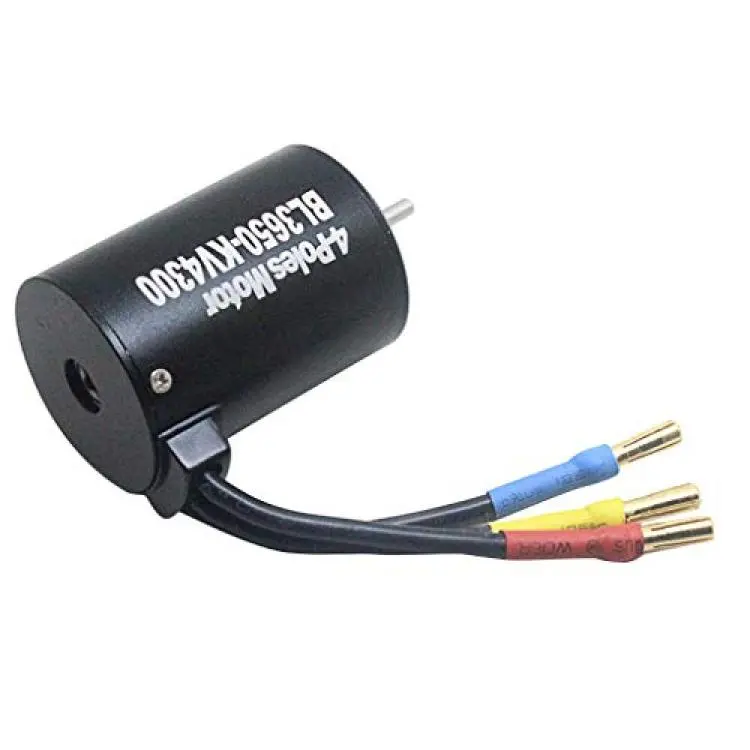

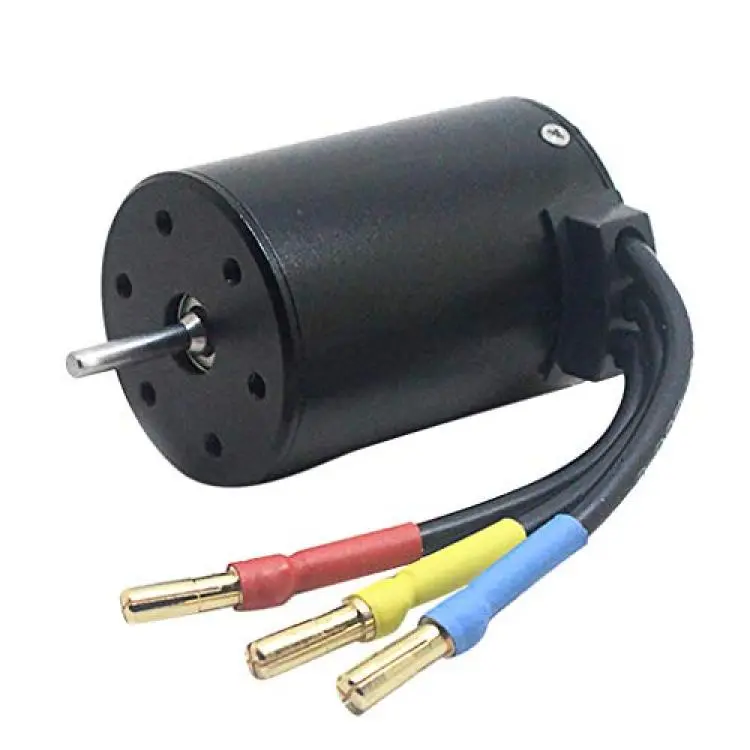

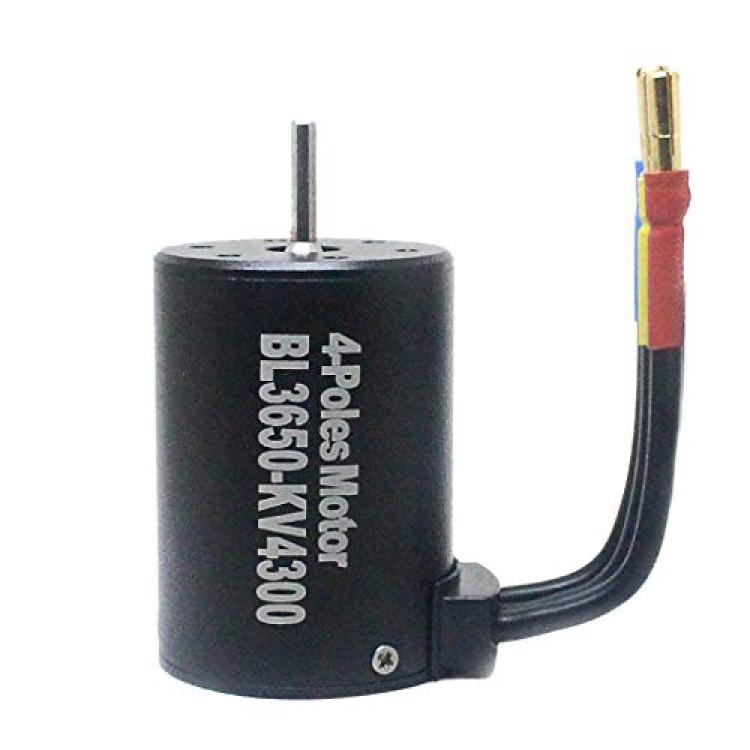

? Motor Specifications:
? Watts: 900W
? Max voltage: 12V
? Max Amps: 75A
? KV(RPM/Volt): 4300KV
? Max RPM: 50000
? Diameter: 36mm
? Length: 50mm
? Shaft length: 15mm
? Shaft diameter: 3.175mm
? Plug type: 4mm golden banana plug

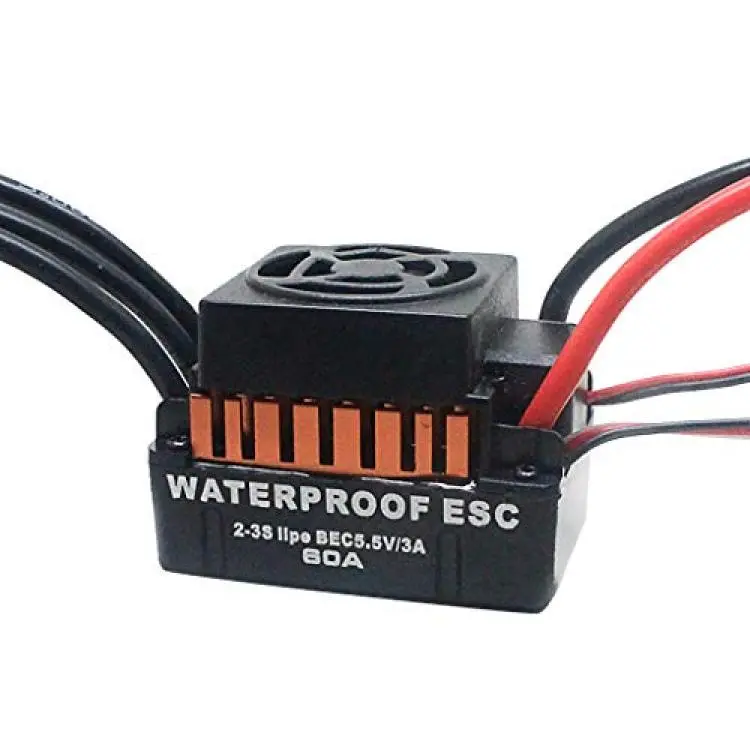

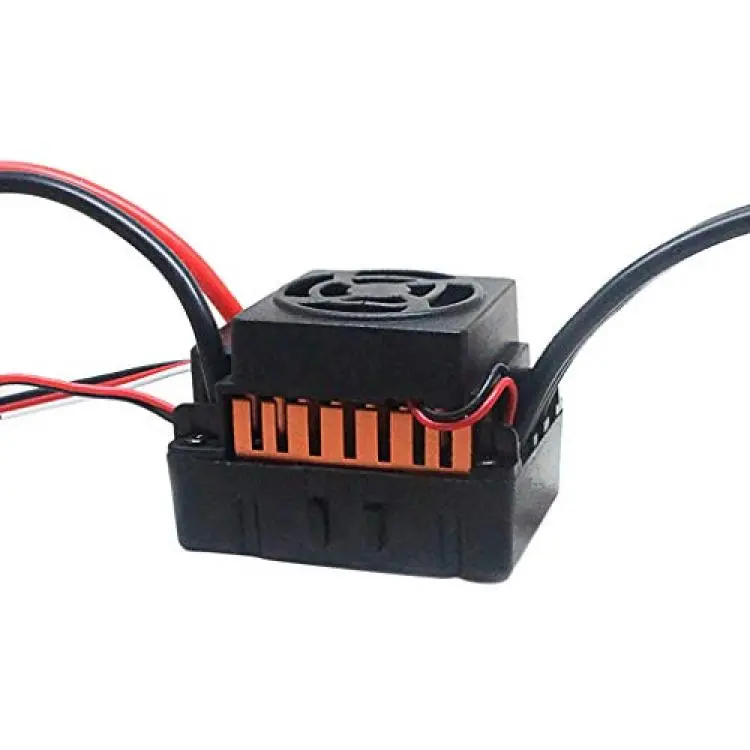

? ESC Specifications:
? Item name: waterproof ESC
? Continue current: 60A
? Burst current: 320A
? Battery: 2-3S Li-Po / 4-9S Ni-Mh N-i-Cd
? BEC output: 5.8V / 3A
? Power supply plugs: T plug male
? Motor plugs: 4mm banana plug female
? Dimension: 50 x 35 x 34mm / 2.0 x 1.4 x 1.3in (without cables)
? Package Information:
?Package size:15*10*4cm
?Package weight:288g
?Size: 8*5.5*1.5cm
?Weight : 27g
?Fit RC Car 35A 60A 80A 120A ESC
? Package List:
1 x 3650 4300KV Motor
1 x Waterproof 60A Brushless ESC
