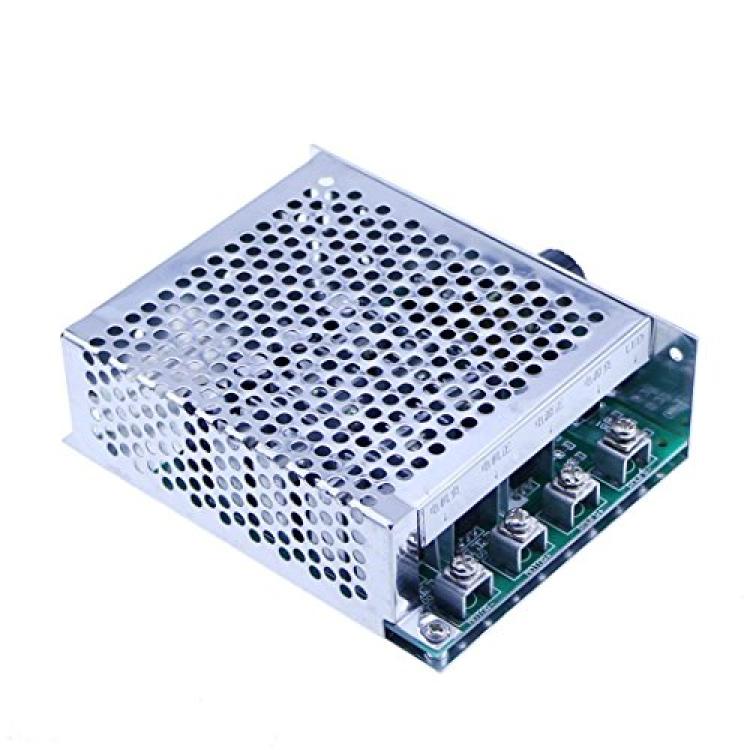

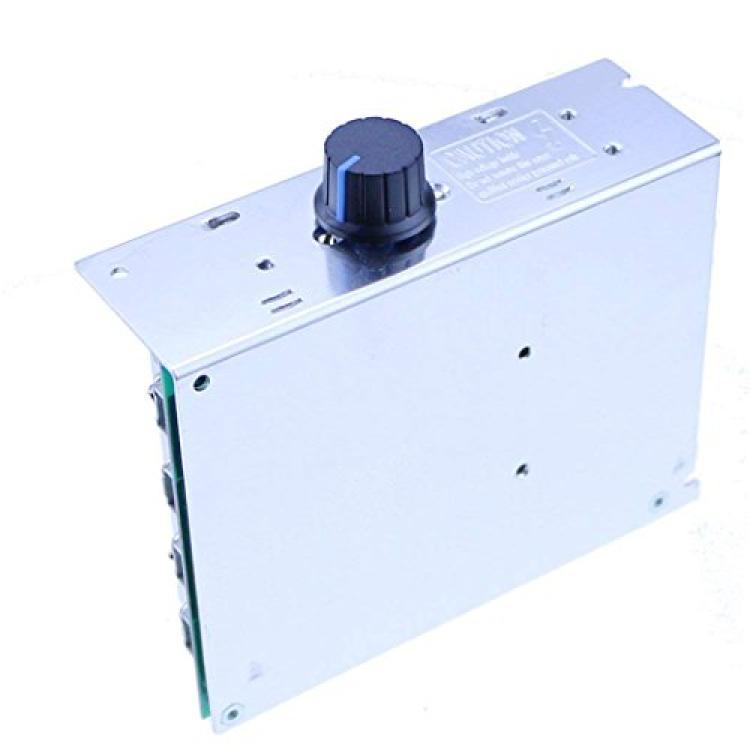

REES52 PWM DC Motor Speed Controller 10-55V 60A Motor Drive Module Controller Stepless Speed Switch
Availability: Pre-Order, Inquiry Price
About this product
*Is Discontinued By Manufacturer : No
*Package Dimensions : 6.6 x 4.9 x 1.8 inches; 7.04 Ounces
*Item model number : RS1079
*Date First Available : July 23, 2018
*Manufacturer : REES52-Pwm motor
Description
Feature
a microcontroller based control system to change the speed and direction of rotation of DC motor.
Armature voltage is varied by pulse width modulation (PWM) of input DC voltage by using the developed microcontroller's program.
Thus the speed of the DC motor is changed. The direction of rotation of DC motor is changed by initiating an interrupt signal to the microcontroller using push switches.
To drive the DC motor, a four channel monolithic integrated buffer circuit was used.
PCB of the control circuit has also been designed and fabricated. Test data shows very good agreement with the expected results.
Specification:
Output voltage: linear under load
MAX current:100A
Sustained current:55A
Speed control type: basins
Speed adjustment way: potentiometer (with switch)
Speed range: 0-100%
Control frequency: 15KHZ
Package Included:
1 x DC Motor Speed Controller
