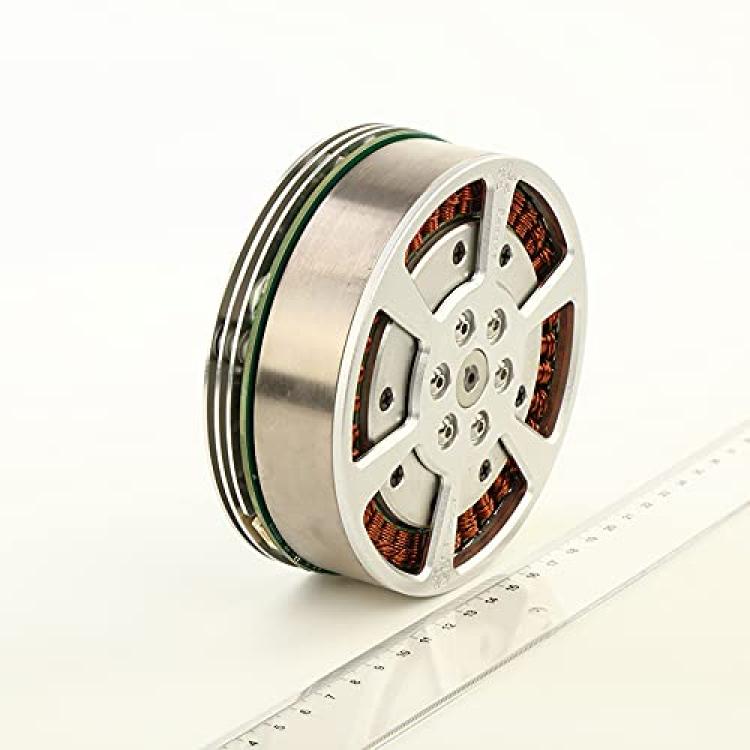

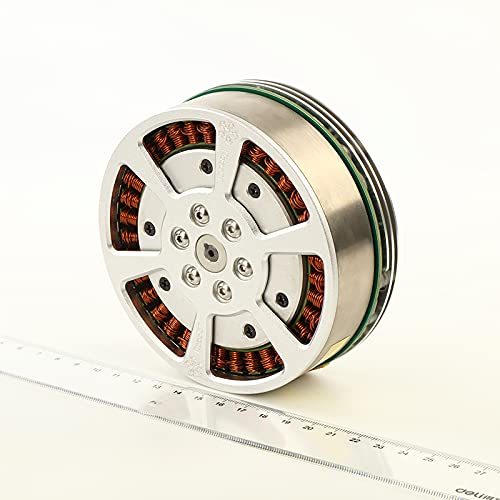

RoboCT BLDC Servo Motor with Controller 48V for Robotic Arm
Availability: Pre-Order, Inquiry Price
About this product
*Compact structure: compact stator and rotor structure, built-in encoder and driver
*Fast response: small moment of inertia, fast dynamic response
*Precise control: low torque ripple, easy to speed control and precise positioning
*Small and precise: the outer diameter is only 90mm, the large and medium-sized empty wire holes, ultra light weight, effectively ensuring the reasonable self weight ratio of the robot
*Ready to use: it can be directly connected with the joint module and the driving mechanical arm
Description
Place of Origin: HangZhou, China
Brand Name: RoboCT
Model Number: JA110
Usage: bionic robot, cooperative robot, welding robot, exoskeleton robot
Certification: CCC, CE
Type: SERVO MOTOR
Torque:2.5NM
Construction: Permanent Magnet
Commutation: Brushless
Speed(RPM):1615RPM
DC Current(A): 11.7A
Gear ratio:37.1
Cooling mode: natural cooling
Designed life: 8500 Hour
Product Name: Robot Joint Module Motor Robotic Joint Motor
Item: Joint Motor of Planetary Gear Reducer Robot
Application: Automatic Product Robot arm
Application: The joint module can provide multiple degrees of freedom for various machines. For example, bionic robot, cooperative robot, welding robot, exoskeleton robot and other fields meet the needs of different industries, such as industry, scientific research, commerce, medical treatment, etc., with wide application, stable quality and large shipment.
