BEMONOC DIY Design DC 12V Linear Actuator Reciprocating Motor 16RPM Stroke 70mm Adjustable+Switching Power Supply 110V-240V+PWM Speed Controller
Availability: Pre-Order, Inquiry Price
About this product

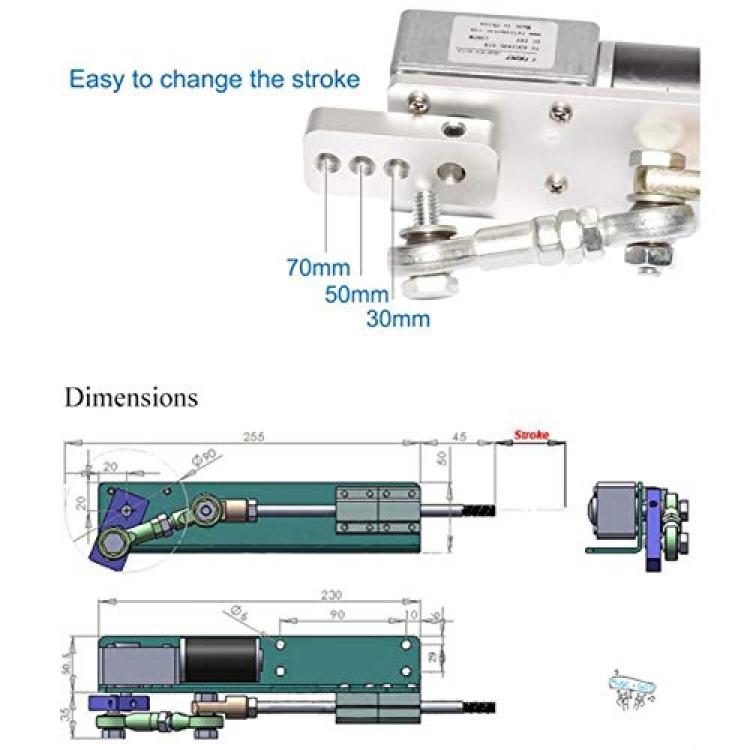

*✔Stroke(MM): 70mm ; Rated Voltage: DC12V; No load Speed: 16RPM; Rated Torque: 1.8kg.cm;Linear Actuator Dimensions(not include sliders ):9" * 2" * 2" (L*W*H);
*✔Quality Guarantee: All quality problems, pls send us e-mail firstly, we will give you satisfactory solution, and were concentrating on our constant improvement of product quality and customer service, pls trust our brand "BEMONOC" and give us the chance, thanks!
*✔Notice:Pls dont load larger than the maximum force;pls confirm your torque before you purchase it, thanks!

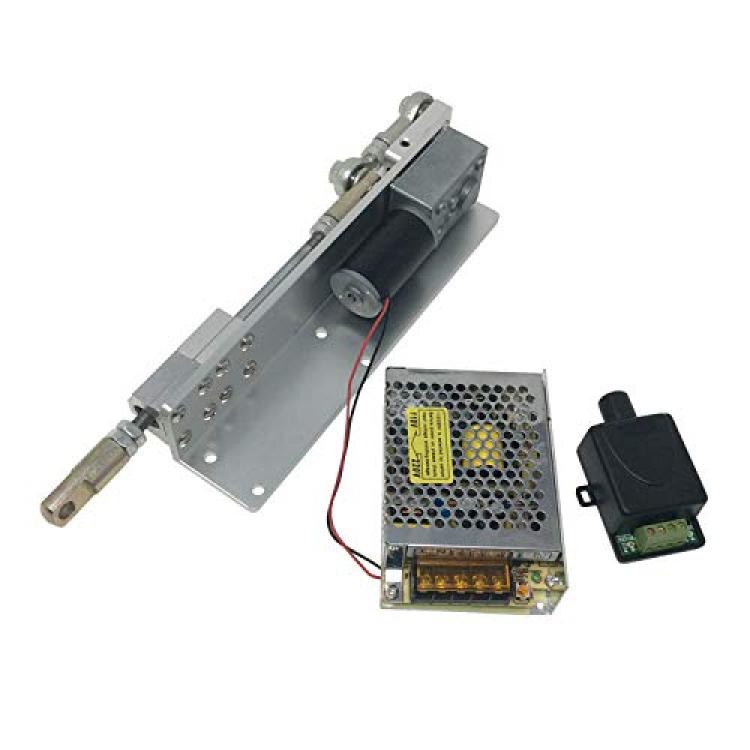

*✔Package Listing Includes:1pcs x DIY Reciprocating Actuator + 1pcs DC Gear Motor + 1pcs speed controller + 1pcs power supply + 1pcs x Allen Key + 1pcs wiring instructions.(The new and old styles are slightly difference, random ship, pls consider before you purchase!);
*✔Stroke(MM): 70mm ; Rated Voltage: DC12V; No load Speed: 16RPM; Rated Torque: 1.8kg.cm;Linear Actuator Dimensions(not include sliders ):9" * 2" * 2" (L*W*H);
Description

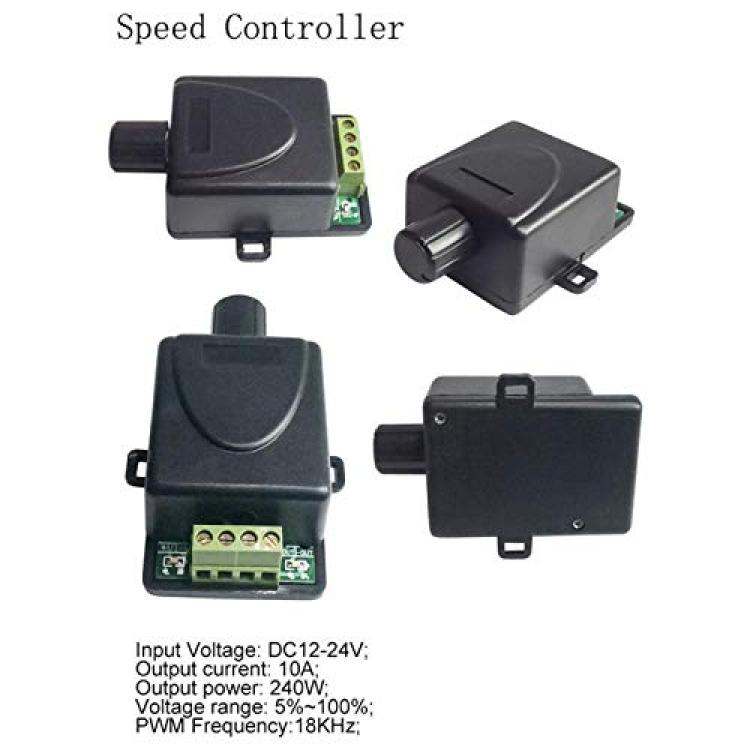

Speed Controller Product Description:
Input Voltage: DC12-24V;
Output current: 10A;
Output power: 240W;
Voltage range: 5%~100%;
PWM Frequency:18KHz;

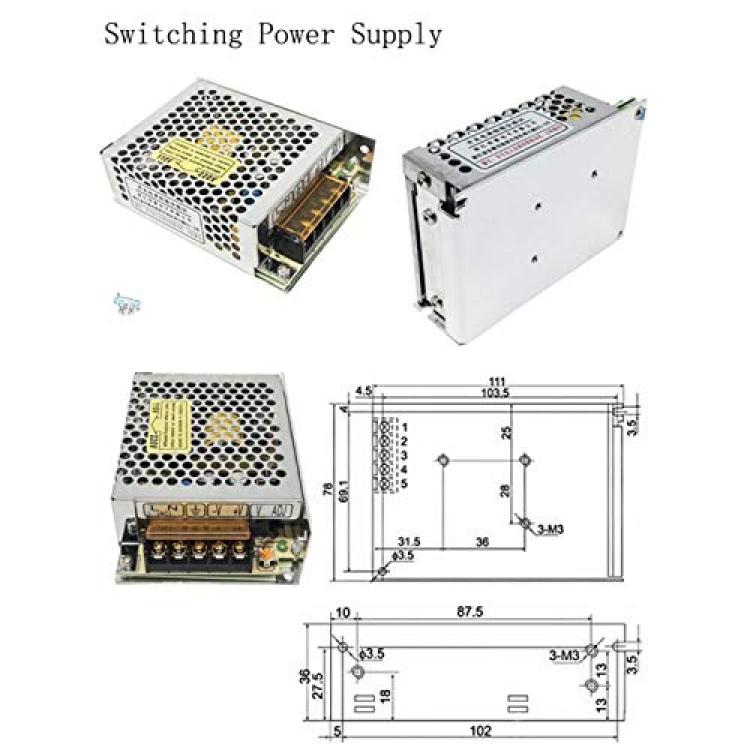

Switching Power Supply Product Description:
Output Voltage DC: 12V
Voltage Output: +/-1%
Output Current Rated: 6A Current Range Output: 0~6A
And Noise Wave: 100mVp-p
Stability Inlet: +/-0.5%
Stability Load: +/-.5%
Output Power DC: 75W
Efficiency: 78% Range for DC Voltage Adiustable: +/-10%
Voltage Input: 100~240V 47~63HZ
Current 1.6A/115VAC: 0.8A/230VAC Input
Current Leakage: <0.5mA/240VAC
Inrush Current AC: Start Current 18A/115V 36A/230V Cold
Protection Overload: Shut off current automatically, restore 105%~150%
Voltage Protection Over: voltage 105%~150% Output
Coefficient Temperature: +/-0.03%/ degrees C (0~50 degrees C)
Setup, Rise, up time Hold: 200ms, 100ms, 30ms
Voltage Withstand: and output internal input: and enclosure 1.5KVAC: output, and enclosure Input: 0.5KVAC
Temperature and Humidity Working: -10 degrees C~+60 degrees C, 20%~90%RH
Temperature and Humidity Store: -20 degrees C~+85 degrees C, 10%~95%RH
