Alomejor 600W Electric Brushless Controller Motor Sinusoid Mute Brushless Speed Governing Motor Controller for Electric Bicycle Scooter

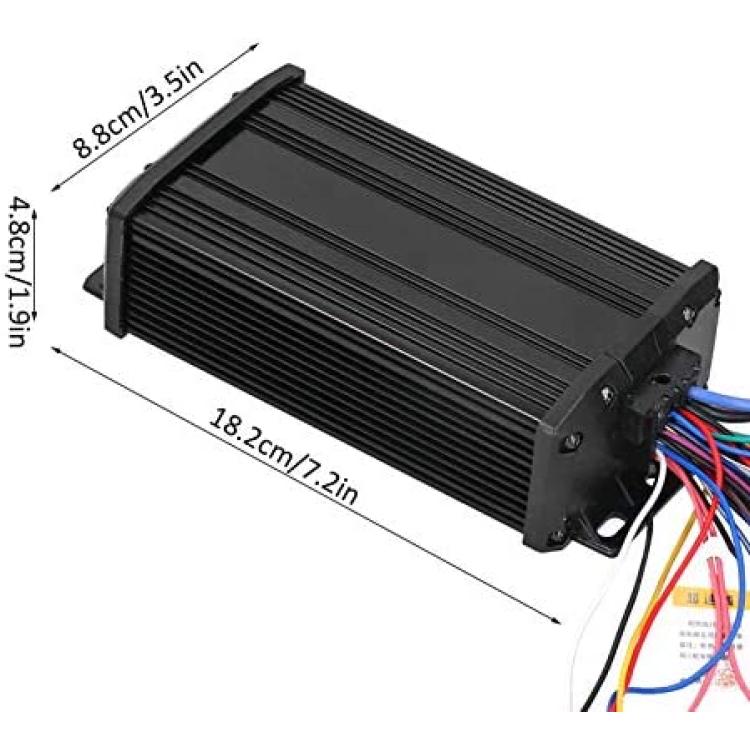

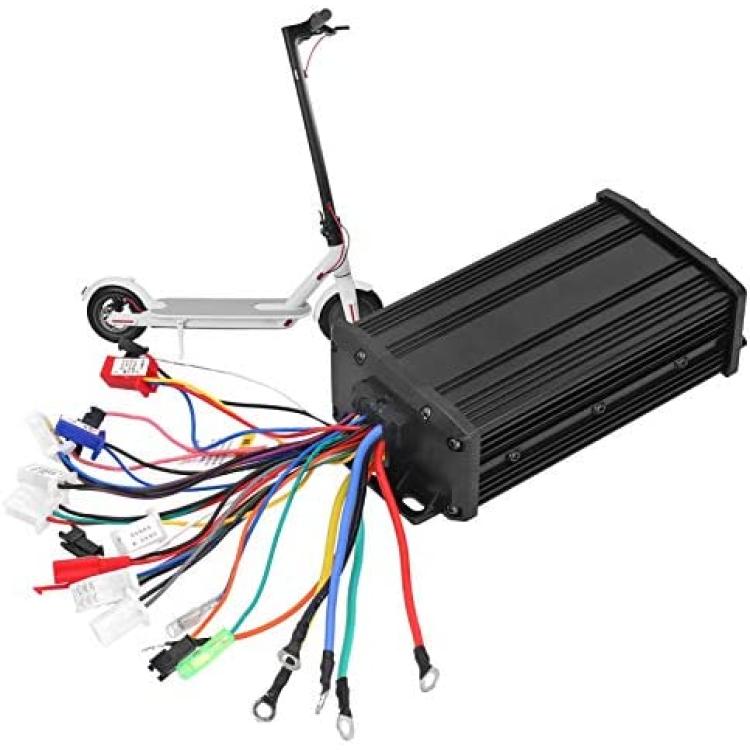

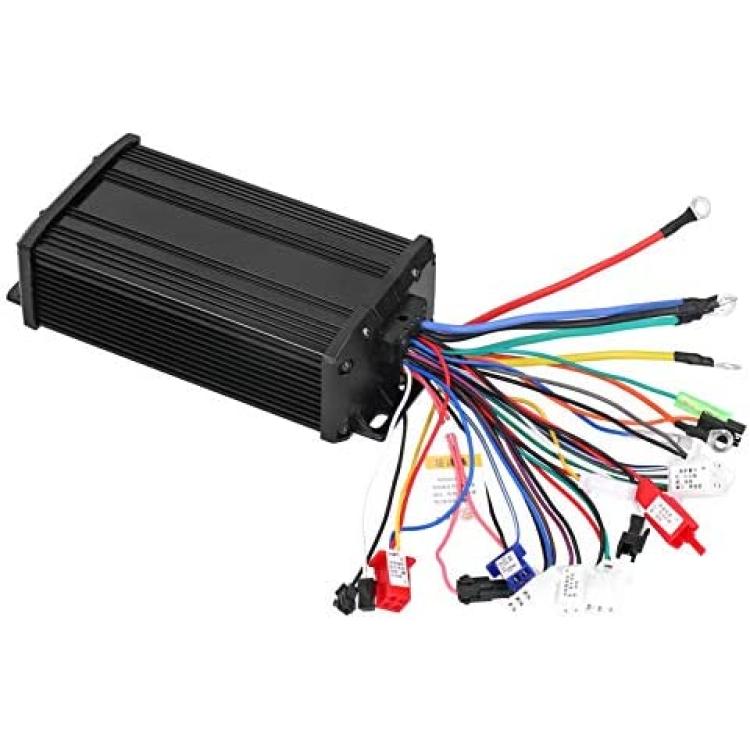

1. Red black and orange (power cord + electric door lock cord)-3 heads2. High storage battery brake cable3. Low storage battery brake cable4. Anti-theft power cord5. Turn handle line 6. Motor FOR Hall7. Third gear overspeed 8. Anti-theft alarm9. Yellow, green and blue 3 round head-motor wire (3 lines)10. White line black head-learning line (2 lines)11. Green line green head-instrument line12. Orange Blackhead-Cruising Line13. Black line black head-cruising line14. Black gray line-white connector-reversing function15. Blue transparent head-LCD meter16. Blue white line black line-blue head-jog three speed17. Pink paired wire: mute functionLearning line learning: Overhead motor, connect the power supply, motor, hall, handle, and plug learning line (two white wires), the motor will automatically rotate slowly after opening the key, if the motor reverses, please learn the line After disconnecting, plug in again (or turn the handle), the motor will rotate forward at this time, and the learning line must be disconnected after learning. This product is a general type for Hall and no for Hall.Item type: Electric Scooter ControllerMaterial: aluminiumColor: As picture shownSize: Approx. 18.2x8.8x4.8cm/7.2x3.5x1.9inWeight: Approx. 526gPower: 600WGOOD PERFORMANCE: The motherboard solution is better. The drive motor starts more smoothly and travels more comfortably. Strong climbing ability, low motor noise, eliminating tire noise.EXCELLENT HEAT DISSIPATION: The controller shell of brushless controller is made of aluminum alloy with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.INTELLIGENT DESIGN: Without matching the motor phase, it can perform intelligent self?learning recognition. Providing steady speed and sensitive control of braking and direction changes.HIGH STABILITY: The uphill torque of the controller is increased, the power is enhanced, the speed can be faster, the stability of the drive motor is better, longer life time.WIDE APPLICATION: Power tubes, capacitors, copper bars, etc. are better. Electric brushless controller is suitable for electric bicycle, electric scooter.
