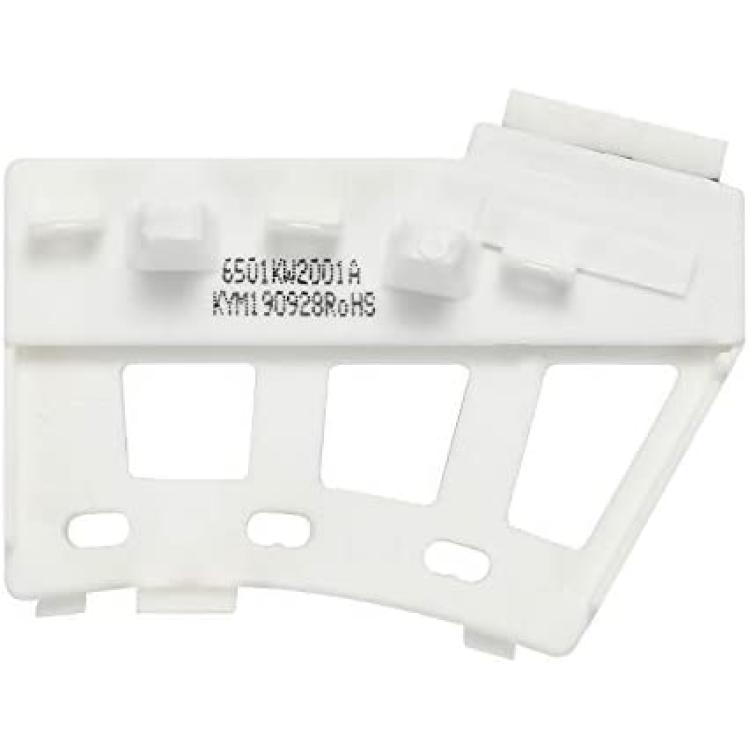

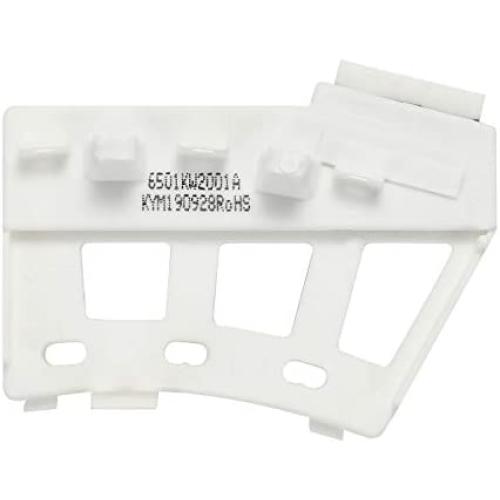

BlueNatHxRPR Washer Motor Sensor Washing Machine Rotor Position Sensor Compatible for LG Kenmore 6501KW2001A
About this product
*Production Name: Washer Motor Sensor,Fits for:LG and Kenmore Washer Part Number 6501KW2001A
*It is very easy to install and save your time and energy
*Design for fast repair and replacement,quick connect
*Made of durable high quality material and good-tested before sale
*1 year warranty
Description
Washer Motor Sensor
Compatible for LG and Kenmore Part Number:6501KW2001A
This is 6501KW2001A, NOT 6501KW2002A,Please conform fitting washser models types first
Fit for Following Washer Series: models WM1814CW, WM2016CW, WM1812CW, WD90282BD, F1403FD9, WD13330TD, WM3455HW, F1403FD, WD10583BD, WD1474RHD, WM1355HR, WM1355HW, WM3431HS, WD1243RHD, WM3431HW, WD1245RHD, WD3243RHD, WD3245RHD, WD14311RDK, WM1815CS, WD14316RDK, F1403RD, WM2010CW, WD3274RHD, WD90280BD, WD10580BD, WD14311RD, WD14316RD, WD90286BD, WM1333HW
Remark:
1.This Rotor Position Sensor is actual Hall sensor, most used for converter drive washer,feed back rotation's signals to washer controller
2.The phenomenon of this washer motor sensor part broken, is that washer drum not move, move not smoothly or abnormall noise
3.Power off and unplug, advise to remove back cover of motor, push washer drum to move by hand,drum mechanical parts is good if it rotates smoothly.Conform mechanical problems first
4.Directly replace motor sensor
5. Normaly the Ohm value between 1(the rightest side terminal) and 5(the leftest terminal), value 1-4, are about 10K Ohm with a digital meter testing
