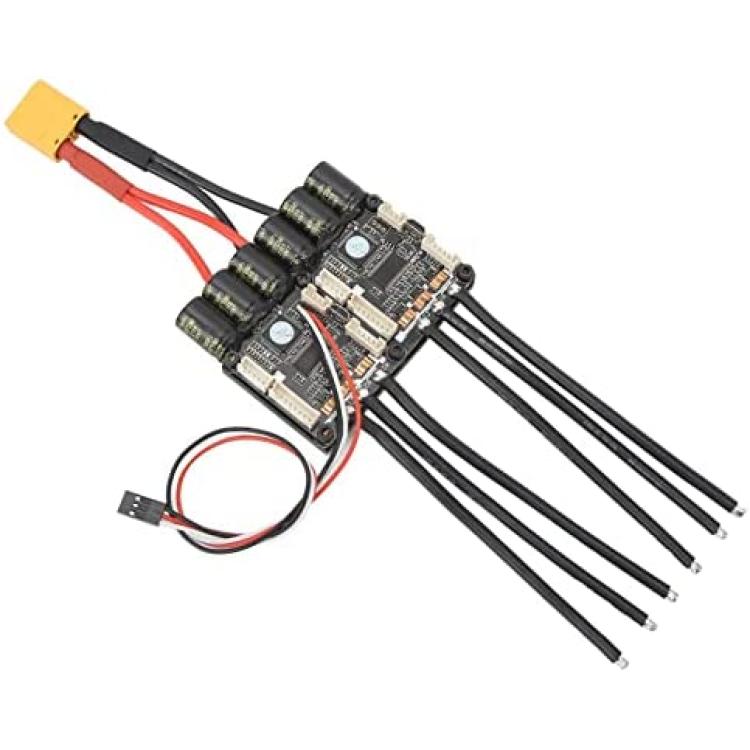

Electric Speed Controller, Aluminum Alloy Heat Sink Dual Drive USB Firmware Update 14-60V Multi Control Mode 150000 EPRM ESC Regulator for Industrial
About this product

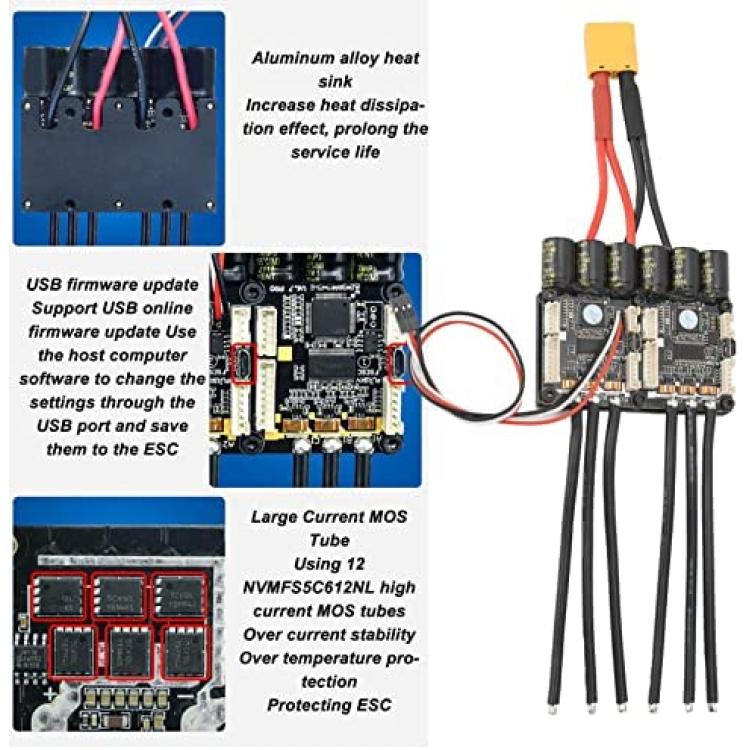

*Real Time Analysis: This electric speed controller supports real time data reading and analysis through the USB port, including voltage, current, etc.
*Good Heat Dissipation: Using aluminum alloy heat sink, increase heat dissipation effect, prolongs the service life.
*Update Support: Support online firmware update through USB port, use the host computer software to change the settings and save on the ESC.
*Large Current MOS Tube: Using 12 NVMFS5C612NL high current MOS tubes, has good over current stability, with over temperature protection.
*Multi Function: The electric speed controller supports current, duty cycle, speed and position control, has good practicality.
Description
Feature:
1. Real Time Analysis: This electric speed controller supports real time data reading and analysis through the USB port, including voltage, current, etc.
2. Good Heat Dissipation: Using aluminum alloy heat sink, increase heat dissipation effect, prolongs the service life.
3. Update Support: Support online firmware update through USB port, use the host computer software to change the settings and save on the ESC.
4. Large Current MOS Tube: Using 12 NVMFS5C612NL high current MOS tubes, has good over current stability, with over temperature protection.
5. Multi Function: The electric speed controller supports current, duty cycle, speed and position control, has good practicality.
How to Use:
Please use the tool to adjust the parameters before use.
Specification:
Item Type: Electric Speed Controller
Material: Aluminum alloy
Voltage: 14-60V (4-12s safe), the voltage should not exceed 60V
Continuous Current: Single 70A, dual 140A
Pulse Current: Single 200A, dual 400A
EPRM: 150000

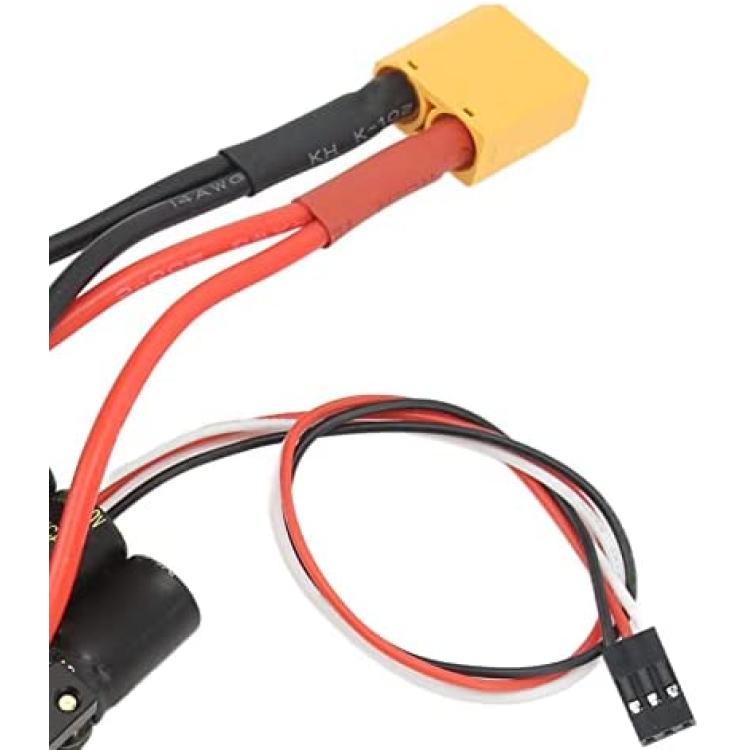

Motor Cable: 12AWG
Power Cable: 14AWG
Communication Method: PPM, ADC, NRF, UART, SPI, IIC
Communication Port: USB, CAN, UART
Supported Sensors: ABI, HALL, AS5047, AS5048A
Control Mode: Support current, duty cycle, speed, position control mode

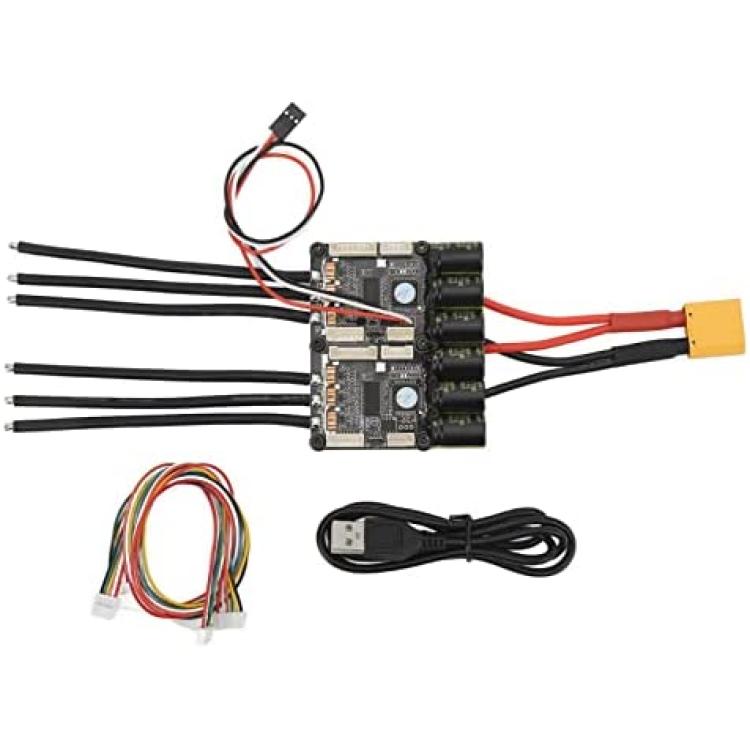

Package List:
1 xElectric Speed Controller1 x Data Cable
2 x Wire Set
1 x English Manual
Note:
Please read the manual carefully before use, understand the wiring diagram, and avoid wrong wiring.
