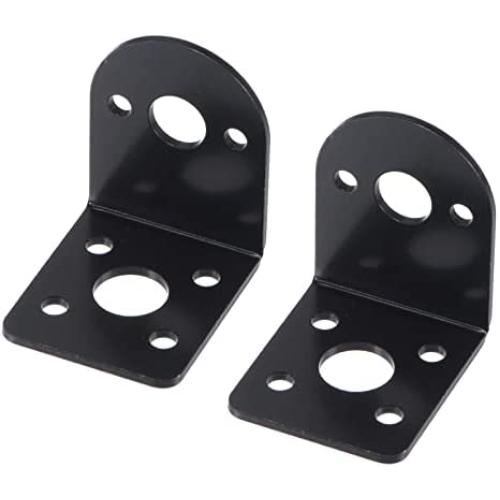

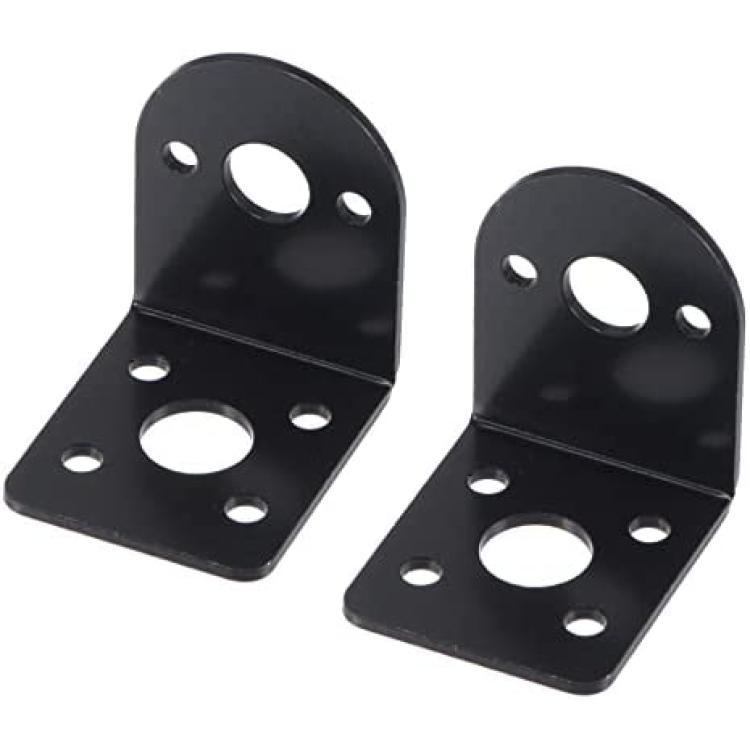

MECCANIXITY Motor Base Motor Mounting Bracket Holder 32x26x32mm Black for Gear Motor 2 Pack

About this product

*Motor mounting bracket is mainly used for motor, which mainly plays a fixing role. Mounting bracket is a good accessory for gear motor and is widely used

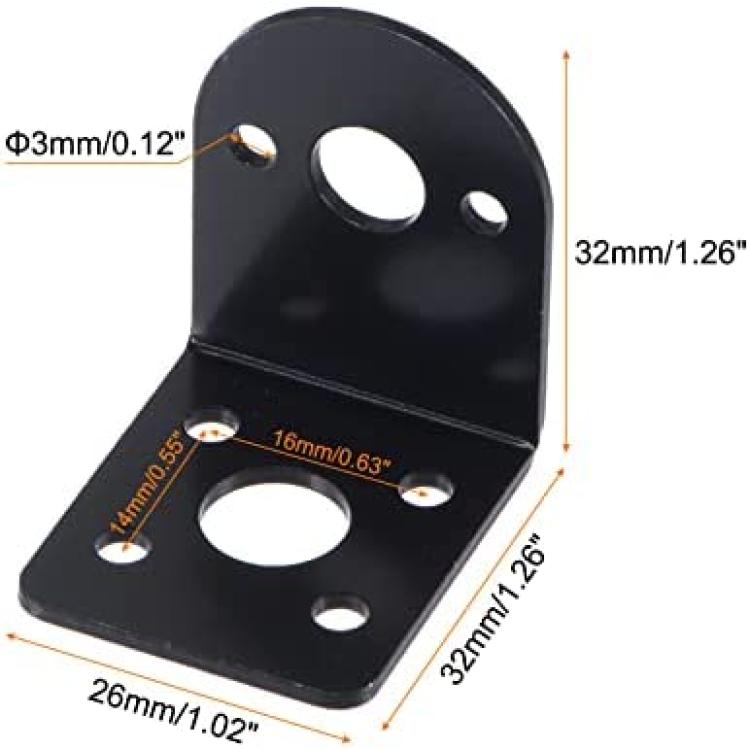

*Motor mounting bracket, is in size of : 32mm x 26mm x 32mm/1.26-inch x 1.02-inch x 1.26-inch(L*W*H)total size, 3mm/0.12-inch motor mounting hole dia, 17mm/0.67-inch motor mounting hole center distance, 4mm/0.16-inch bracket mounting hole dia, 14mm/0.55-inch and 16mm/0.63-inch bracket mounting hole center distance, 10mm/0.4-inch shaft hole dia

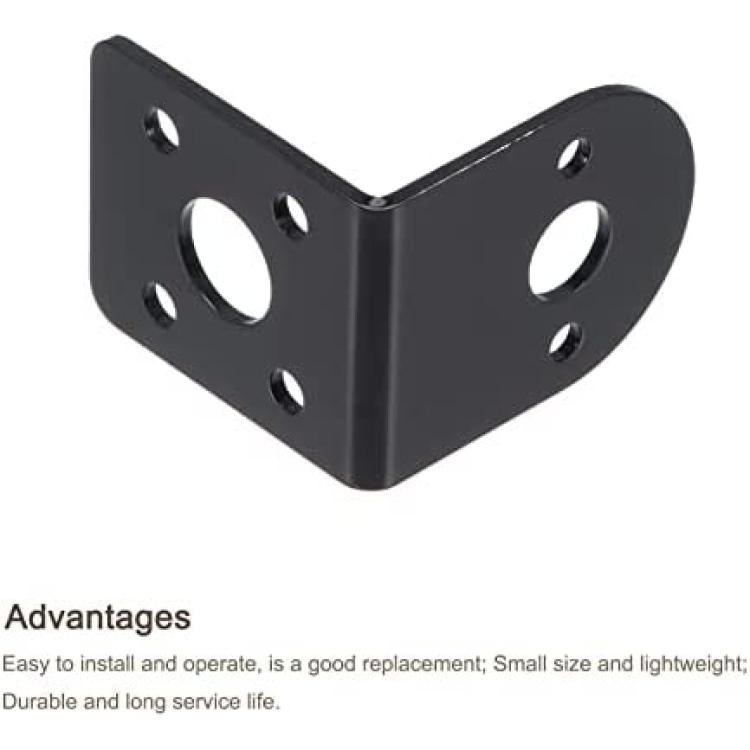

*Easy to install and operate, is a good replacement; Small size and lightweight; Durable and long service life

*Steps of installation: 1. Select motor mounting bracket of appropriate size; 2. Remove the motor mounting bracket to be replaced; 3. Installation

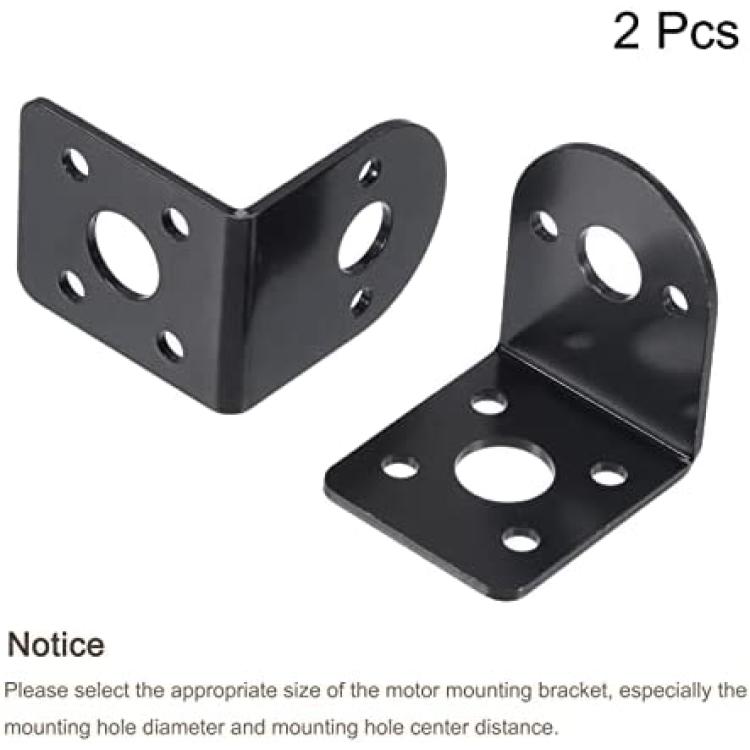

*Please select the appropriate size of the motor mounting bracket, especially the mounting hole diameter and mounting hole center distance
