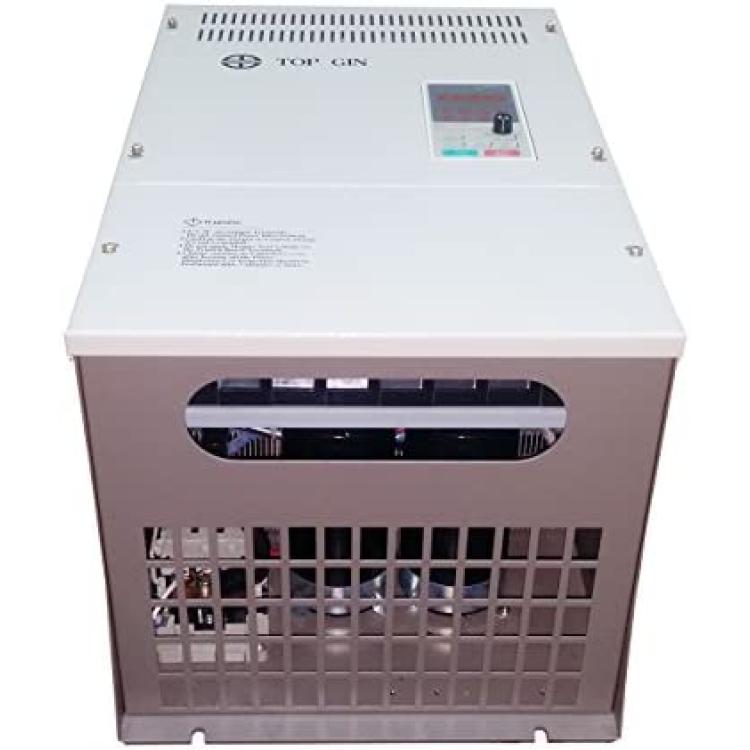

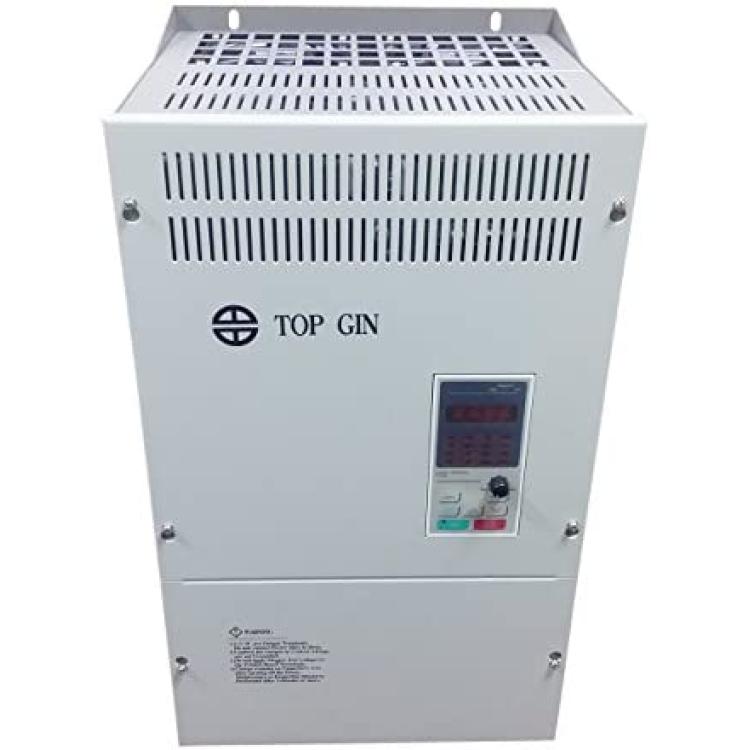

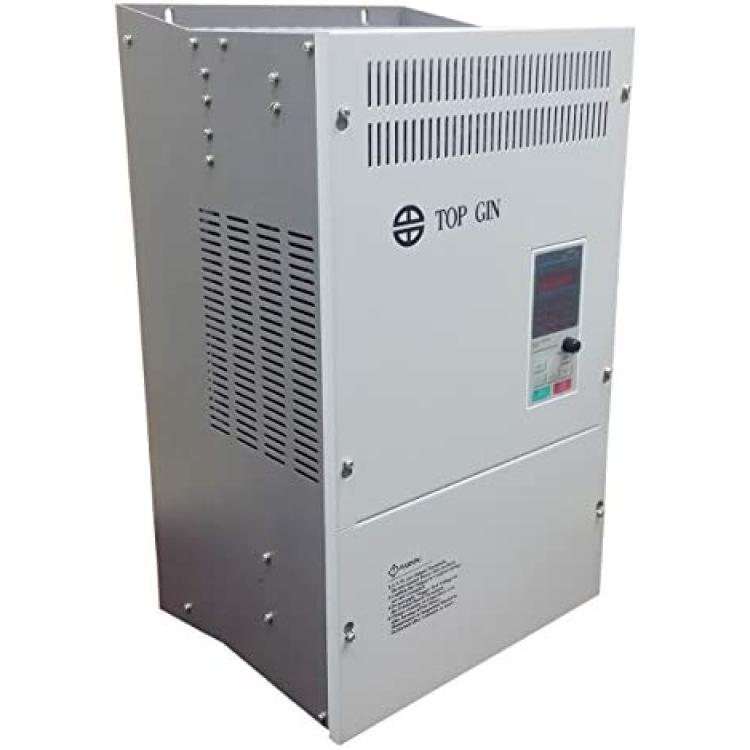

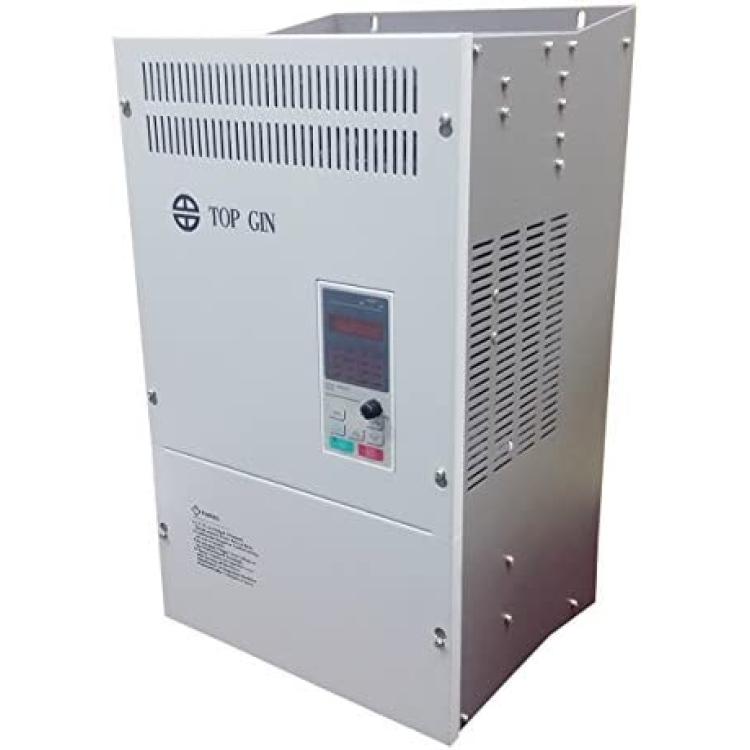

TOP GIN New General Purpose Inverter Variable Frequency Motor Drive VFD 30KW 40HP 220V 105A Knob Operated Control For Spindle Motor Speed Control With English Operation Manual (VFD-30KW 220V)

Introduction
General Purpose Inverter which can be used as a motor speed control.
Ideal for medium & large horsepower applications.
With perfect error protection and designed to provide an ultra low noise operation, and
contain with several innovative technologies that reduce interference.

Parameter
Control Mode:SPWM
Power: 30KW
Input Phase: Three phase
Output Phase: Three phase
Type: AC Inverters

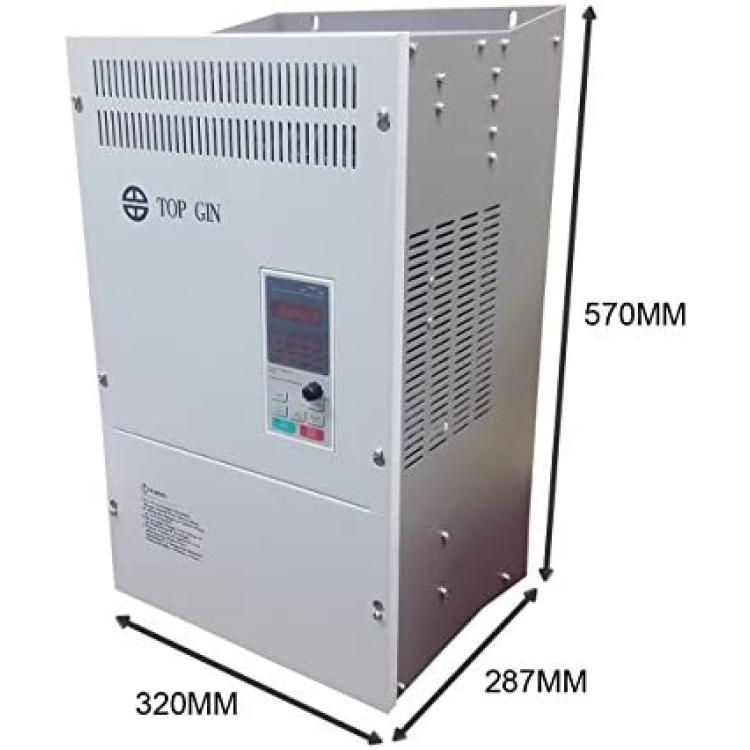

Dimensions: 570*287*220mm
Input Voltage: 200~240V
Output Voltage: 200~240V
Input Frequency: 50Hz /60Hz
Output Frequency: 0.01Hz-400Hz
Working Temperature:-10~40?
Humidity: Below 90% Relative Humidity (non-condensing conditions)
Vibration: Below 20Hz:1G, 20~50Hz: 0.2G

Feature
1. Automatically calculating the required torque for loading to achieve the goal of smooth starting.
2. Reliable Torque Control
3. Maintaining the best operation efficiency of the motor by automatically adjusting the voltage of an operating motor.

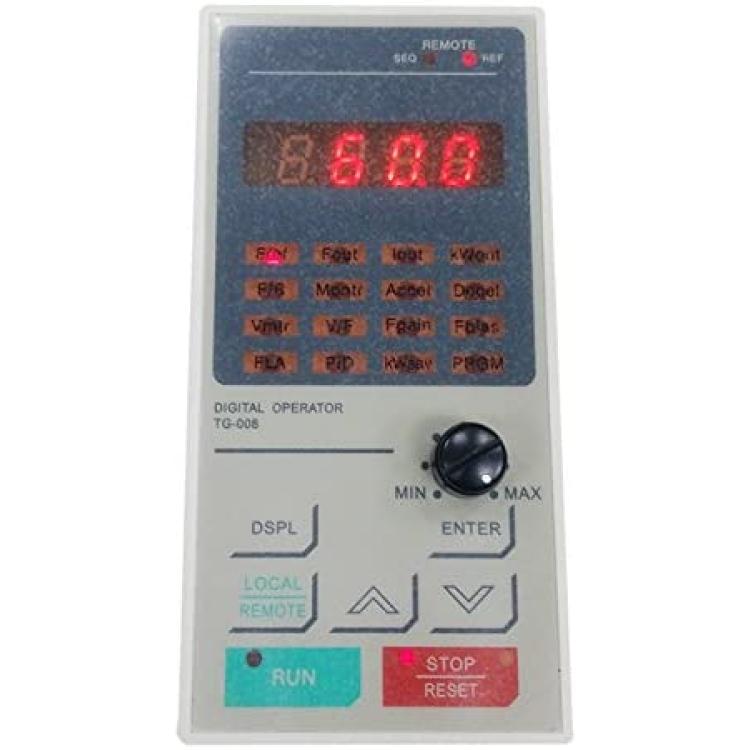

4. Knob operated control, easy to use
5. 1 year Warranty
6. Original manufacturing production and sales
7. Internally installed with a PID control software which may control and current and air volume without an external PID controller.

Application
Air compressors, Injection molding machine, Chiller, Pump, Ceramic, Fans, Drilling machine, Conveyer belt,
Textile machines, Woodworking machines, Small size milling machine, Punching machine,
Machine tools, Mixer for food processing,…etc.
