Universal Ceiling Fan Remote Control and Receiver Kit, Replacement of Hunter, Hampton Bay, Harbor Breeze, 3-Speed, Light Dimmer, Replace for Fan-HD, UC7078T, HD5, CHQ7078T
Description
Universal Ceiling Fan Remote Control Kit
This kit is designed to separately control your ceiling fan speed and light brightness.
It has excellent carrying power, which far beyond the market's carrying power capacity, the superior rated power capacity carrying allows you to access more light bulbs, greatly increase the time of use.
Our products are regular original OEM products with reliable quality.
More Details:
1.There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.
2.The light button will control the light brightness dimmer and on/off.

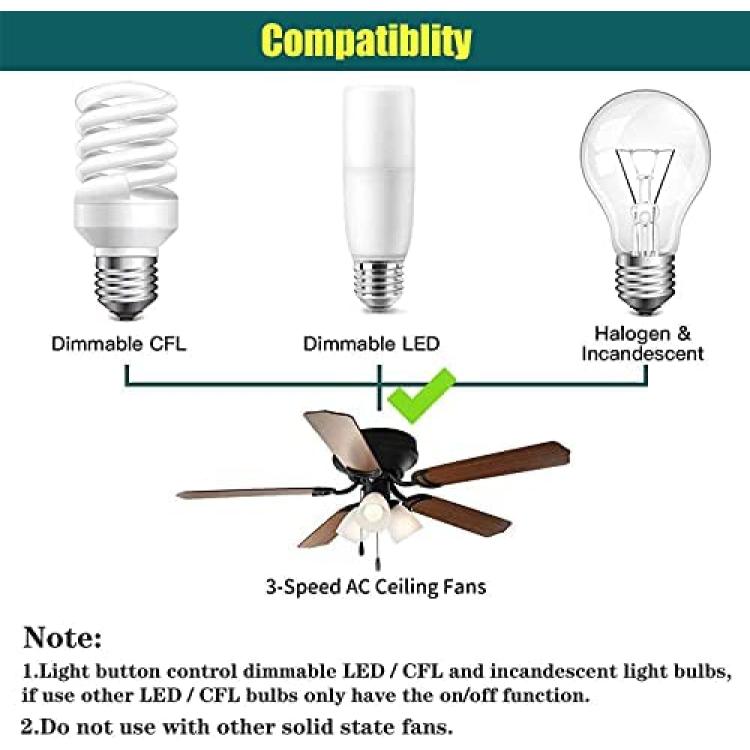

(Note: dimmer function require use halogen, incandescent, and some dimmable LED/CFL bulbs, if use other bulbs only have the on/off function.)
3.The red indicator on the transmitter(remote) will light when one of the five buttons is pressed.
4.Electrical rating: 120v 60Hz 3.5A
MAX. Motor amps: 1.0
MAX. Light watts: 240-(incandescent or ballast)
REMINDER:
1. Please set a new DIP switch pattern for the remote control and receiver before installing the receiver.
They have a default pattern, do not use this pattern.
To choose a DIP switch pattern you like, just make sure that the DIP switch pattern of the remote control is the same as the DIP switch pattern of the receiver.
The list of patterns: (0 is down and 1 is up) 0000, 0001, 0010, 0100, 0110, 0101, 0011, 0111, 1111, 1110, 1101, 1011, 1001, 1010, 1100, 1000
2. If you have PULL CHAINS SWITCH, before using the wireless remote control, use the PULL CHAINS SWITCH to turn the wind speed to maximum and turn the fan light on. Only in this way can the PULL CHAINS SWITCH and wireless remote control be used together.
3. Do not use with solid state fans.

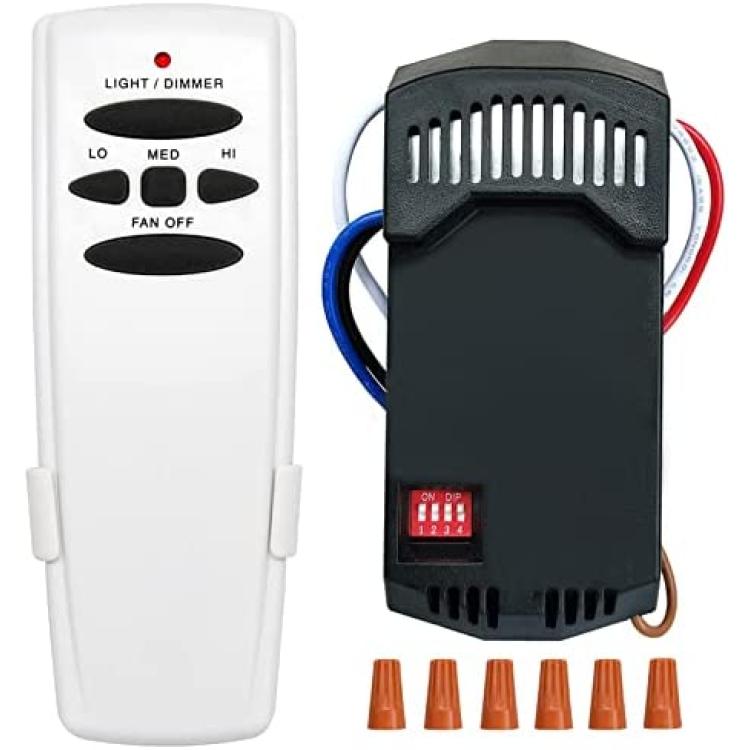

Package Includes (9V battery is not included)
1* Remote Control
1* Receiver
1* Wall mount
2* Screw
6* Wire nuts
Any question, please feel free to contact us.
