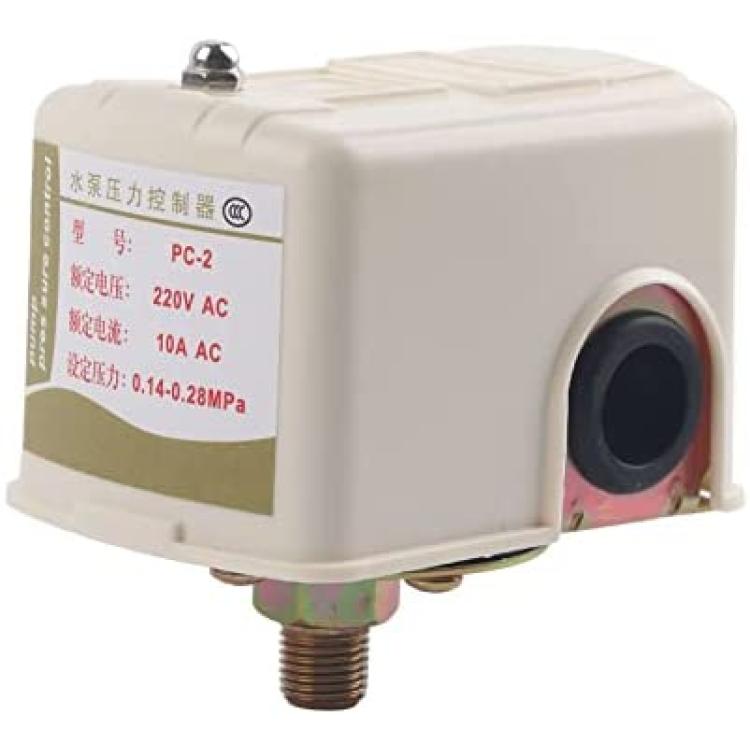

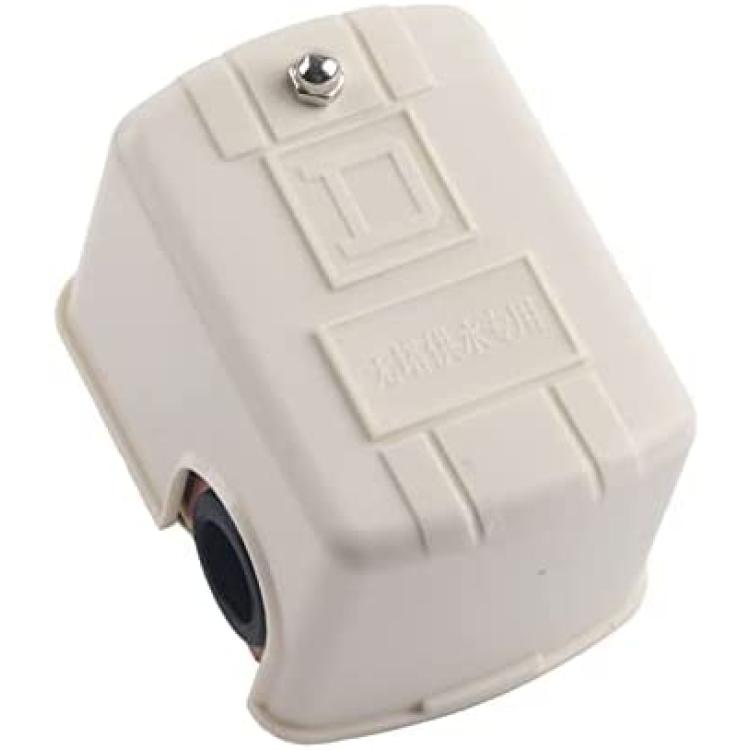

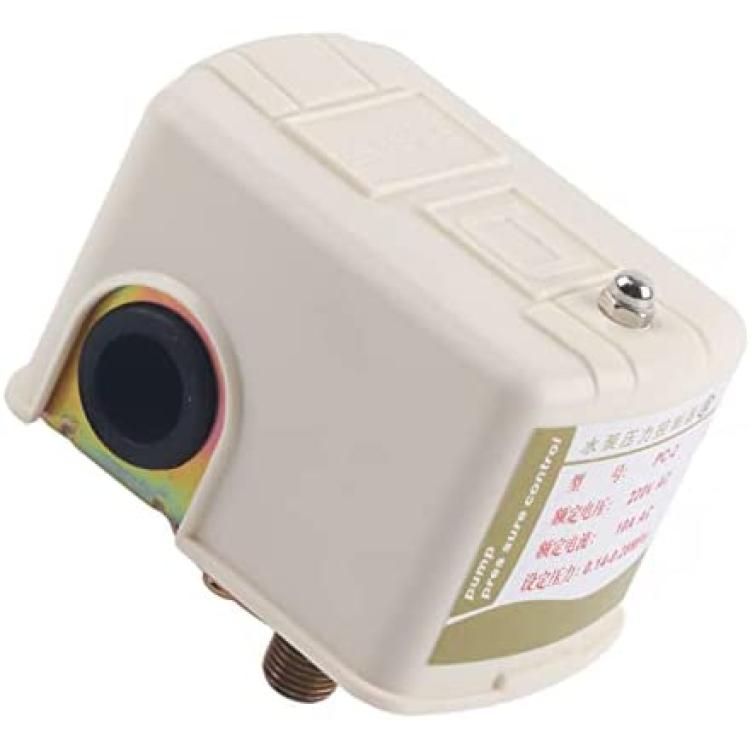

220VAC Well Water Pump Parts Double Pole Adjustable Pressure Control Switch Pumptrol Water Pressure Switch Double Spring Pole

Features:

Specifications:

Rated Voltage: 220VAC

Rated Current: 15A AC

Rated Isolation Voltage Ui: 380V

Rated Conditional Short-Circuit Current: 1000A

Fuse Model for Rated Conditional Short-Circuit Current Test: RL6-10/25A

Conventional Thermal Current Ith: 10A

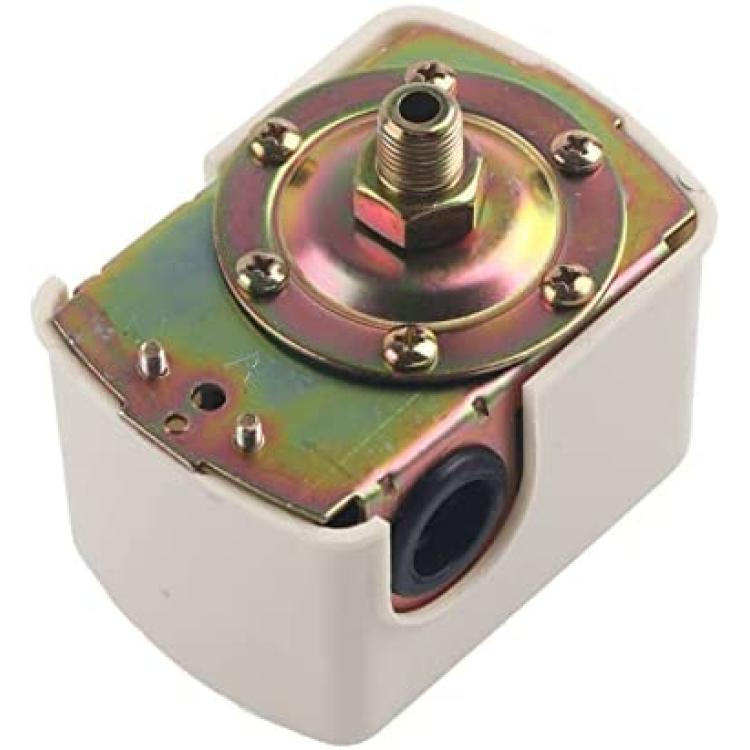

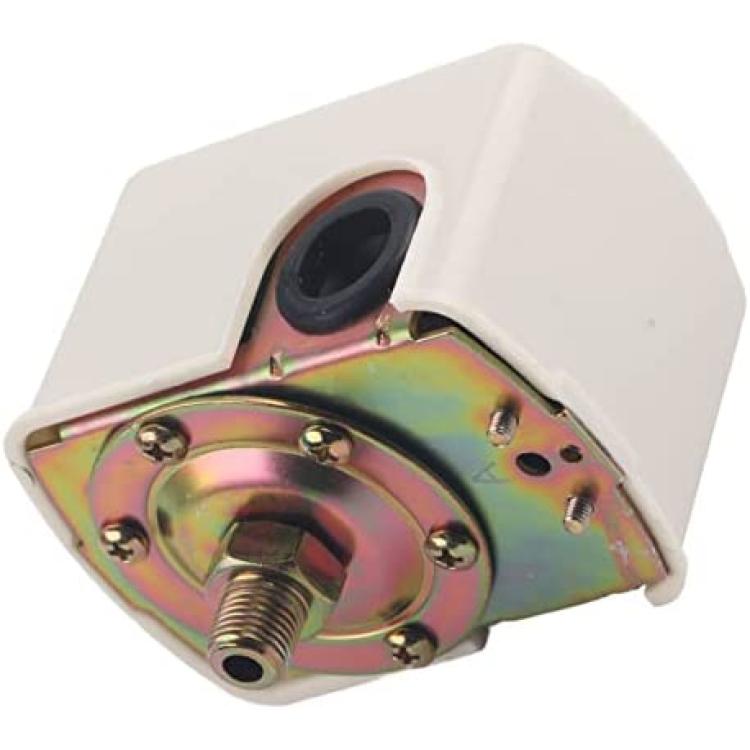

Thread Size: ZG1/4(internal and external?

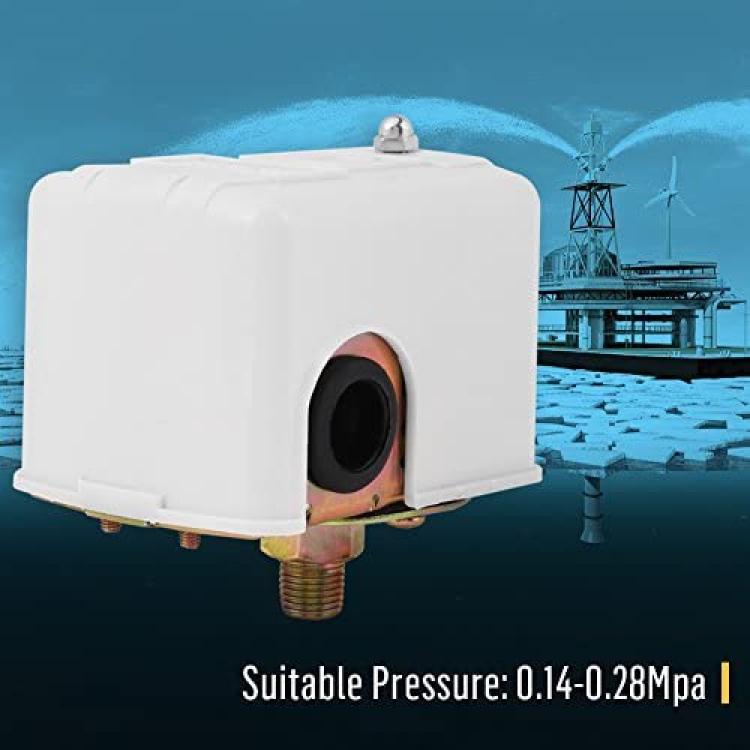

Set Pressure: 0.14-0.28Mpa

Size: 10*9.5*7cm/3.9*3.7*2.7in

Weight: 356g(approx.)

Installation Note:

1. When installing this pressure controller, the connection thread should be well sealed without water leakage; otherwise it may cause motor frequent turning on and off and eventually burning-out.

2. Wire inlet and outlet should be well fixed, in order to prevent any wire damage.

Package Includes:

1 x Switch
