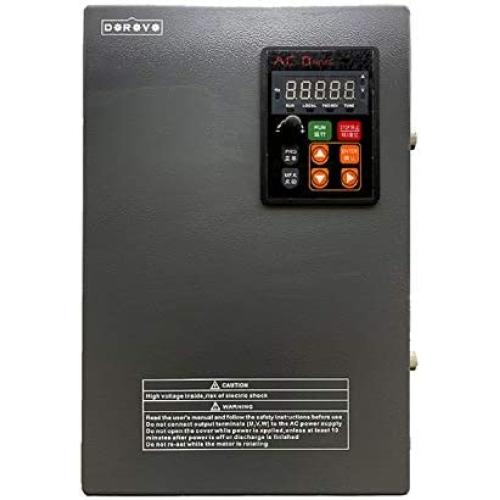

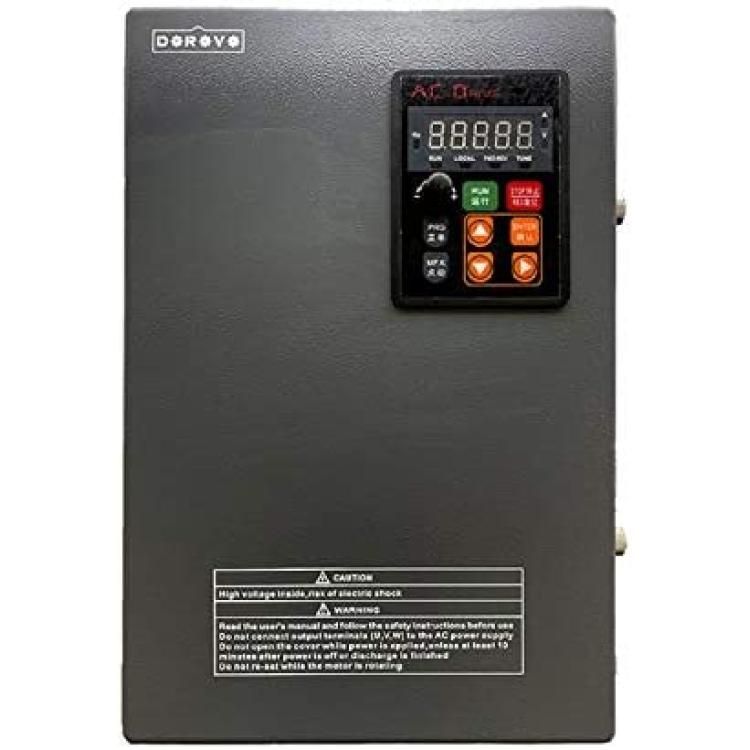

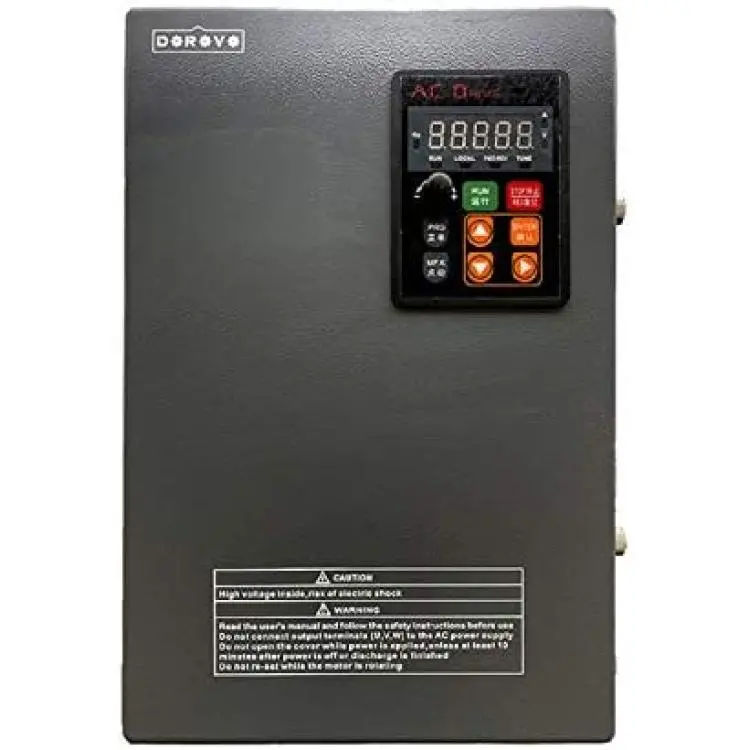

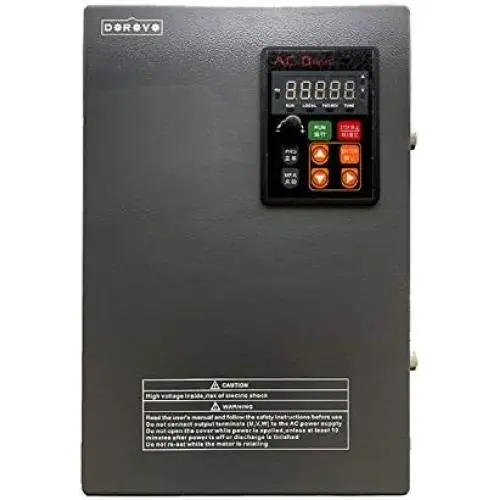

Vector Control VFD Variable Frequency Drive Controller Inverter Converter 220V 25 A 5.5 KW 7HP 3 PHASE

Input power supply: Single-phase 220V
Control Method: Sensorless flux vector control (SFVC)/Closed-loop Vector control(CLVC)/ Voltage/Frequency (V/F) control
Basic function:: Speed tracing, PID control, auto speed compensation, AVR, torque control, overlay control, time control, multi-speed choice, etc.
Speed Adjusting Range: :1:100(SVC)/1:1000(CLVC)
Digital Display/Status Indicator: Display frequency, speed, current, voltage, counter, temperature, forward/reverse, fault…
Communication Control: RS485
Frequency Control:
*Range: 0~320.00HZ
*Accuracy: ±0.5%(SFVC), ±0.02%(CLVC)
*Frequency Setting Resolution- Digital setting :0.01HZ; Analog setting: maximum frequency ×0.025%
General Control:
*Acceleration/deceleration time: 0.0-6500s four combinations of independent acceleration and deceleration setting
*V/F Curve: Set V/F curve at will
*Torque Control-G type: 0.5 Hz/150%(SFVC);0Hz/180%(CLVC)
-P type:0.5Hz/100%
*Multi-function input terminal: 7 multi-function input
*Multi-function output terminal: 5 multi-function output
*Others: Decelerating stop or free-stop, DC brake, auto restart tracking

Individualized functions:
*Power dip ride through: The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
*Multi-motor switchover: Four motors can be switched over via four groups of motor parameters.
Multiple communication: It supports communication via Modbus-RTU, PROFIBUSDP, CANlink and CANopen.

Protection Function:
Short circuit test, phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection.

Environment:
Operating Temperature: -10°C to +40°C (de-rated if the ambient temperature is between 40°C ~ 50°C)
