Wireless Garage Door Opener Remote WiFi Switch Universal Controlled by Smartphone for Automatic Gate Opener System (Without Door Sensor)

Brief introduction

The Smart WIFI opener remote switch can open and close your doors (both residential and commercial doors, including garage door, AC/DC sliding door, swing door, rolling door, automatic door etc.) from anywhere with your smartphone. Easy-to-add functionality with existing garage door openers. No subscription or hub is required. All your existing traditional remotes, wall switch(es) and accessories will continue to work just as they did before.

Foreword

1. Pls double check the size of the switch(need 86 type mounting box)

2. Pls make sure there is a neutral wire in your mounting box, which is required for installation

3. Be sure the wiring is correct. Electric knowledge is required

4. Cut off the power before all wires are connected correctly.

5. Free APP is WiFi Smart Control or Smart Life, Alexa skill name is Smart Life.

6. Wires, magnetic door sensor and mounting box are not included.

7. Switch and phone must be under the same 2.4Ghz Wi-Fi channel when pairing. After successful pairing, switch can be controlled via mobile network(2G/3G/4G/5G) and WIFI.

Advantages

·Can modify the switch and button name on mobile APP

·Can authorize to multi-users to control the device

Compatibility check: https://images-na.ssl-images-amazon.com/images/I/81RSCxXgUhL.pdf

Manual: https://images-na.ssl-images-amazon.com/images/I/91z-NpHMHAL.pdf

One LT3/LT3X can only connected to one main account, and then the main account can share to others without number limit.

The shared accounts canÂ’t share to others again, the main account can control all the shared accounts, can delete it anytime if you want to stop sharing.

You can control your door/gate anytime and anywhere by smartphone after pairing successfully.

Switch and smartphone must be under the same 2.4Ghz WIFI channel when pairing. After successful adding, switch can be controlled via mobile network (2G/3G/4G/5G network and WIFI).

Works with Amazon Alexa and Google Assistant, you can open your door/gate by voice.

Support commands:

1. Alexa, turn on Button A (or Button B/Button C).

2. Alexa, open Button A (or Button B/Button C) on.

You can modify the button name, then you need to say the name you modified to Alexa.

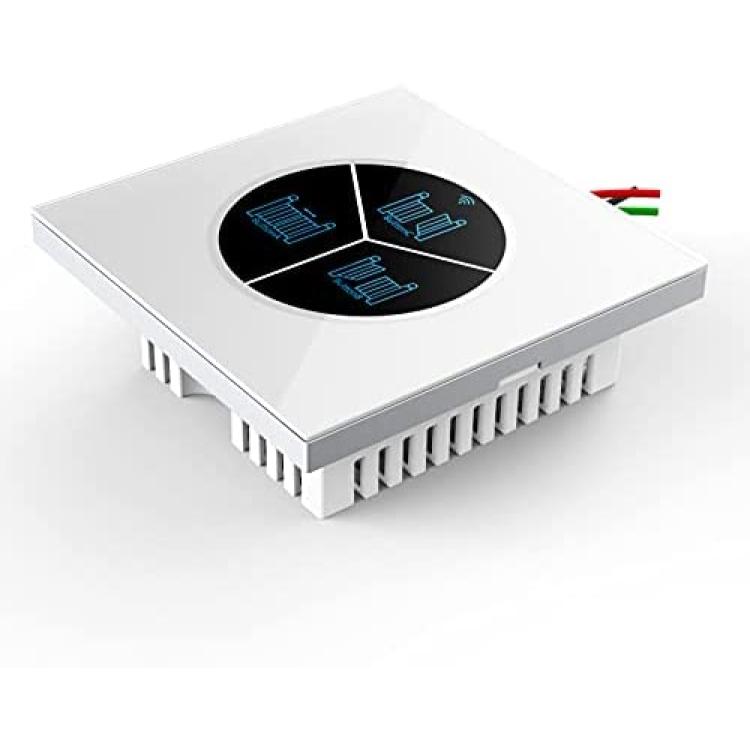

·Size:86*86*34mm (3.39*3.39*1.34inch, need 86 type mounting box).

·Fingerprint-proof tempered glass touch panel.

·Build in WIFI receiver.

·Power supply: 90-240V, 50/60HZ AC power or 9-30V DC power, universal use.

·A/B/C output power: 10A/2000W/Way

·Wireless IEEE standards: WIFI 2.4GHz b/g/n

·Security type: WEP64/WEP128/CCMP(AES)

·Security mechanism: WEP/WPA-PSK/WPA2-PSK

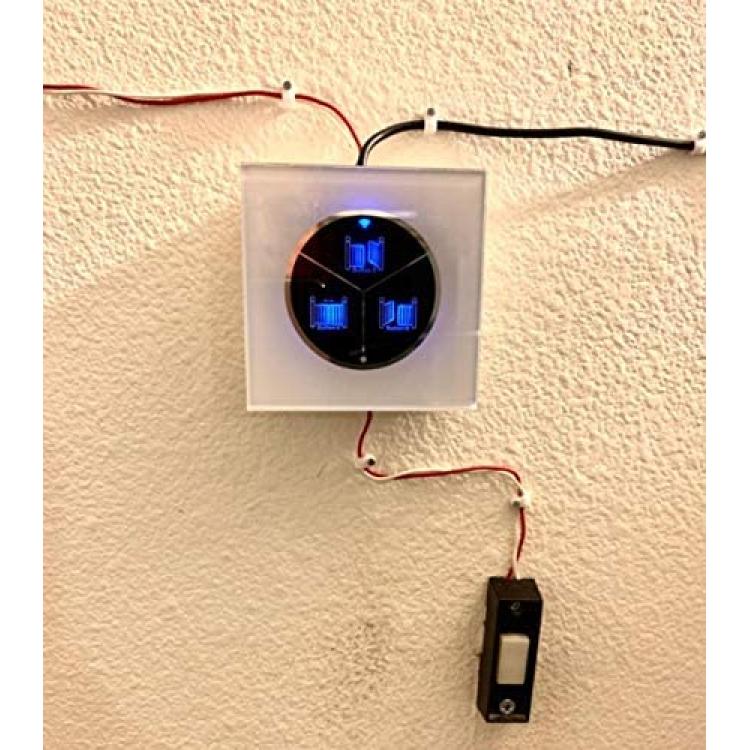

·Simply connect the LT3/LT3X A and Com terminals in parallel to your wall switch control box. (A to positive +, Com to negative -, find out the positive pole by using electric pen before the wires to push-button control box.)

·If your garage door opener doesn’t have wall switch, then you can connect LT3/LT3X A and Com terminals to the opener board directly.

·90-240V, 50/60HZ AC power. If you want to use AC power, then connect L and N terminals to AC power.

·9-30V DC power. If you want to use DC power, connect the red and black wires to DC power(red wire to positive, black wire to negative).

·If AC and DC power both connected, the primary power supply is AC power.

You need to buy a door sensor to connect to the switch green and black wires, then you can see door open/close status on your mobile APP. (The door sensor part with wires installed on the door frame, and another part without wires installed on the moving door.)

1.Download free WIFI SMART CONTROL APP on Apple Store or Google Play Store.

2.Use your phone number or email to register an account.

3.Click “+" on APP top right corner.

4.Press "Button C" on the smart switch for around 10 seconds, till the WIFI indicator turn into blue and flashing quickly, then click "Confirm indicator rapidly blink" on mobile, then enter the WIFI password and confirm, waiting for connecting.

5.Add completed, you can change the device/buttons name and share with families.

6.If the connection fails, pls press the C button of the switch again for 10 seconds, wait for the WIFI indicator flash again, and then reconnect to the WIFI.
