Automatic Wire Stripper Machine Wire Diameter 0.04-0.79inch Wire Stripping Machine Adjustable Power 40W Portable cable stripper for Scrap Copper Wire Cable Recycling
About this product
*【40W MOTOR】- Our wire stripping machine has a 40W strong motor, 110V 60HZ, silver. A compact and long lasting frame of aluminum alloy, lightweight with 2.5kg( 5.51lbs) to be portable and easy to use. It can be mounted easily to any bench or work station.
*【LARGE CAPACITY】- Our wire stripping tool has two different sized feeding holes, allowing wires in diameter 0.04"-0.79" (1mm~20mm), 2 mounting holes available. Blade can be adjusted up and down by twisting the regulating nut for cables in different sizes. Blade Thickness: 12mm(0.47"), Outer Diameter is 49.5mm(1.95") and Inner Diameter: 21mm(0.83")-26mm(1").
*【ADJUSTABLE POWER】- Speed can be changed by adjusting output voltage, Controller Output: DC 3~12V 5A, Controller Input: 110V 50-60Hz.
*【HANDLE&DRILL DRIVEN】- The cable stripper can be driven by starting an electric drill to power it for a convenient and fast working. Soft start design.
*【VARIOUS USES】- The electrical wire stripper machine is widely used in wiring harness processing, aerospace wire processing, audio and data line processing, wire recycling dismantling and other industries.
Description

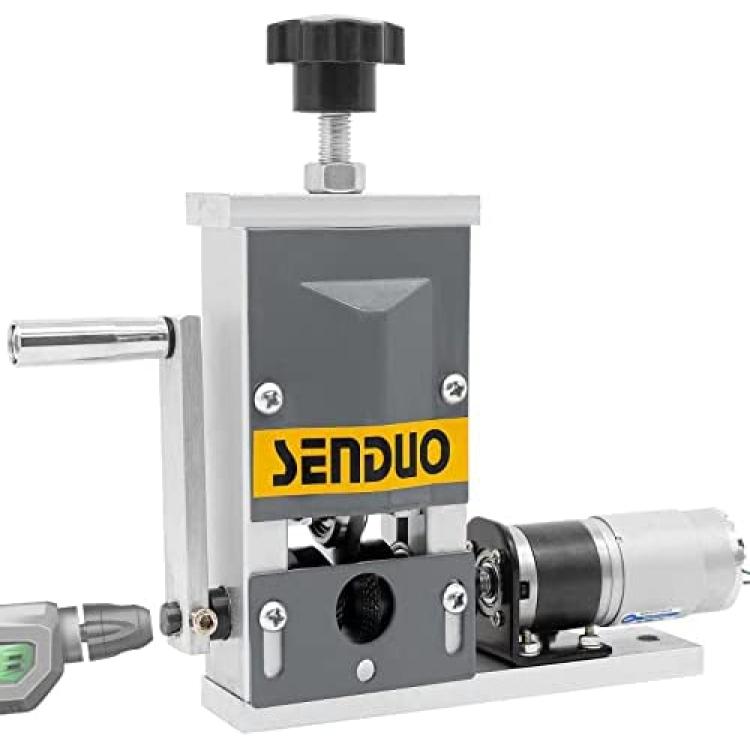

Automatic Electric Wire Stripping Machine w/ Wire Gauge Range: 0.04"-0.79" (1mm~20mm)
The automatic electric wire stripper is designed for stripping scrap copper wires. It's portable and energy saving, can be operated by starting a drill and winding a handle. Two different sized feeding holes and one blade allow your various needs. Wire Gauge Range: 0.04"-0.79" (1mm~20mm), high performance guaranteed. Easy to mount and use.

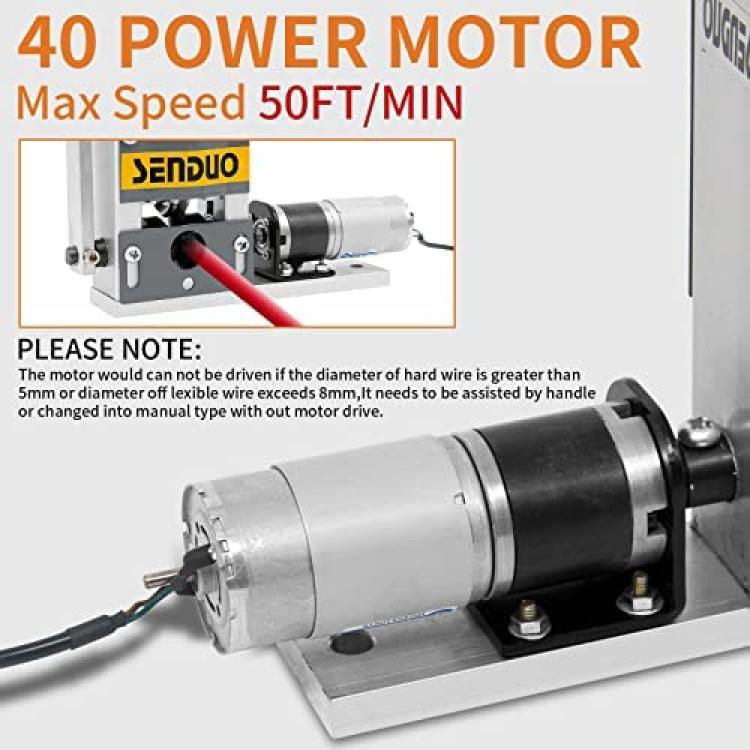

40W Motor
40W motor, 110V 60HZ. Made of durable aluminum alloy. Weight: 2.5kg( 5.51lbs). Easy to mount and use.

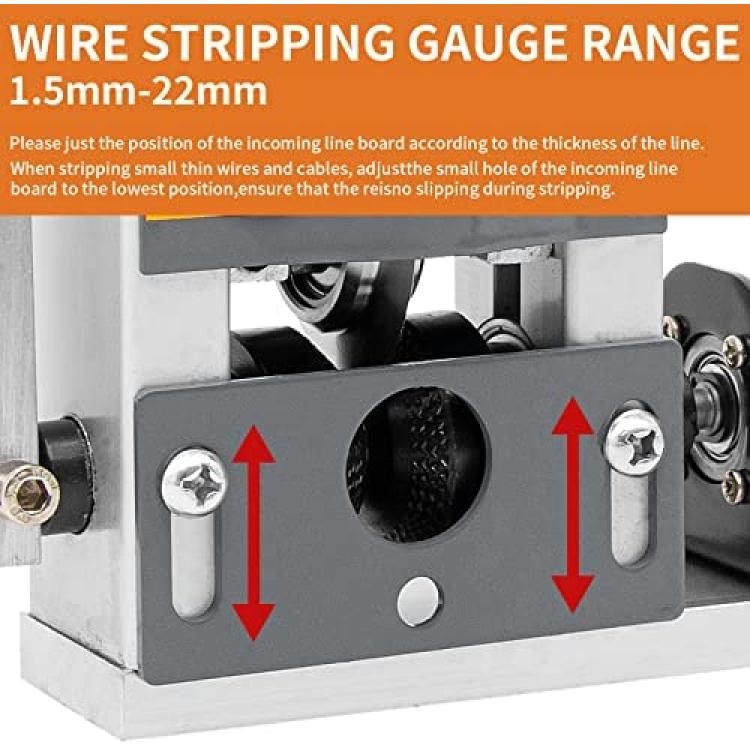

High Performance
Two different sized feed holes for wires in diameter range 0.04"-0.79" (1mm~20mm).

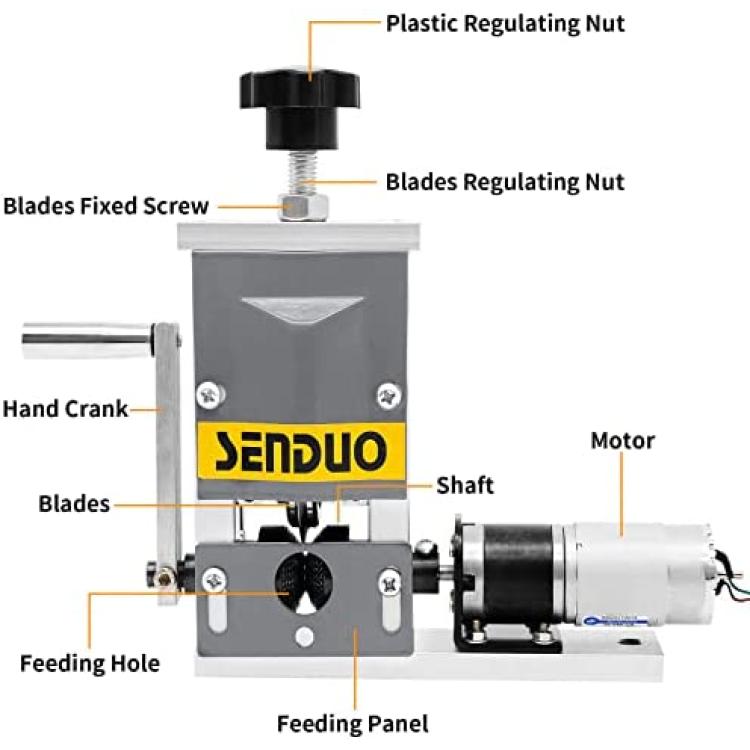

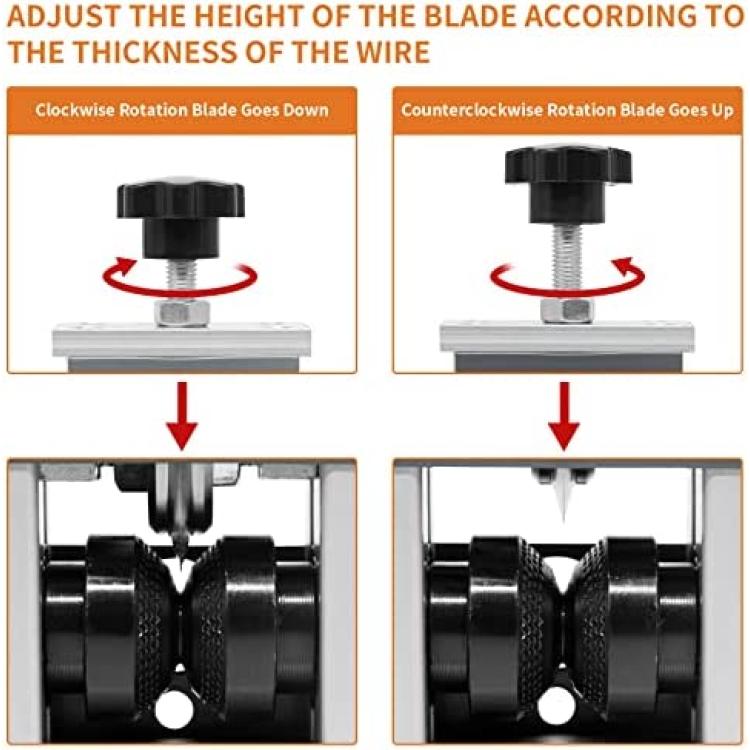

Adjustable Regulating Nut
To meet your work need, the distance between the blade and shaft can be changed by adjusting the regulating nut.
Power Adjustable
Controller Output: DC 3~12V 5A, adjustable power leads to adjustable speed for different needs.
Handle & Drill Driven
You can start you stripping work with a hand crank, or an electrical drill. Easy to use.Â
Widely Used
Remove the plastic and rubber insulation from undamaged scrap wire, and widely used in wiring harness processing, wire recycling dismantling, and other industries.
Specifications
Power: 40W
Controller Input: 110V 50-60Hz
Controller Output: DC 3~12V 5A
Wire Gauge Range: 0.04"-0.79" (1mm~20mm)
Blade Outer Diameter: 49.5mm(1.95")
Blade Inner Diameter: 21mm(0.83")-26mm(1")
Blade Thickness: 12mm(0.47")
Material: Aluminum Alloy
Size(LXWXH): 25X20X6.5cm(9.8"x7.8"x2.5")
Weight: 2.5kg( 5.51lbs)
Package Content
1 x Wire Cable Stripper
1 x Power Controller
1 x Holder
1 x Screw Set
