Calvas 433Mhz Wireless RF Switch DC12V Relay Receiver Wireless Remote Controls For DC Motor Forward and Reverse Controller - (Color: Remote Only KT05)

Calvas 433Mhz Wireless RF Switch DC12V Relay Receiver Wireless Remote Controls For DC Motor Forward and Reverse Controller
Application areas:
Lighting,Electric Door,Automated curtains, etc.

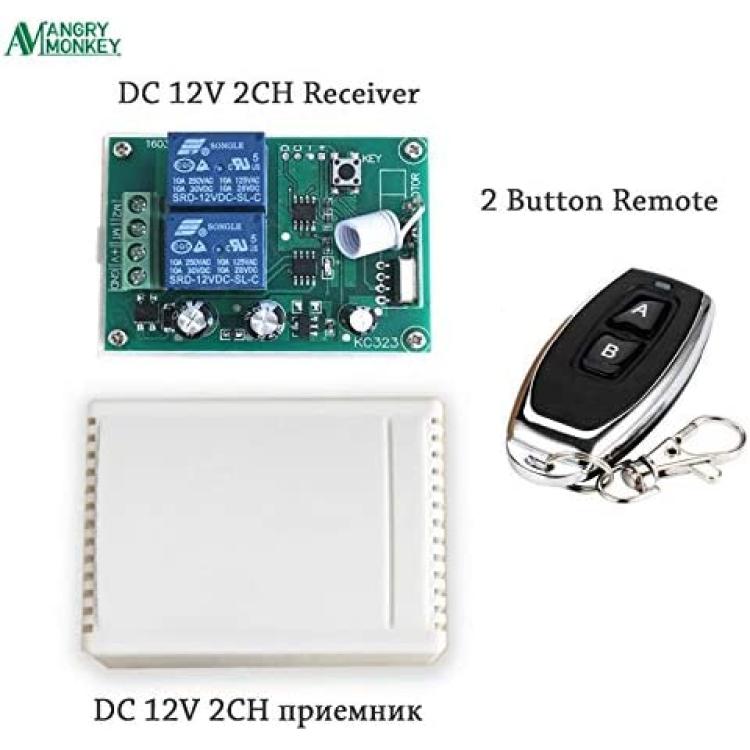

Order Package includes:(3 order model can be chosen)
Order Model 1:
DC1202 and KT05
Details:
Receiver Switch Module (DC1202): 1 Piece with Plastic Shell
Remote Control: 1 Pieces with Battery
Order Model 2:

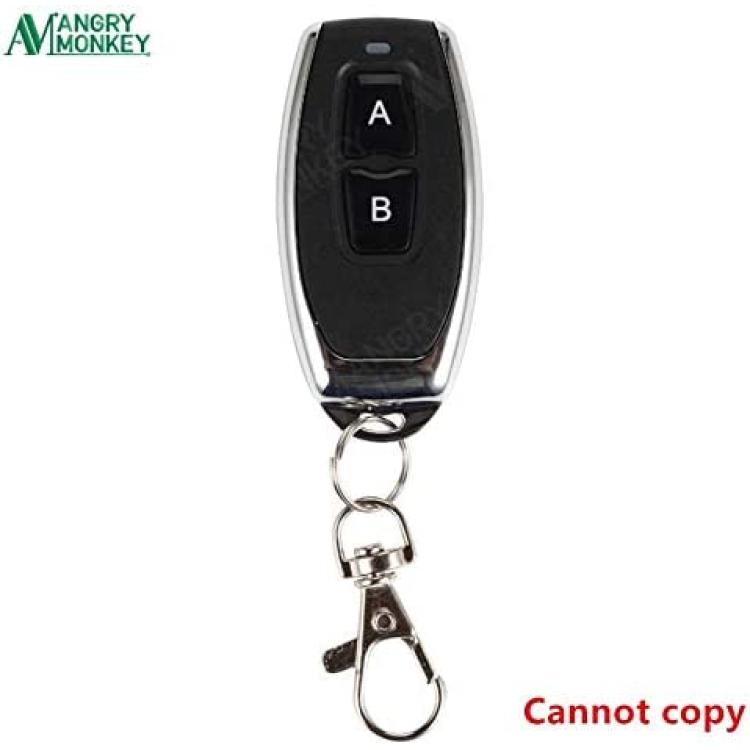

Remote Only KT05
Details:
Remote Control: 1 Pieces with Battery
Order Model 3:
DC1202 Receiver Only
Details:
Receiver Switch Module (DC1202) : 1Piece  with Plastic Shell
OUTPUT mode :

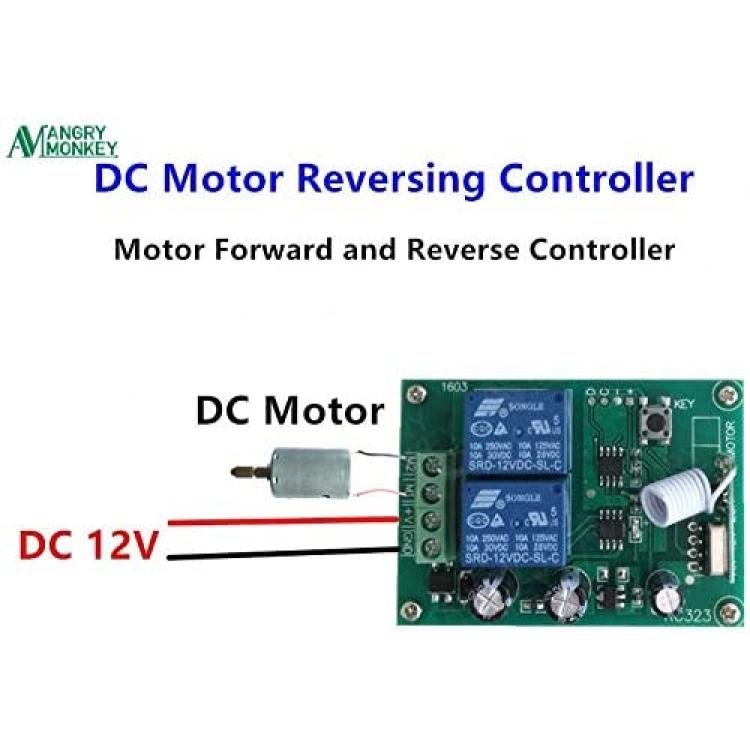

The outoput can only be 12V DC. It can be used to drive the 12V DC motor and LED light. Please check below Diagram for better understanding:
Wirting Diagram:
IMPORTANT INFORMATIONS:
You can match the Remote Control with the Receiver SwitchModule (KR1204-4) in 3 mode.
Remote mode 1: Momentary/Jog
Press and hold one key->ON. Release the key->OFF
Details:
Hold one key , the corresponding channel is working /ON.Then Release  your finger the channel turns to stop/OFF .
Remote Mode 2: Toggle/Self-Lock
Press one Key->ON. Press the same key again->OFF
Details:
Press one key once , the corresponding channel turn  working/ON.
Press the same key once again the same channel turn to stop/OFF .
How to set the remote mode:

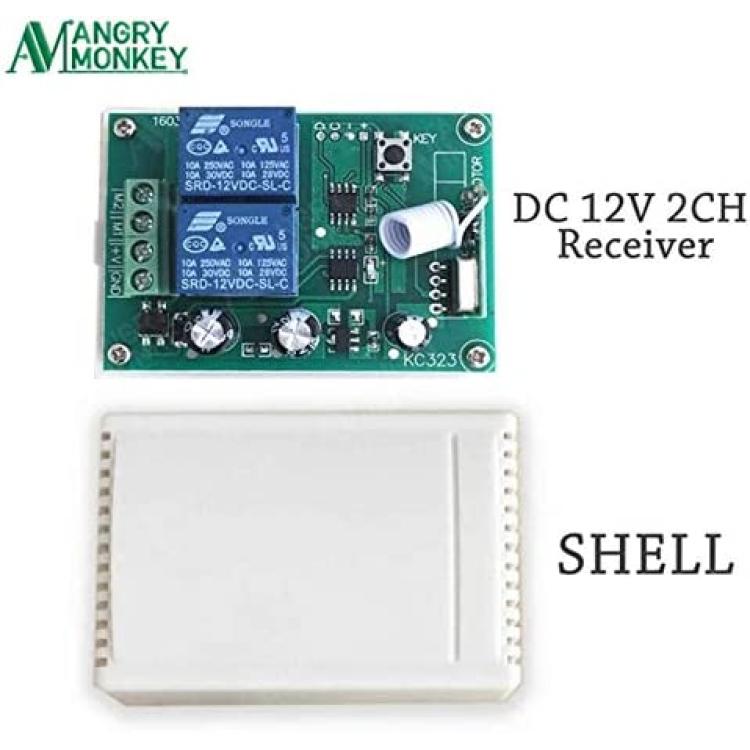

Please find the Learning Key of the Receiver Switch Module by checking below photo:
Note: When you receive the product, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to
Item specifics:
Support app: No
Package: Yes
Use: Electric Door,Automated curtains,Lighting,Universal
Model number: DC1202+KT05
Frequency: 433 MHz
Wireless communication: RF
Channel: 2
Application scene: Lighting,Electric Door,Automated curtain
