Calvas Garden Door Motor Smart Remote Control Switch DC 24V 10A 2CH RF Wireless Remote Control Switch System Transmitter Controller

Features:
1. This controller is controlled by intelligent microprocessor, which can be used in the control of garage door, lighting control, motor control, door control system, etc.
2. It has the features of simple installation and safety and reliability.
Specifications:
Operating voltage: DC 24V
Operating temperature: -40~80degrees
Operating frequency: 433MHZ
Receive sensitivity: ?-95dB
Remote control distance: 30-50m
Product size:
Switch size: approx. 75 x 52 x 30mm/2.95 x 2.05 x 1.18in
Controller size: approx. 50 x 30 x 12mm/1.97 x 1.18 x 0.47in
Product weight:
Control panel weight: approx. 58g
Wall switch weight: approx. 18g
Material: ABS
Working Mode: Self locking, point action and interlocking
Operation Manual:
Press the learn button for 2~3 seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 4 times to show the success of the study.
Note: The controller can learn the fixed code / learning code, total 16 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control.
Removal method:
Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.
Work mode switching:
Connect a 12v dc output: the learning of the single remote control switch 12v input, connect a 12v dc power supply, the output from 12v positive public end, often beginning the positive on the output side of the light bulb, the bulb of the cathode received power of the cathode, a simple control light bulb circuit is designed.

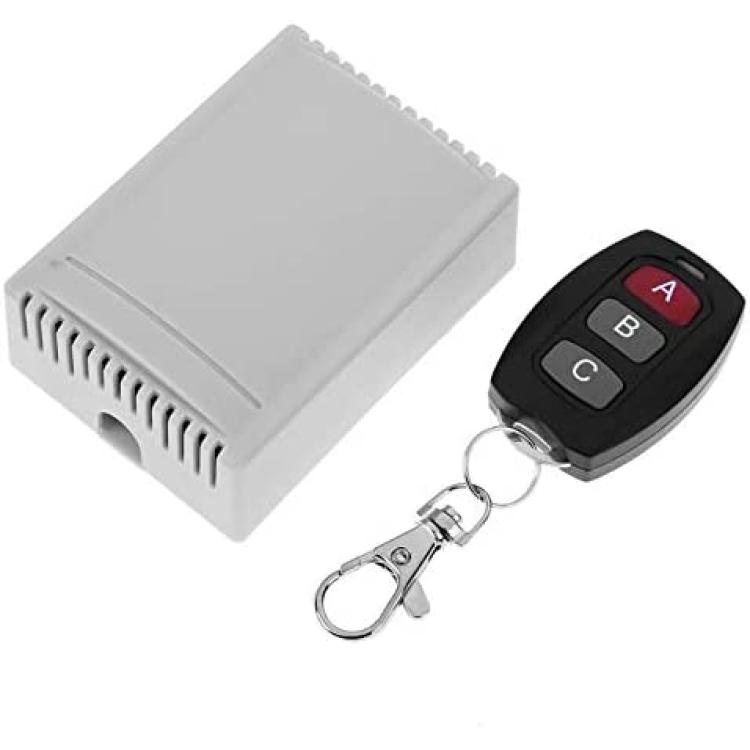

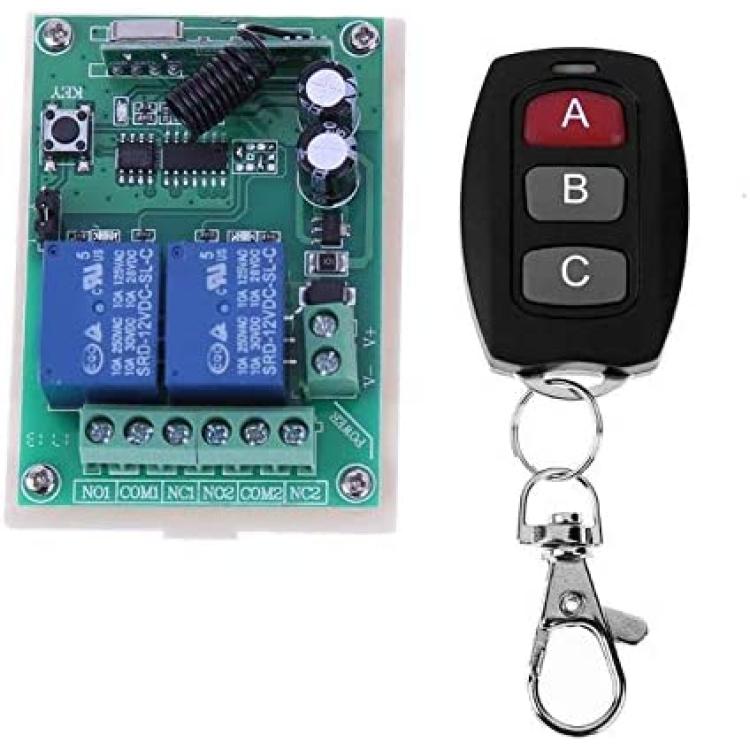

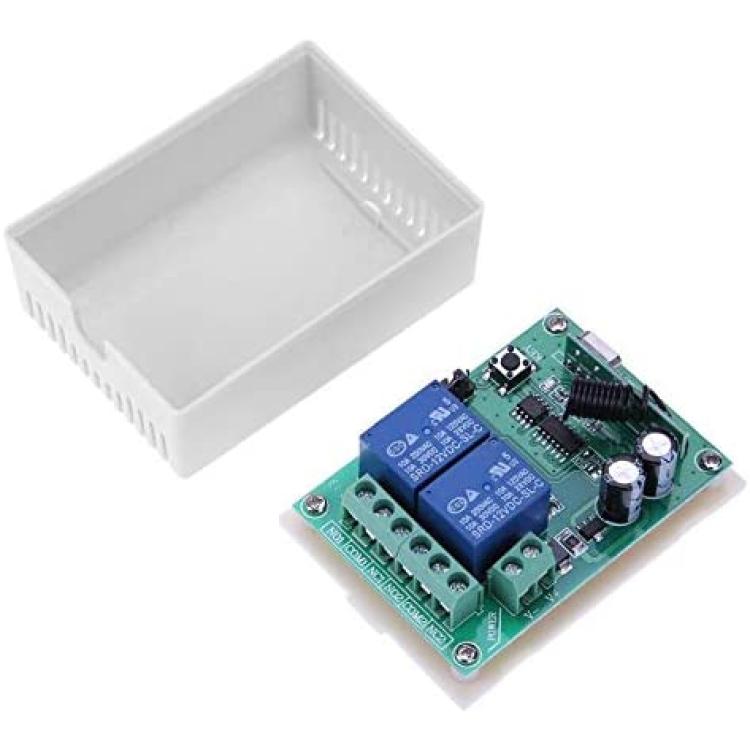

1 x DC 24V Intelligent Two Channel Controller

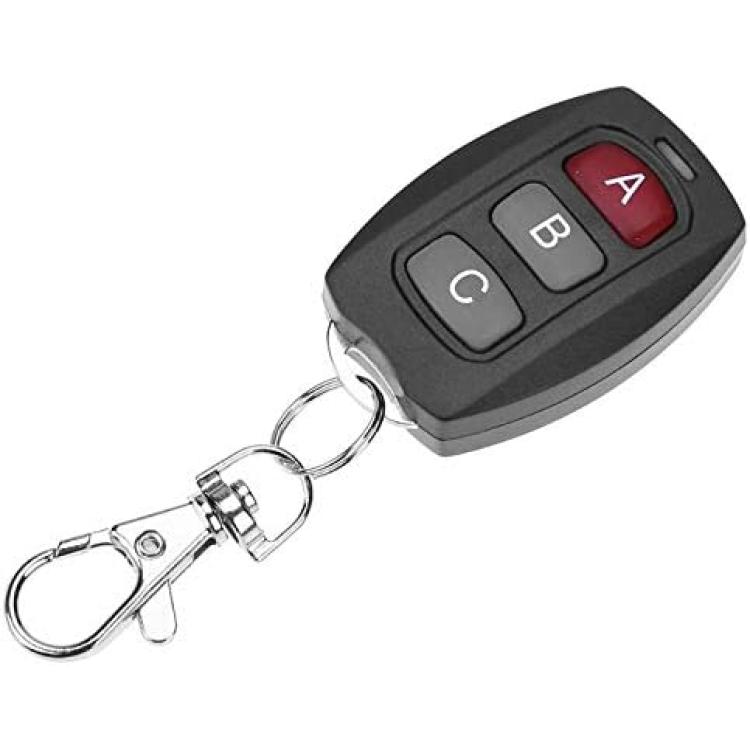

1 x 3 Key Remote Control
1.
4. The images shown are not the actual item and are for your reference only.
