Davitu Motor Protectors - At Line Soft Start Cabinet A Main Board Soft Starter Chinese Numbers 5.5-600kw Controller Repair Assemble General Purpose - (Color: Right angle bare boa)

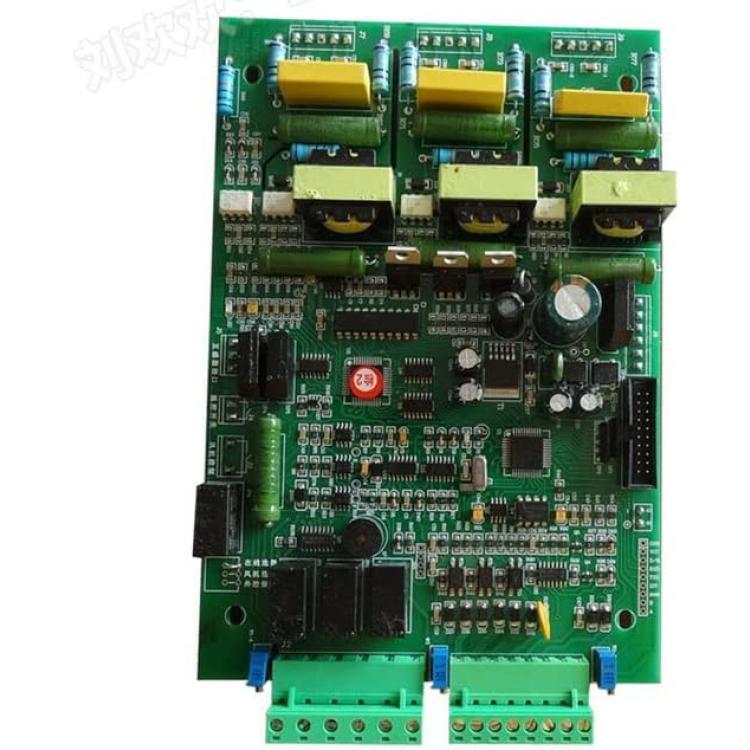

Soft starter circuit board
Soft start universal control board
The store provides a large number of long-term supply: soft starter, soft starter universal control board (online and external bypass) motherboard 5.5KW to 600KW universal also has supporting thyristor, circuit board, current transformer panel power transformer, radiator, fan , soft switch and other soft start all accessories for sale!
[Three anti-paint process] (with excellent moisture, leakage, dustproof performance), in the place where the dust is relatively large, for your safe production, please choose the circuit board and soft starter with three anti-paint process.
Remarks: soft start 7.5Kw to 75Kw current sampling power resistor with 6 watts 10 ohms, 90Kw to 600Kw with 10 watts 2 ohms! The resistance position is green in the lower left corner of the board!
The motherboard setting parameters are as follows

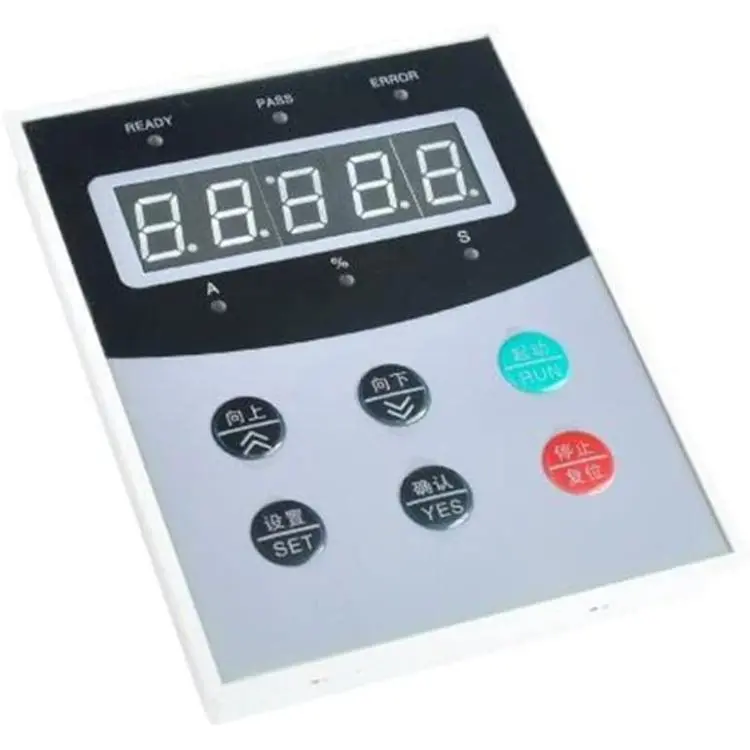

The Chinese display parameter setting code is as follows:
Setting code description
Code
Name
Setting range
Factory value
Description
F0
Starting voltage
30-70%
40%
The voltage ramp mode is active. the   current mode starting voltage is 40%
F1
Soft start time
2-60S
16S
Voltage mode is valid
F2
Soft stop time
0-60S
0S
Set to 0 to freely stop. Set to 0 when   one for two wiring
F3
Start delay
0-999S
0S
When the delay is set to 0 by the   countdown method, it will start immediately without delay.
F4
Programming delay
0-999S*
0S
For programmable relay output
F5
Start limit current
50-500%
280%
Flow mode is valid. Voltage ramp mode   current limit value is up to 400%
F6
Maximum operating current
50-200%*
100%
For the value of the rated current FP
F7
Undervoltage protection
50-90%
80%
Protected at set value, 49% closed
F8
Overvoltage protection
100-130%
120%
Protected at set val
